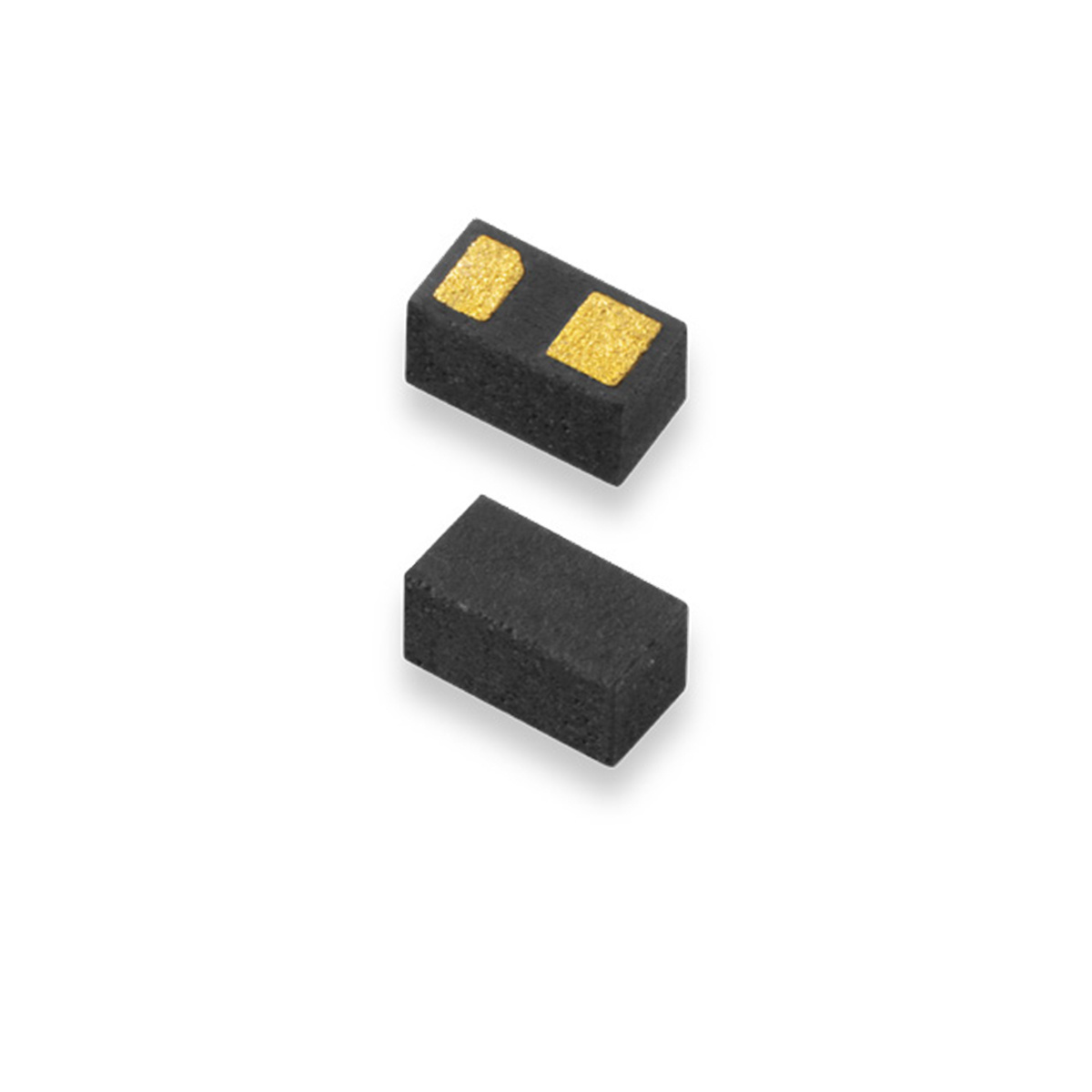

AQ1205-01UTG Series

4.5V 7A 30kV 7pF 0201DFN Diode Array

Catalog

4.5V 7A 30kV 7pF 0201DFN Diode Array

Part	Mounting Type	Package Name	Voltage - Reverse Standoff (Max)	Type	Capacitance	Bidirectional Channels	Package / Case	Qualification	Voltage - Clamping (Max) (Typ)	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Breakdown (Min)	Grade	Current - Peak Pulse	Power Line Protection
LITTELFUSE AQ1205-01UTG	Surface Mount	0201	4.5 V	Zener	7 pF	1	0201 (0603 Metric)	AEC-Q101	10 V	-40 °C	150 °C	5 V	Automotive	7 A	No

Catalog

4.5V 7A 30kV 7pF 0201DFN Diode Array

Description

The AQ1205-01UTG bidirectional TVS is fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment. The AQ1205-01UTG TVS can safely absorb repetitive ESD strikes of ±30 kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. In addition, it can safely dissipate a 7 A 8/20 μs surge event as defined in IEC 61000-4-5, 2nd edition.
