LQM2HPZ Series

Catalog

INDUCTOR POWER CHIP SHIELDED MULTI-LAYER 2.2UH 20% 1MHZ FERRITE 1.3A 0.1OHM DCR 1008 T/R AUTOMOTIVE AEC-Q200

Part	Ratings	Frequency - Self Resonant	DC Resistance (DCR)	Material - Core	Size / Dimension Width	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Inductance Frequency - Test	Package / Case	Height - Seated (Max)	Shielding	Tolerance	Mounting Type	Package Name	Supplier Device Package	Type	Inductance	Current Rating	Package Width	Package Length
Murata Electronics LQM2HPZ2R2MG0L	AEC-Q200	40 MHz	80 mOhm	Ferrite	0.079 in	0.098 in	125 °C	-55 °C	1 MHz	1008 (2520 Metric)	0.039 in	Unshielded	20 %	Surface Mount	2520	2520	Multilayer	2.2 µH	1.3 A
Murata Electronics LQM2HPZ1R0MG0L	AEC-Q200	60 MHz	55 mOhm	Ferrite	0.079 in	0.098 in	125 °C	-55 °C	1 MHz	1008 (2520 Metric)	0.039 in	Unshielded	20 %	Surface Mount	2520	2520	Multilayer	1 µH	1.6 A
Murata Electronics LQM2HPZR56ME0L
Murata Electronics LQM2HPZ2R2MJ0L	AEC-Q200	40 MHz	120 mOhm	Ferrite	0.079 in	0.098 in	125 °C	-55 °C	100 MHz	1008 (2520 Metric)	0.047 in	Shielded	20 %	Surface Mount	1008 1008 (2520 Metric)		Multilayer	2.2 µH	1 A	2 mm	2.5 mm

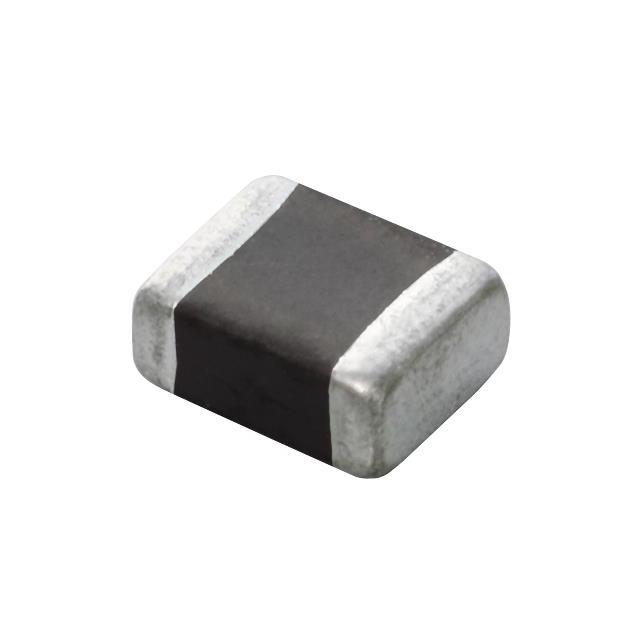

Murata Electronics LQM2HPZ1R0MJ0L
Murata Electronics LQM2HPZ4R7MG0L	AEC-Q200	25 MHz	110 mOhm	Ferrite	0.079 in	0.098 in	125 °C	-55 °C	1 MHz	1008 (2520 Metric)	0.039 in	Unshielded	20 %	Surface Mount	2520	2520	Multilayer	4.7 µH	1.1 A
Murata Electronics LQM2HPZ3R3MG0L	AEC-Q200	30 MHz	100 mOhm	Ferrite	0.079 in	0.098 in	125 °C	-55 °C	1 MHz	1008 (2520 Metric)	0.039 in	Unshielded	20 %	Surface Mount	2520	2520	Multilayer	3.3 µH	1.2 A
Murata Electronics LQM2HPZ2R2MGSL	AEC-Q200	40 MHz	180 mOhm	Ferrite	0.079 in	0.098 in	125 °C	-55 °C	1 MHz	1008 (2520 Metric)	0.039 in	Unshielded	20 %	Surface Mount	2520	2520	Multilayer	2.2 µH	1.1 A
Murata Electronics LQM2HPZ3R3MGSL	AEC-Q200	20 MHz	210 mOhm	Ferrite	0.079 in	0.098 in	125 °C	-55 °C	1 MHz	1008 (2520 Metric)	0.039 in	Unshielded	20 %	Surface Mount	2520	2520	Multilayer	3.3 µH	1.05 A
Murata Electronics LQM2HPZ1R5MG0L	AEC-Q200	50 MHz	70 mOhm	Ferrite	0.079 in	0.098 in	125 °C	-55 °C	1 MHz	1008 (2520 Metric)	0.039 in	Unshielded	20 %	Surface Mount	2520	2520	Multilayer	1.5 µH	1.5 A
