282842 Series

Catalog

TERM BLK 8P SIDE ENTRY 10MM PCB

Part	Housing Material	Contact Material	Plating	Torque - Screw	Clamp Material	Clamp Plating	Screw Material	Screw Plating	Screw Thread	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Voltage	Pitch	Wire Termination	Mating Orientation	Mounting Type	Color	Positions Per Level	Current	Features	Number of Levels
TE Connectivity AMP Connectors 282842-8	Nylon 6/6 PA66 Polyamide	Brass	Tin Plated	0.79 Nm	Brass	Nickel Plated	Brass	Nickel Plated	M3	12 AWG	30 AWG	600 V	0.394 in	Rising Cage Clamp Screw	Horizontal with Board	Through Hole	Green	8	17.5 A	Interlocking (Side)	1
TE Connectivity AMP Connectors 282842-3	Nylon 6/6 PA66 Polyamide	Brass	Tin Plated	0.79 Nm	Brass	Nickel Plated	Brass	Nickel Plated	M3	12 AWG	30 AWG	600 V	0.394 in	Rising Cage Clamp Screw	Horizontal with Board	Through Hole	Green	3	17.5 A	Interlocking (Side)	1

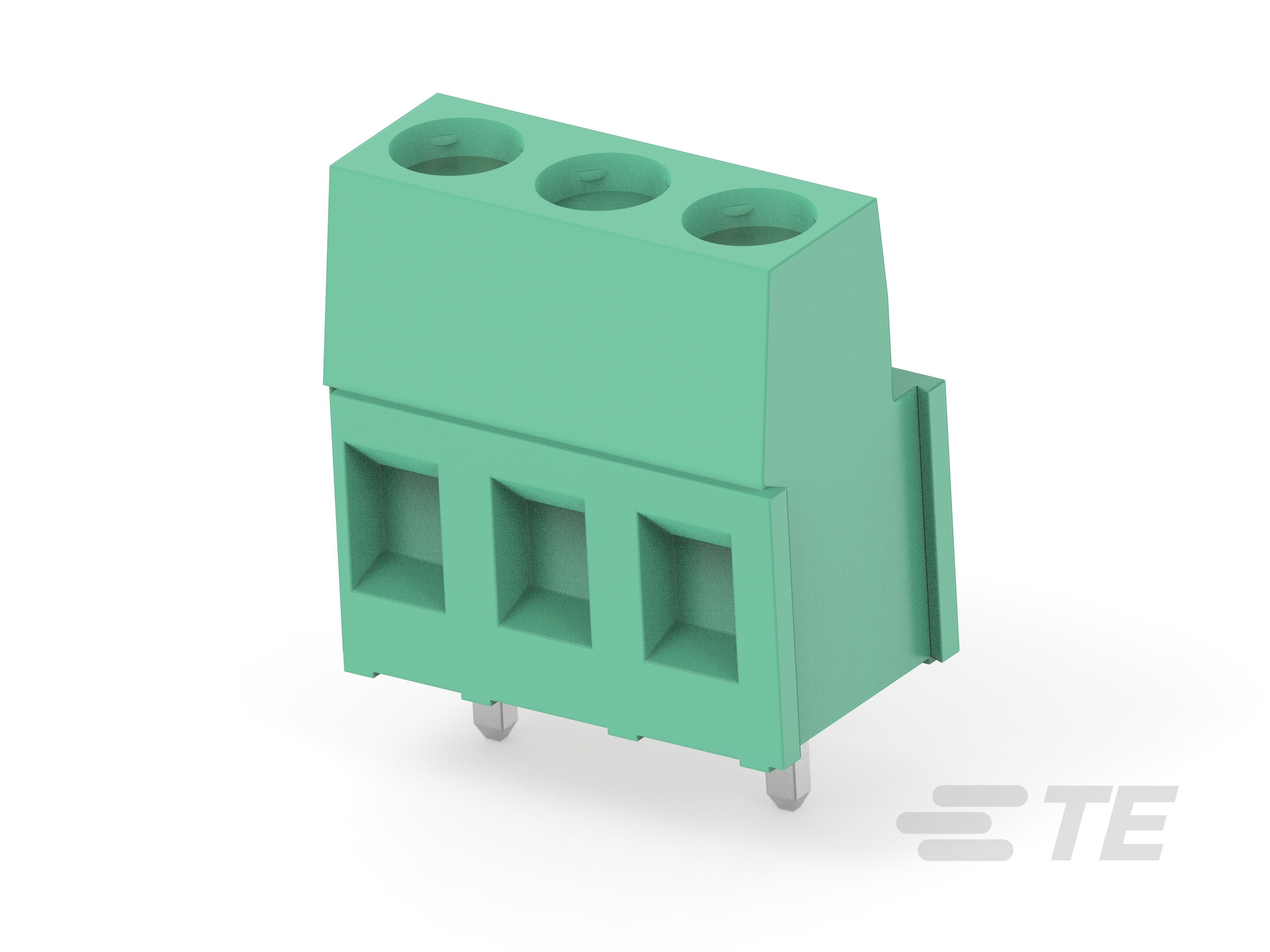

TE Connectivity AMP Connectors 282842-2	Nylon 6/6 PA66 Polyamide	Brass	Tin Plated	0.79 Nm	Brass	Nickel Plated	Brass	Nickel Plated	M3	12 AWG	30 AWG	600 V	0.394 in	Rising Cage Clamp Screw	Horizontal with Board	Through Hole	Green	2	17.5 A	Interlocking (Side)	1
