1776293 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PANEL MOUNT BARRIER TERMINAL BLOCK, 2 ROW, 2 POSITIONS, 26 AWG, 12 AWG, 8 MM, 30 A

Part	Number of Wire Entries	Current Rating	Top Termination	Bottom Termination	Number of Rows	Pitch	Number of Circuits	Voltage Rating	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Terminal Block Type	Color	Barrier Type	Terminal Screw Material	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Terminal Screw Finish	Mounting Type	Material - Insulation
TE Connectivity AMP Connectors 1776293-2	4	30 A	Screws	Closed	2	0.315 in	2	250 V	12 AWG	22 AWG	Eurostyle Terminal Strip	Natural	Enclosed	Steel	UL94 V-2	100 °C	-35 °C	Non-Hexavalent Chromate Zinc	Chassis Panel	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 1776293-5	10	30 A	Screws	Closed	2	0.315 in	5	250 V	12 AWG	22 AWG	Eurostyle Terminal Strip	Natural	Enclosed	Steel	UL94 V-2	100 °C	-35 °C	Non-Hexavalent Chromate Zinc	Chassis Panel	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 1776293-9	18	30 A	Screws	Closed	2	0.315 in	9	250 V	12 AWG	22 AWG	Eurostyle Terminal Strip	Natural	Enclosed	Steel	UL94 V-2	100 °C	-35 °C	Non-Hexavalent Chromate Zinc	Chassis Panel	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 1776293-6	12	30 A	Screws	Closed	2	0.315 in	6	250 V	12 AWG	22 AWG	Eurostyle Terminal Strip	Natural	Enclosed	Steel	UL94 V-2	100 °C	-35 °C	Non-Hexavalent Chromate Zinc	Chassis Panel	Nylon 6/6 PA66 Polyamide

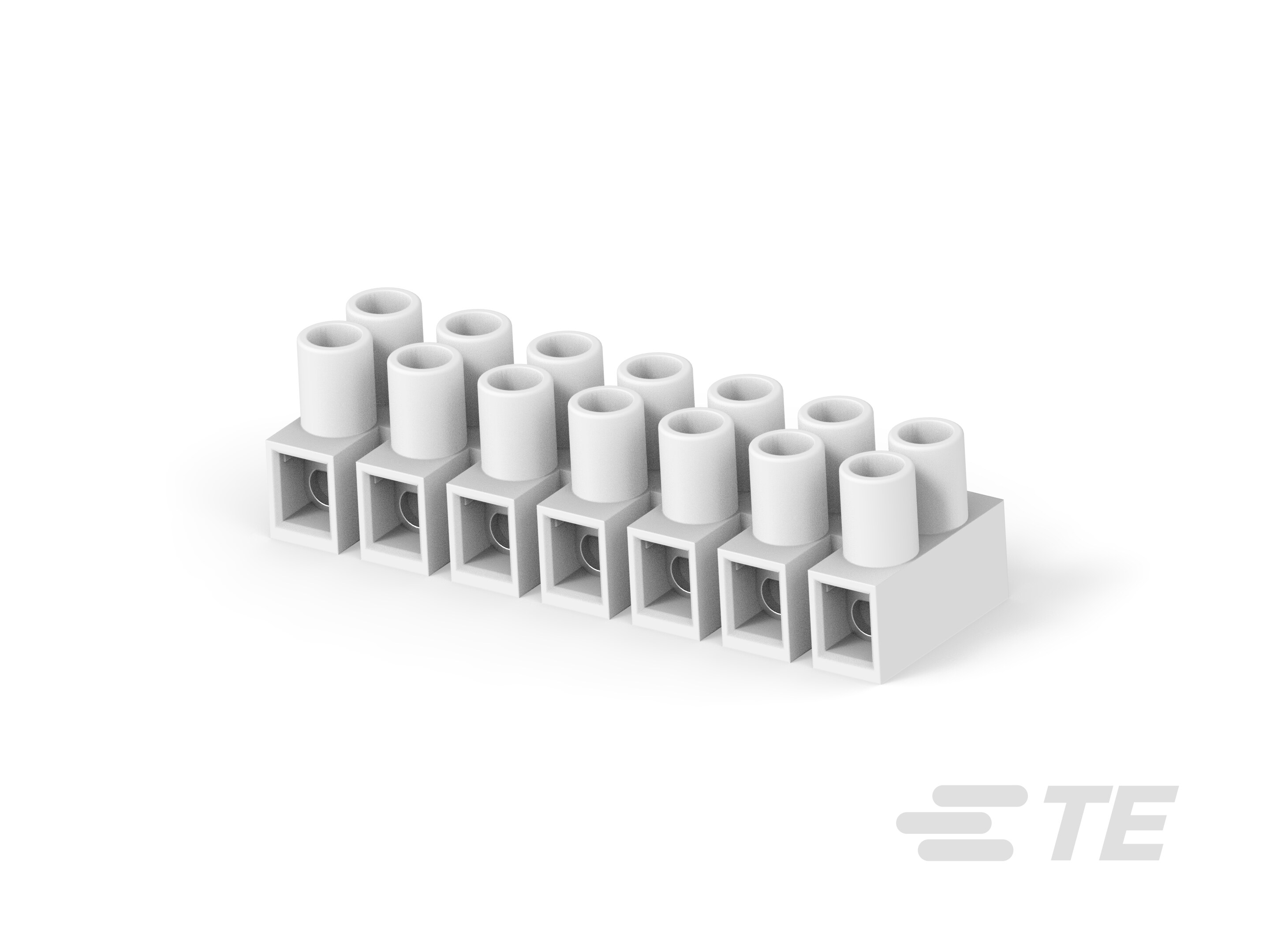

TE Connectivity AMP Connectors 1776293-7	14	30 A	Screws	Closed	2	0.315 in	7	250 V	12 AWG	22 AWG	Eurostyle Terminal Strip	Natural	Enclosed	Steel	UL94 V-2	100 °C	-35 °C	Non-Hexavalent Chromate Zinc	Chassis Panel	Nylon 6/6 PA66 Polyamide

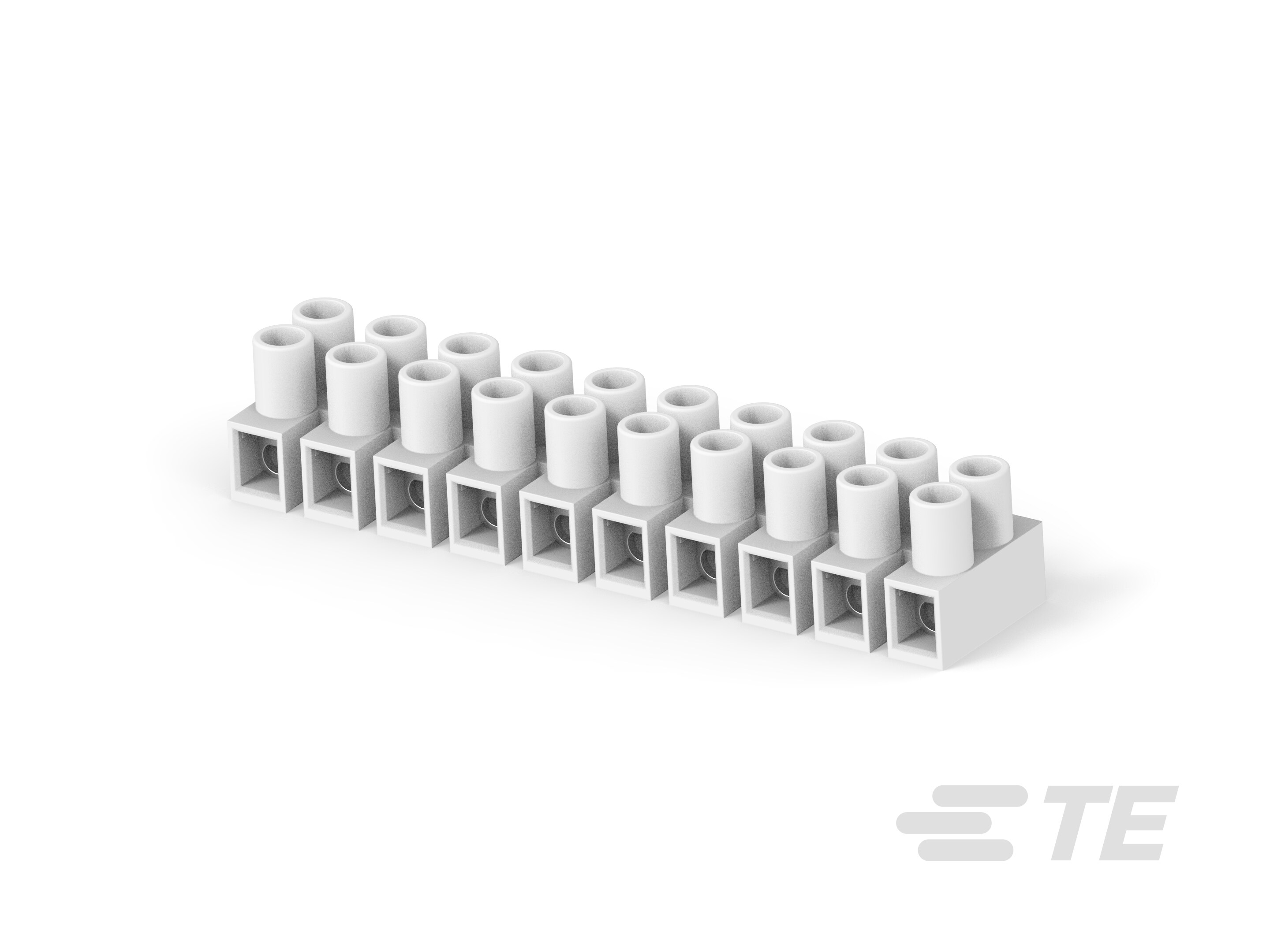

TE Connectivity AMP Connectors 1-1776293-0	20	30 A	Screws	Closed	2	0.315 in	10	250 V	12 AWG	22 AWG	Eurostyle Terminal Strip	Natural	Enclosed	Steel	UL94 V-2	100 °C	-35 °C	Non-Hexavalent Chromate Zinc	Chassis Panel	Nylon 6/6 PA66 Polyamide
