DCNHR150QFA Series

DCNHR 150A 450V P Aux 9-36Vcoil

Catalog

DCNHR 150A 450V P Aux 9-36Vcoil

Part	Mounting Type	Features	Termination Style	Coil Voltage (Max)	Coil Voltage (Min)	Operating Temperature (Min)	Operating Temperature (Max)	Contact Rating (Current)	Form A Count	Contact Form	Switching Voltage DC (Max)	Must Release Voltage	Must Operate Voltage
LITTELFUSE DCNHR150QFA	Chassis Mount	Auxiliary Contacts	Stud Wire Leads	36 VDC	9 VDC	-40 °C	85 °C	150 A	1	SPST-NO	900 VDC	6 VDC	9 VDC

Catalog

DCNHR 150A 450V P Aux 9-36Vcoil

Description

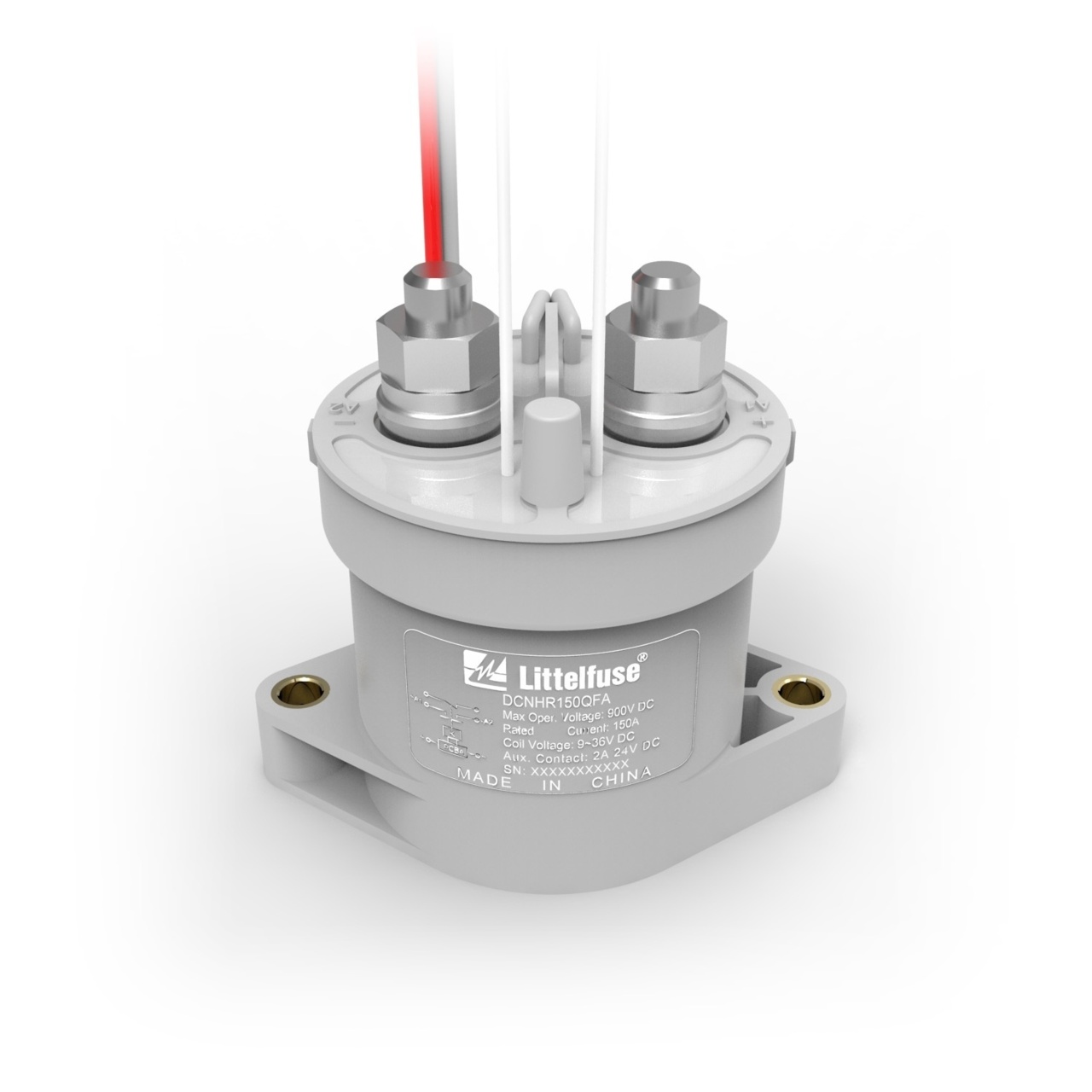

The DCNHR Series 900V Max High-Current High-Voltage DC Contactor Relay is a normally open (also known as monostable) PWM relay with a resin body for corrosion resistance in harsh automotive environments. Sealed contacts help ensure there is no leakage of electrical arc for safety. The high-current relay's permanent magnet blows the magnetic field horizontally to achieve a high-voltage DC cutoff.This DCNHR Series contactor relay (DCNHR150QFA) is for 150A contact switching. It includes an auxiliary contact and features polarized main contacts.
