78M6631 Series

Catalog

IC POWER MEAS/MON 3 PHASE 56TQFN

Part	Package Width	Package Name	Package Length	Mounting Type	Package / Case	Voltage - I/O Low	Current - Supply	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Input Impedance (Min)	Input Impedance (Max)	Measurement Error	Meter Type	Voltage - I/O High	Operating Temperature (Min)	Operating Temperature (Max)	Supplied Contents	Function	Type	Contents	Utilized IC / Part
Analog Devices Inc./Maxim Integrated 78M6631-IMR/F	7 mm	56-TQFN	7 mm	Surface Mount	56-WFQFN Exposed Pad	0.8 V	9.1 mA	3.6 V	3 V	40 kOhm	90 kOhm	0.5 %	3 Phase	2 V	-40 °C	85 °C
Analog Devices Inc./Maxim Integrated 78M6631-IM/F/P2	8 mm	68-SQFN	8 mm	Surface Mount	68-VFQFN Exposed Pad	0.8 V	9.1 mA	3.6 V	3 V	40 kOhm	90 kOhm	0.5 %	3 Phase	2 V	-40 °C	85 °C
Analog Devices Inc./Maxim Integrated 78M6631-IMR/F/P48	7 mm	56-TQFN	7 mm	Surface Mount	56-WFQFN Exposed Pad	0.8 V	9.1 mA	3.6 V	3 V	40 kOhm	90 kOhm	0.5 %	3 Phase	2 V	-40 °C	85 °C

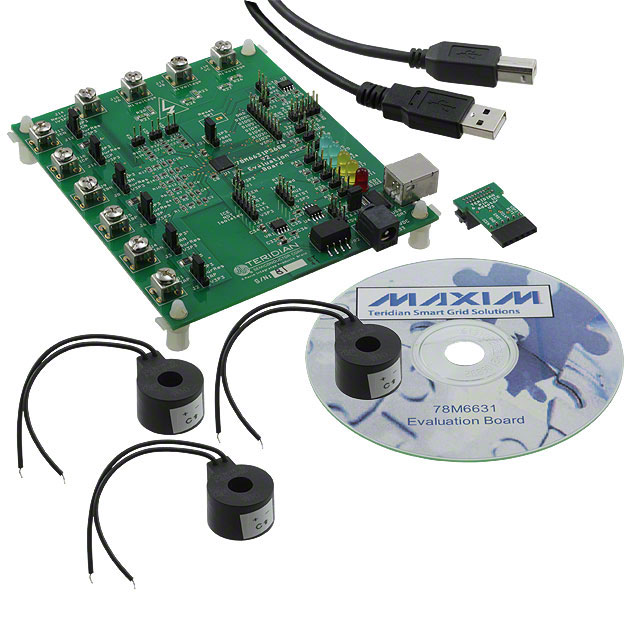

Analog Devices Inc./Maxim Integrated 78M6631-EVM-1																	Board(s) Cable(s)	Energy Power Meter	Power Management	Board Cable	78M6631
Analog Devices Inc./Maxim Integrated 78M6631-IM/F	7 mm	56-TQFN	7 mm	Surface Mount	56-WFQFN Exposed Pad	0.8 V	9.1 mA	3.6 V	3 V	40 kOhm	90 kOhm	0.5 %	3 Phase	2 V	-40 °C	85 °C
