A3AAH Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE - ASC40H/AE40M/ASC40H

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Positions	Pitch - Cable	Pitch - Cable	Shielding	Connector Type	Pitch - Connector	Pitch - Connector	Contact Finish	Color	Length	Length	Length	Cable Termination	Length [x]	Length [x]
TE Connectivity Raychem Cable Protection A3AAH-4006M	15 µin	0.38 µm	2	40	0.05 "	1.27 mm	Unshielded	Socket to Socket	0.1 in	2.54 mm	Gold	Multiple Ribbon	152.4 mm	6 "	0.5 '	IDC

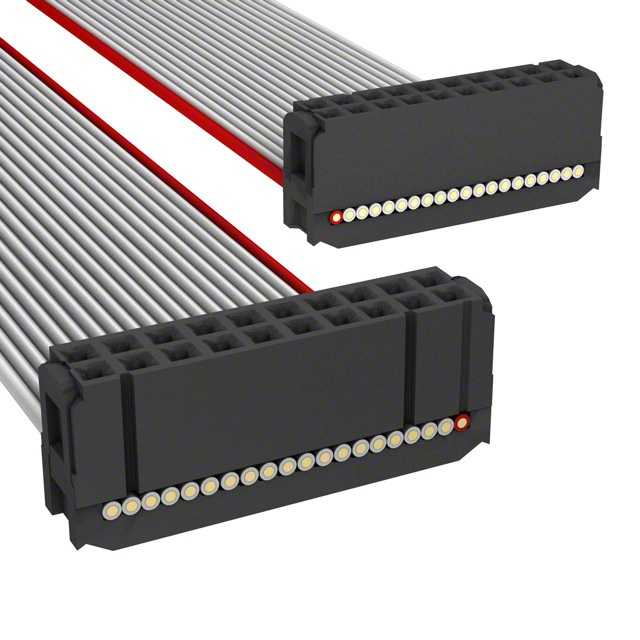

TE Connectivity Raychem Cable Protection A3AAH-2018G	15 µin	0.38 µm	2	20	0.05 "	1.27 mm	Unshielded	Socket to Socket	0.1 in	2.54 mm	Gold					IDC	457.2 mm	1.5 ft

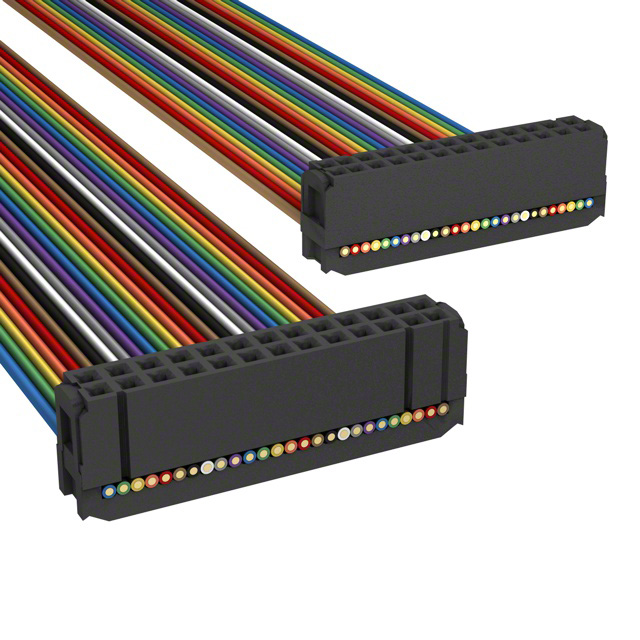

TE Connectivity Raychem Cable Protection A3AAH-2636M	15 µin	0.38 µm	2	26	0.05 "	1.27 mm	Unshielded	Socket to Socket	0.1 in	2.54 mm	Gold	Multiple Ribbon				IDC	914.4 mm	3 ft
TE Connectivity Raychem Cable Protection A3AAH-4018G	15 µin	0.38 µm	2	40	0.05 "	1.27 mm	Unshielded	Socket to Socket	0.1 in	2.54 mm	Gold					IDC	457.2 mm	1.5 ft

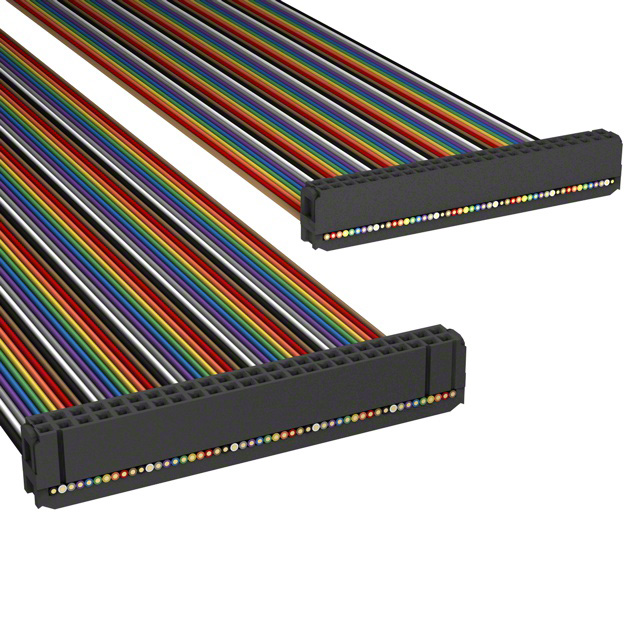

TE Connectivity Raychem Cable Protection A3AAH-5006M	15 µin	0.38 µm	2	50	0.05 "	1.27 mm	Unshielded	Socket to Socket	0.1 in	2.54 mm	Gold	Multiple Ribbon	152.4 mm	6 "	0.5 '	IDC
TE Connectivity Raychem Cable Protection A3AAH-3018G	15 µin	0.38 µm	2	30	0.05 "	1.27 mm	Unshielded	Socket to Socket	0.1 in	2.54 mm	Gold					IDC	457.2 mm	1.5 ft
TE Connectivity Raychem Cable Protection A3AAH-5018G	15 µin	0.38 µm	2	50	0.05 "	1.27 mm	Unshielded	Socket to Socket	0.1 in	2.54 mm	Gold					IDC	457.2 mm	1.5 ft

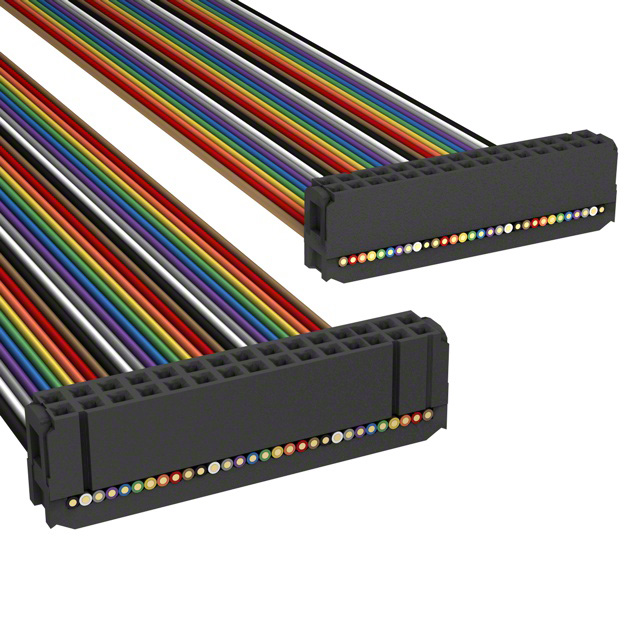

TE Connectivity Raychem Cable Protection A3AAH-3036M	15 µin	0.38 µm	2	30	0.05 "	1.27 mm	Unshielded	Socket to Socket	0.1 in	2.54 mm	Gold	Multiple Ribbon				IDC	914.4 mm	3 ft
TE Connectivity Raychem Cable Protection A3AAH-2606M	15 µin	0.38 µm	2	26	0.05 "	1.27 mm	Unshielded	Socket to Socket	0.1 in	2.54 mm	Gold	Multiple Ribbon	152.4 mm	6 "	0.5 '	IDC
TE Connectivity Raychem Cable Protection A3AAH-5006G	15 µin	0.38 µm	2	50	0.05 "	1.27 mm	Unshielded	Socket to Socket	0.1 in	2.54 mm	Gold		152.4 mm	6 "	0.5 '	IDC
