2029181 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

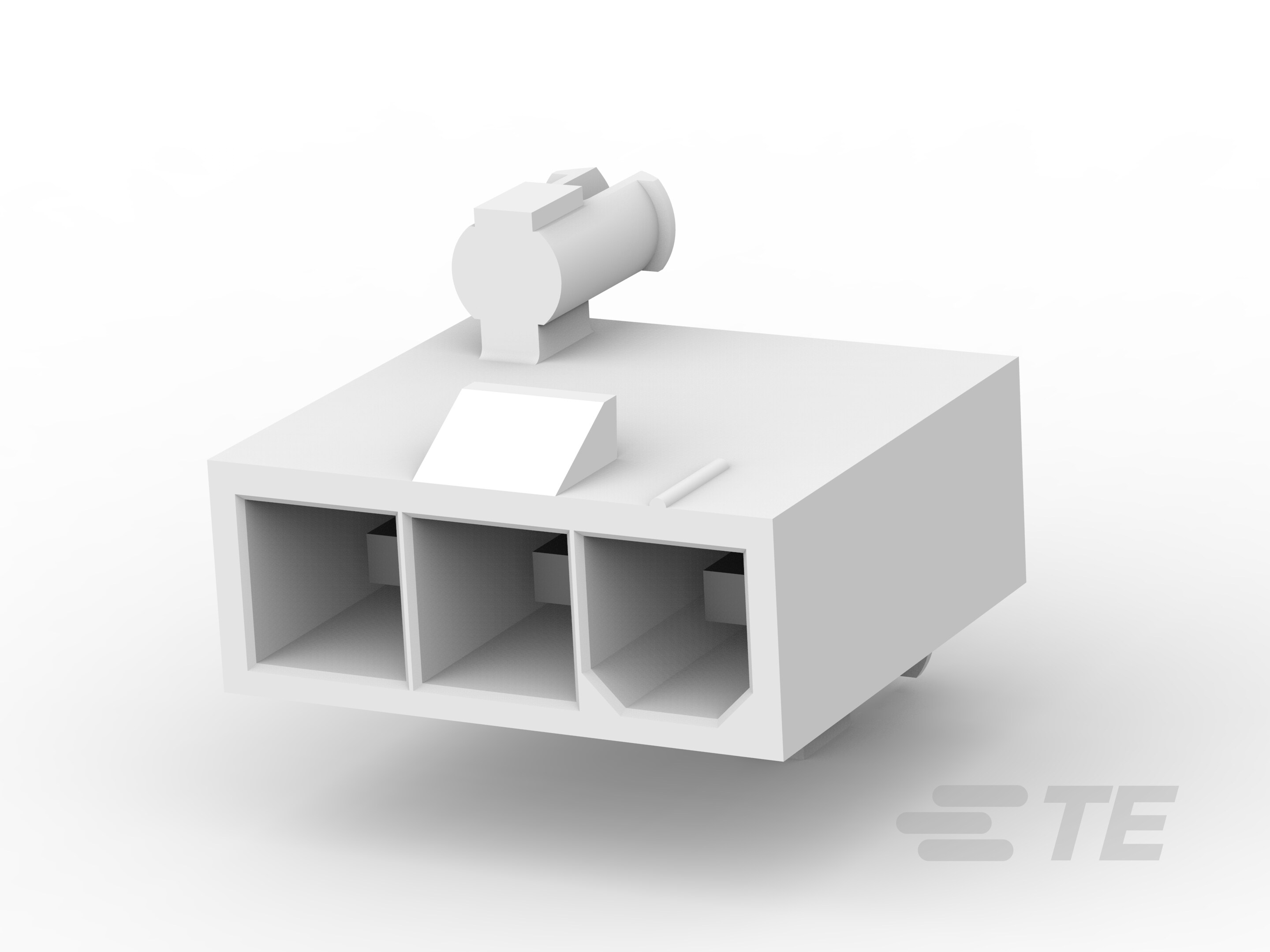

3P VAL-U-LOK VRTHDR W/PGS GW
| Part | Contact Finish - Post | Features | Contact Finish - Mating | Contact Shape | Shrouding | Connector Type | Style | Contact Material | Insulation Color | Insulation Height | Operating Temperature (Min) | Operating Temperature (Max) | Termination | Contact Type | Contact Length - Post | Current Rating | Number of Positions Loaded | Material Flammability Rating | Mounting Type | Insulation Material | Pitch - Mating | Voltage Rating | Number of Rows | Number of Positions | Fastening Type | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Tin | Board Lock Glow Wire Compliant | Tin | Square | Shrouded - 4 Wall | Header | Board Cable/Wire | Brass | Natural | 0.504 in | -40 °C | 105 °C | Solder | Male Pin | 0.138 in | 9 A | All | UL94 V-0 | Through Hole | Glass Filled Nylon 6/6 Polyamide (PA66) | 0.165 in | 600 V | 1 | 3 | Locking Ramp | General Purpose Industrial Lighting |

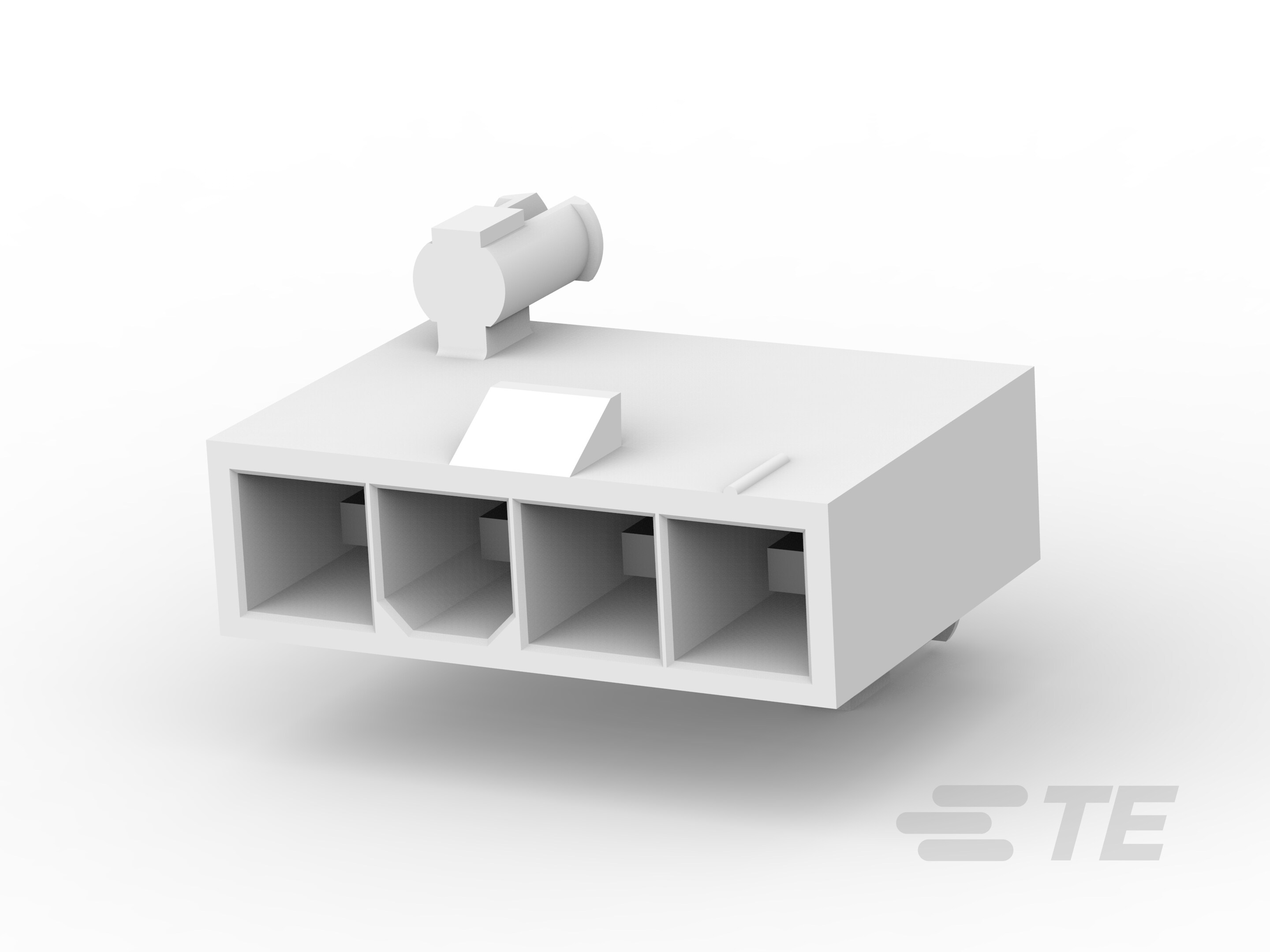

 TE Connectivity AMP Connectors | Tin | Board Lock Glow Wire Compliant | Tin | Square | Shrouded - 4 Wall | Header | Board Cable/Wire | Brass | Natural | 0.504 in | -40 °C | 105 °C | Solder | Male Pin | 0.138 in | 9 A | All | UL94 V-0 | Through Hole | Glass Filled Nylon 6/6 Polyamide (PA66) | 0.165 in | 600 V | 1 | 4 | Locking Ramp | General Purpose Industrial Lighting |

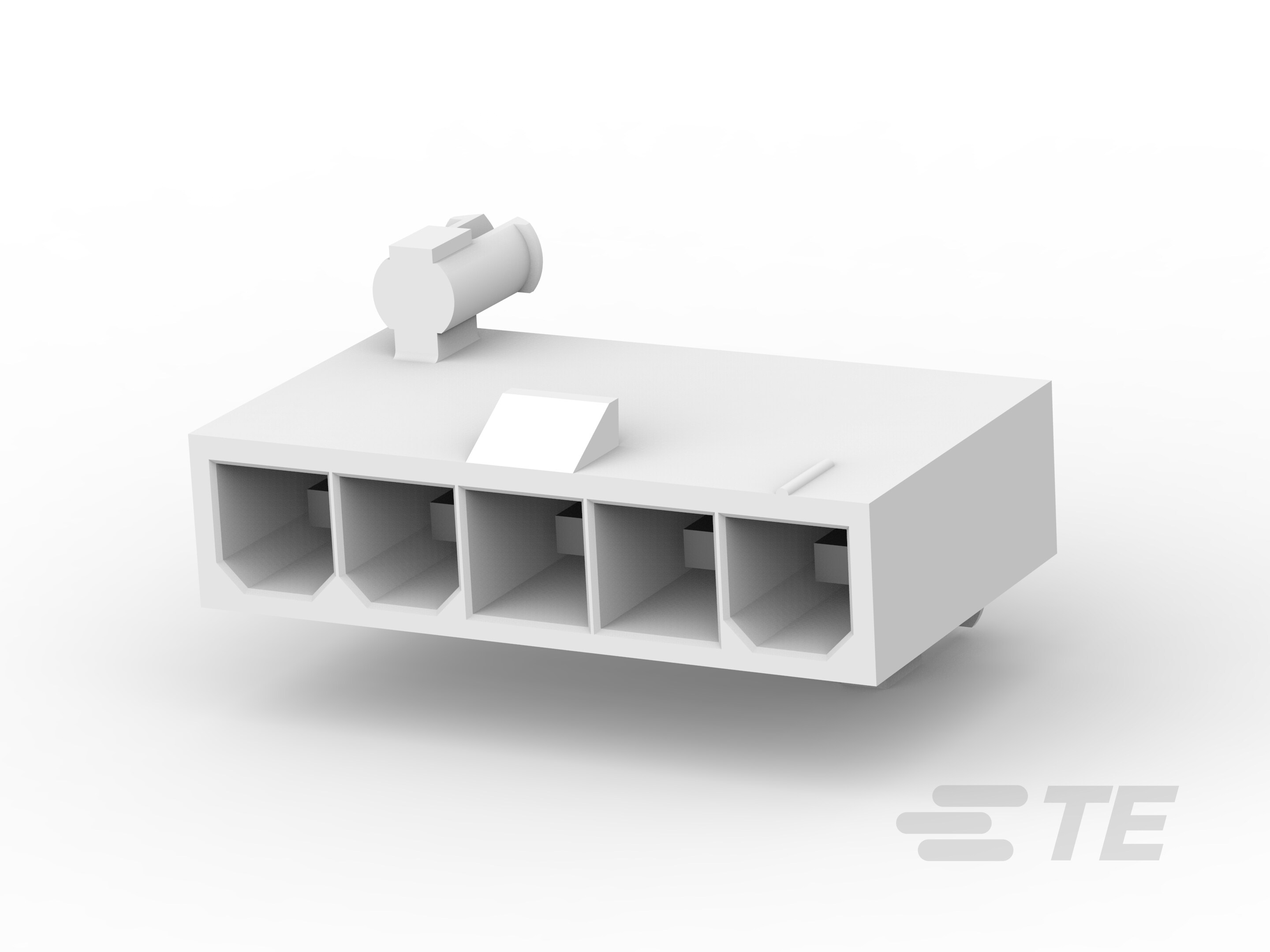

 TE Connectivity AMP Connectors | Tin | Board Lock Glow Wire Compliant | Tin | Square | Shrouded - 4 Wall | Header | Board Cable/Wire | Brass | Natural | 0.504 in | -40 °C | 105 °C | Solder | Male Pin | 0.138 in | 9 A | All | UL94 V-0 | Through Hole | Glass Filled Nylon 6/6 Polyamide (PA66) | 0.165 in | 600 V | 1 | 5 | Locking Ramp | General Purpose Industrial Lighting |
