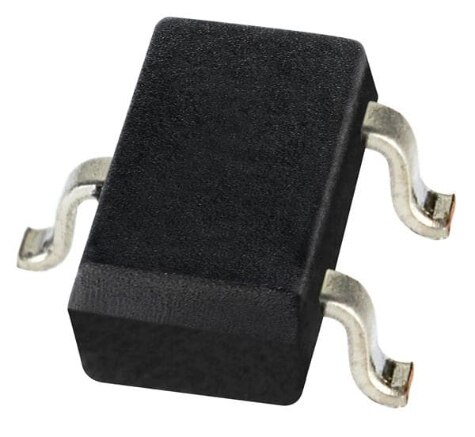

SM351 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
MAGNETIC SWITCH OMNIPOLAR SOT23
| Part | Function | Polarization | Mounting Type | Package / Case | Test Condition (Min) | Test Condition (Max) | Technology | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Package Name | Operating Temperature (Max) | Operating Temperature (Min) | Output Type | Current - Supply (Max) | Sensing Range (Release) | Sensing Range (Trip) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Omnipolar Switch | North Pole South Pole | Surface Mount | SC-59 SOT-23-3 TO-236-3 | -40 °C | 85 °C | Magnetoresistive | 24 VAC | 3 V | SOT-23-3 | 85 °C | -40 °C | Open Collector | 5 mA | 0.2 mT | 1.1 mT | |
 Honeywell Sensing and Productivity Solutions | Omnipolar Switch | North Pole South Pole | Surface Mount | SC-59 SOT-23-3 TO-236-3 | -40 °C | 85 °C | Magnetoresistive | 5.5 V | 1.65 V | SOT-23 | 85 °C | -40 °C | Push-Pull | 620 nA | 0.2 mT | 1.1 mT | 150 µA |
