3271 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

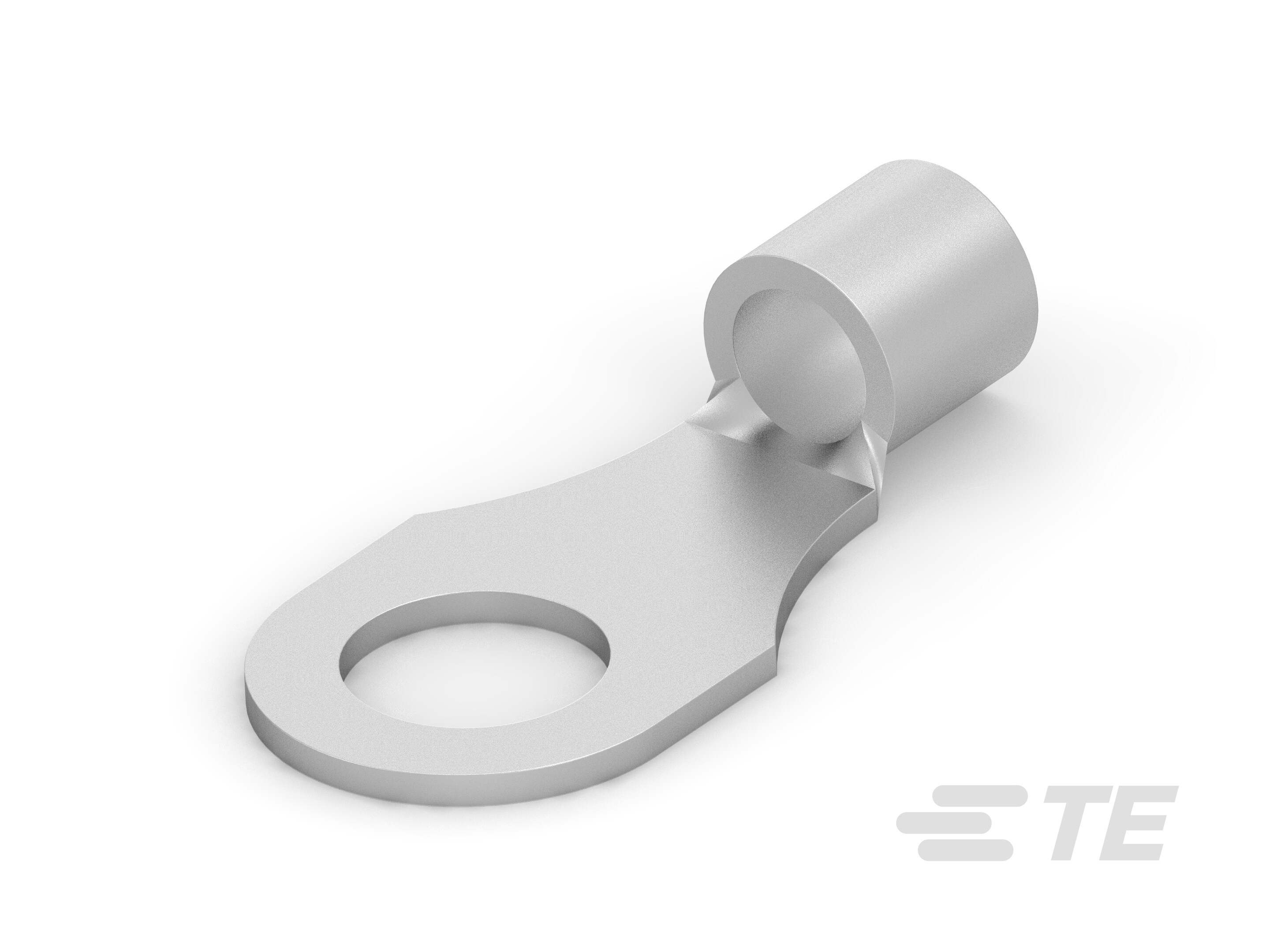

CONN RING D-SHAPE 4AWG #1/2
| Part | Thickness | Wire Gauge | Contact Finish | Mounting Type | Length - Overall | Termination | Insulation | Features | Width - Outer Edges | Terminal Type | Stud/Tab Size | Contact Material | Insulation Diameter (Min) | Insulation Diameter (Max) | Material - Insulation | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Color | Body Finish | Accessory Type | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.07 in | 4 AWG | Tin | Free Hanging (In-Line) | 1.902 in | Crimp | Non-Insulated | Brazed Seam Serrated Termination | 0.875 in | D-Shaped | 0.5 Stud | Copper | |||||||||
 TE Connectivity AMP Connectors | 0.031 in | Tin | Free Hanging (In-Line) | 0.643 in | Crimp | Insulated | Serrated Termination | 0.16 in | Circular | 1 Stud | Copper | 0.08 in | 0.125 in | Nylon PA Polyamide | 16 AWG | 22 AWG | Red | ||||
 TE Connectivity AMP Connectors | Shielded | Violet | Zinc | Ferrule | Copper |
