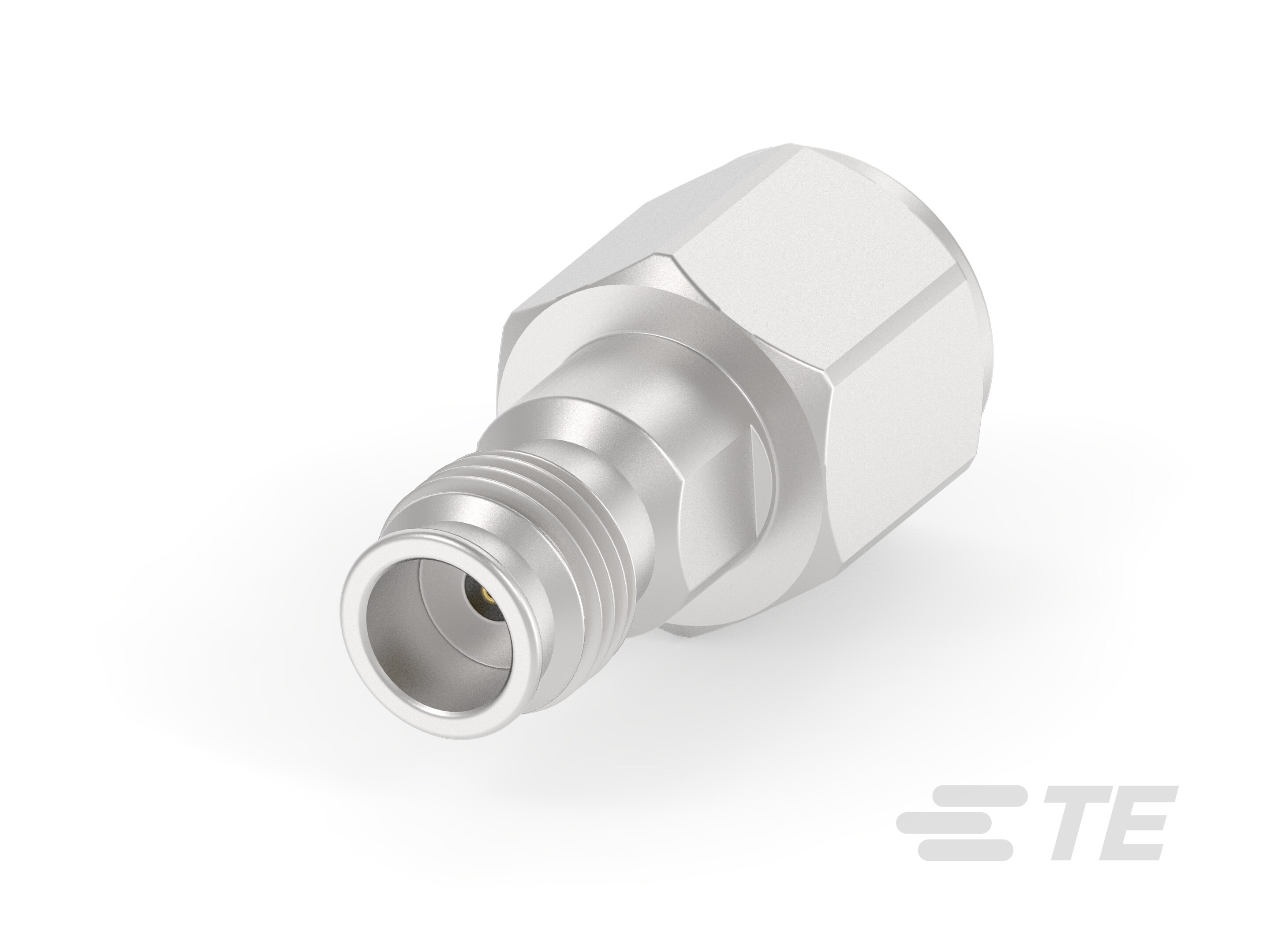

1.35MM MALE TO 1.35MM FEMALE ADAPTOR
| Part | Mating Cycles | Dielectric Material | Body Material | Center Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Frequency - Max | Center Contact Plating | Adapter Type | Fastening Type | Convert From (Adapter End) Type | Convert From (Adapter End) Jack Size | Impedance | Mounting Type | Center Gender | Style | Conversion Type | Convert To (Adapter End) Gender | Convert To (Adapter End) Type | Adapter Series Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 500 cycles | Polyetheretherketone (PEEK) | Stainless Steel | Beryllium Copper | -40 °C | 85 °C | 90 GHz | Gold | Plug to Jack | Threaded | Female Socket | 1.35 mm | 50 Ohm | Free Hanging (In-Line) | Female Male | Straight | Same Series | Male Pin | 1.35mm Plug | 1.35 mm |
