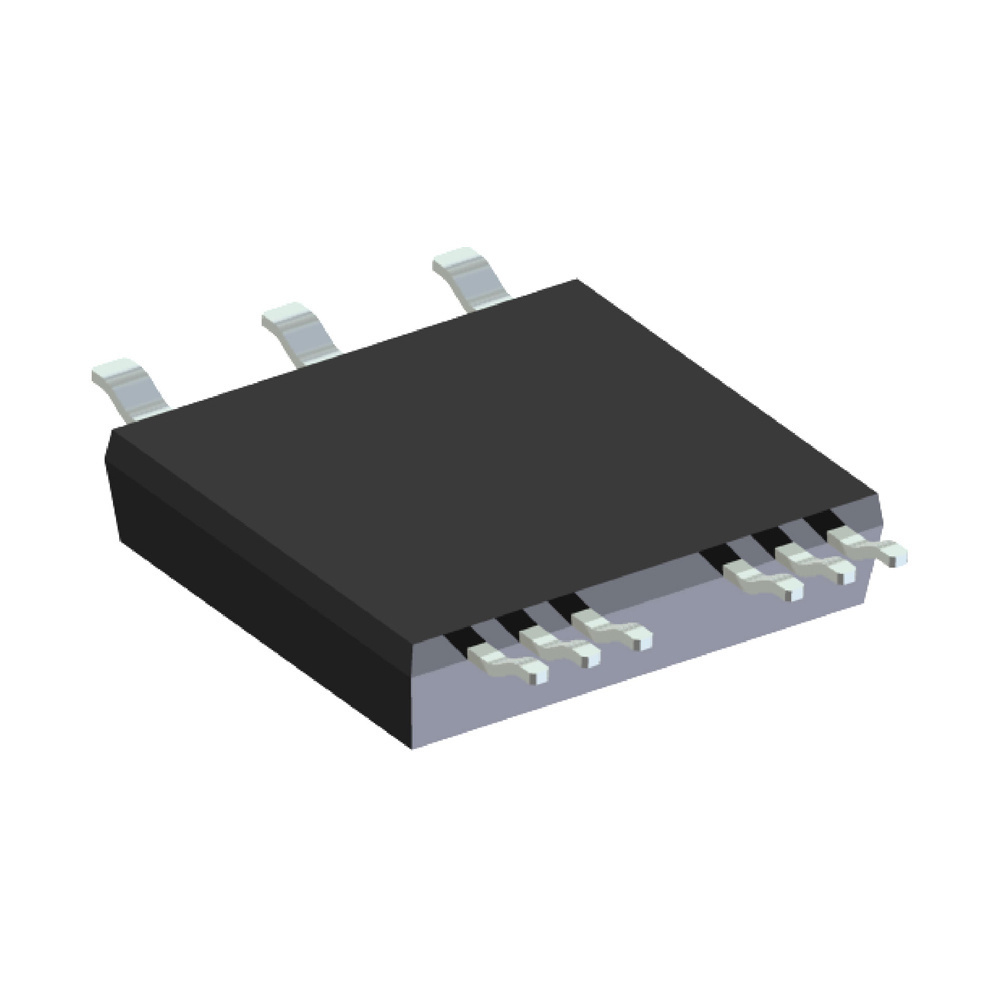

Bipolar Module - Diode SMPD-B
Description
AI
The Schottky Low leakage series offers various packages with improved leakage currents and breakdown voltages up to 200V.
Beta
⌘K
Bipolar Module - Diode SMPD-B
Bipolar Module - Diode SMPD-B
| Part | Technology | Current - Reverse Leakage | Package / Case | Voltage - Forward (Vf) (Max) | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Package Name | Diode Pair Count | Diode Configuration | Mounting Type | Current - Average Rectified (Io) (per Diode) | Speed - Fast Recovery (Maximum) | Speed - Fast Recovery (Minimum) | Voltage - DC Reverse (Vr) (Max) | Speed | Speed - Recovery Current | Diode Count |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Schottky | 1.8 mA | SC-65-3 TO-3P-3 | 930 mV | 175 °C | -55 °C | TO-3P | 1 pair | Common Cathode | Through Hole | 60 A | 500 ns | 200 mA | 150 V | |||
 LITTELFUSE | Schottky | 1 mA | 9-SMD Module | 930 mV | 175 °C | -55 °C | ISOPLUS-SMPD™.B | Independent | Surface Mount | 75 A | 500 mA | 150 V | No Recovery Time | 500 mA 500 mA | 2 | ||
 LITTELFUSE | Schottky | 1 mA | 9-SMD Module | 930 mV | 175 °C | -55 °C | ISOPLUS-SMPD™.B | Independent | Surface Mount | 75 A | 500 mA | 150 V | No Recovery Time | 500 mA 500 mA | 2 | ||
LITTELFUSE | Schottky | 1 mA | 9-SMD Module | 980 mV | 175 °C | -55 °C | ISOPLUS-SMPD™.B | Independent | Surface Mount | 65 A | 500 ns | 200 mA | 200 V | 2 | |||
LITTELFUSE | Schottky | 1 mA | 9-SMD Module | 980 mV | 175 °C | -55 °C | ISOPLUS-SMPD™.B | Independent | Surface Mount | 65 A | 500 ns | 200 mA | 200 V | 2 |
