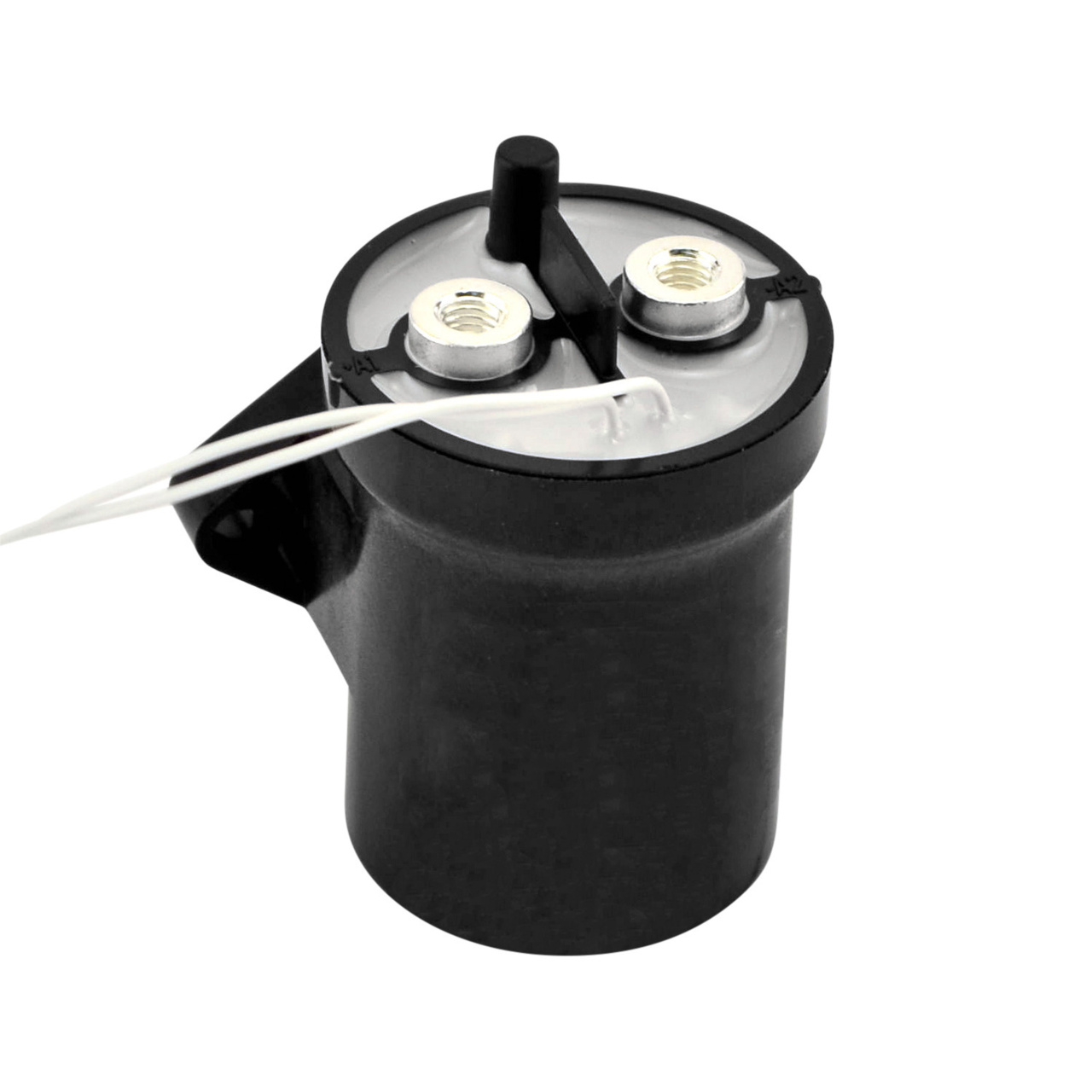

DCNLEV100 Series

DCN 100A 750V 24V Cl SPST IP67 BM AUX NP

Catalog

DCN 100A 750V 24V Cl SPST IP67 BM AUX NP

Part	Release Time	Operate Time	Coil Current	Coil Resistance	Coil Power	Contact Rating (Current)	Coil Voltage	Contact Form	Switching Voltage (Nominal)	Must Operate Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Must Release Voltage	Termination Style	Mounting Type	Features
LITTELFUSE DCNLEV100-CN	10 ms	25 ms	250 mA	96 Ohms	6 W	100 A	24 VDC	1 DM Form SPST-NO X	750 VDC	16 VDC	-40 °C	85 °C	2.4 V	Stud Wire Leads	Chassis Mount
LITTELFUSE DCNLEV100-EAS	10 ms	25 ms	122 mA	392 Ohms	6 W	100 A	48 V	1 DM Form SPST-NO X	750 VDC	33 VDC	-40 °C	85 °C	4.8 VAC	Stud Wire Leads	Chassis Mount	Auxiliary Contacts
LITTELFUSE DCNLEV100-CAS	10 ms	25 ms	250 mA	96 Ohms	6 W	100 A	24 VDC	1 DM Form SPST-NO X	750 VDC	16 VDC	-40 °C	85 °C	2.4 V	Stud Wire Leads	Chassis Mount	Auxiliary Contacts
LITTELFUSE DCNLEV100-CS	10 ms	25 ms	250 mA	96 Ohms	6 W	100 A	24 VDC	1 DM Form SPST-NO X	750 VDC	16 VDC	-40 °C	85 °C	2.4 V	Stud Wire Leads	Chassis Mount
LITTELFUSE DCNLEV100-CSN	10 ms	25 ms	250 mA	96 Ohms	6 W	100 A	24 VDC	1 DM Form SPST-NO X	750 VDC	16 VDC	-40 °C	85 °C	2.4 V	Stud Wire Leads	Chassis Mount
LITTELFUSE DCNLEV100-CAN	10 ms	25 ms	250 mA	96 Ohms	6 W	100 A	24 VDC	1 DM Form SPST-NO X	750 VDC	16 VDC	-40 °C	85 °C	2.4 V	Stud Wire Leads	Chassis Mount	Auxiliary Contacts

Catalog

DCN 100A 750V 24V Cl SPST IP67 BM AUX NP

Description

Designed specifically for electric vehicle (EV) and eMobility applications, the DCNLEV100 Series 750V 100A High-Voltage DC Contactor Relay is ideal for battery power supply, charging pill, motor control, circuit insulation, circuit protection, and industrial machinery safety applications. Thanks to a magnetic arc blowout design and a sealed, gas-filled chamber, any electrical arc between the contacts is safely dissipated. This design also allows the electric vehicle contactor to make/break higher voltages. This configuration of the DCNLEV100 Series high-voltage DC contactor (DCNLEV100-CAN) features a 24V coil rating, non-polarized contacts, an auxiliary contact, and a bottom mounting style.
