487223 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

030 HOUSING FFC RCPT 100CL DR ROHS COMPLIANT: YES

Part	Insulation Diameter (Max)	Insulation Diameter (Min)	Note	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Current Rating	Housing Color	Housing Material	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Pitch	Flat Flex Type	Number of Positions	FFC, FCB Thickness (Max)	FFC, FCB Thickness (Min)	Locking Feature	Material Flammability Rating	Number of Rows	Voltage Rating
TE Connectivity AMP Connectors 487223-8	0.056 in	0.025 in	Contacts Not Included	22 AWG	32 AWG	1.5 A	Black	Thermoplastic	105 °C	-65 °C	Housing for Female Contacts	0.1 in	Discrete Wire FFC	30	0.13 mm	0.05 mm	Locking Ramp	UL94 V-0	2	300 VAC/DC
TE Connectivity AMP Connectors 487223-9	0.056 in	0.025 in	Contacts Not Included	22 AWG	32 AWG	1.5 A	Black	Thermoplastic	105 °C	-65 °C	Housing for Female Contacts	0.1 in	Discrete Wire FFC	34	0.13 mm	0.05 mm	Locking Ramp	UL94 V-0	2	300 VAC/DC
TE Connectivity AMP Connectors 487223-1	0.056 in	0.025 in	Contacts Not Included	22 AWG	32 AWG	1.5 A	Black	Thermoplastic	105 °C	-65 °C	Housing for Female Contacts	0.1 in	Discrete Wire FFC	10	0.13 mm	0.05 mm	Locking Ramp	UL94 V-0	2	300 VAC/DC

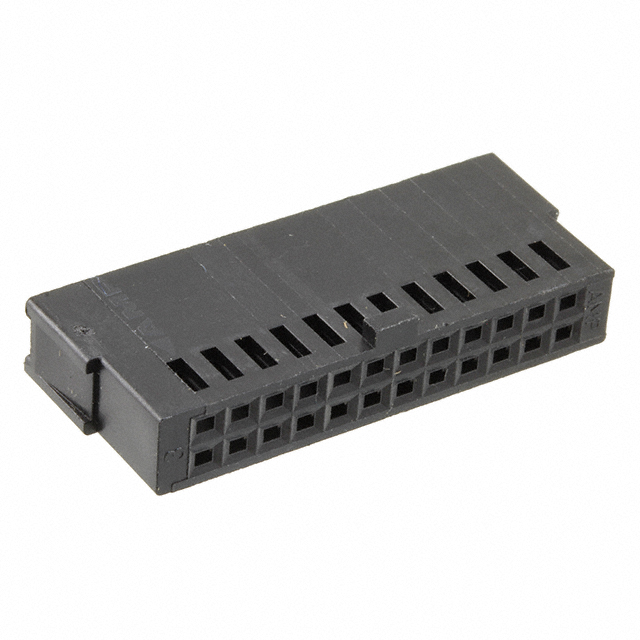

TE Connectivity AMP Connectors 487223-6	0.056 in	0.025 in	Contacts Not Included	22 AWG	32 AWG	1.5 A	Black	Thermoplastic	105 °C	-65 °C	Housing for Female Contacts	0.1 in	Discrete Wire FFC	24 pos	0.13 mm	0.05 mm	Locking Ramp	UL94 V-0	2	300 VAC/DC
TE Connectivity AMP Connectors 1-487223-2	0.056 in	0.025 in	Contacts Not Included	22 AWG	32 AWG	1.5 A	Black	Thermoplastic	105 °C	-65 °C	Housing for Female Contacts	0.1 in	Discrete Wire FFC	50	0.13 mm	0.05 mm	Locking Ramp	UL94 V-0	2	300 VAC/DC

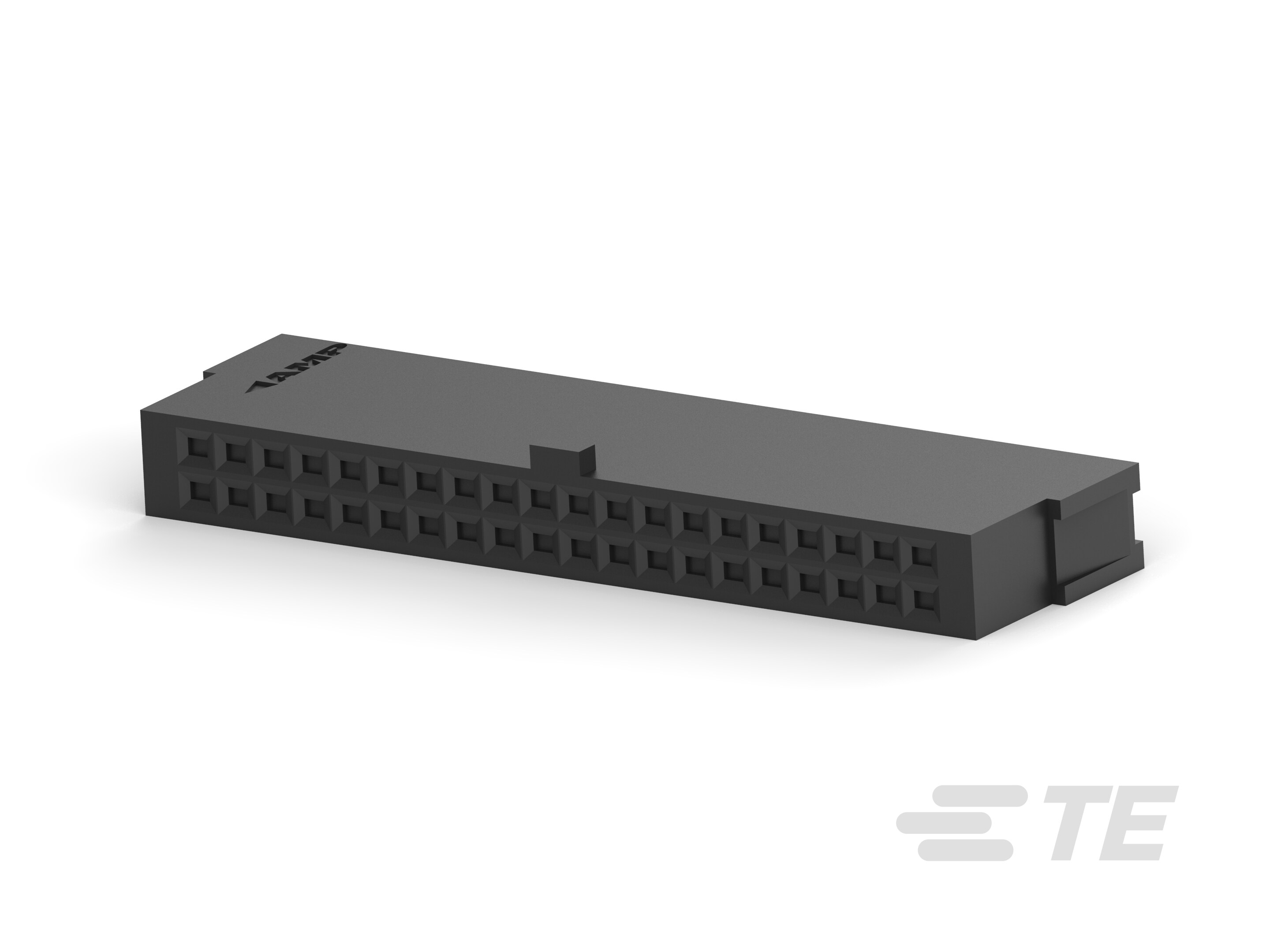

TE Connectivity AMP Connectors 1-487223-0	0.056 in	0.025 in	Contacts Not Included	22 AWG	32 AWG	1.5 A	Black	Thermoplastic	105 °C	-65 °C	Housing for Female Contacts	0.1 in	Discrete Wire FFC	40	0.13 mm	0.05 mm	Locking Ramp	UL94 V-0	2	300 VAC/DC

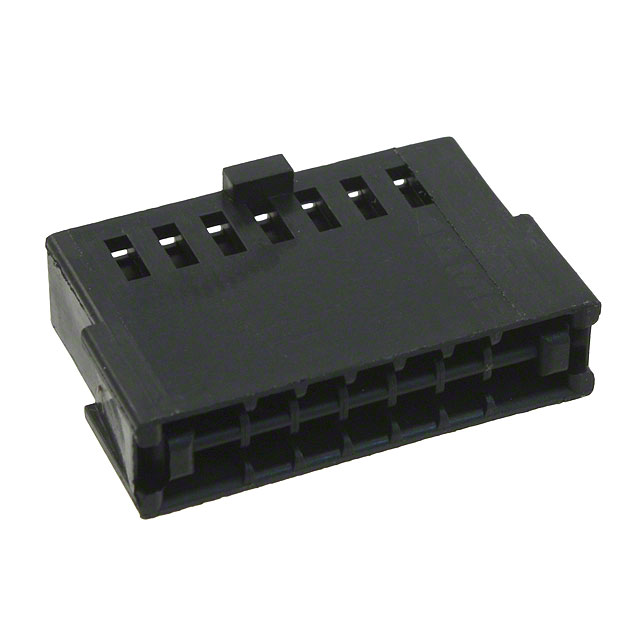

TE Connectivity AMP Connectors 487223-2	0.056 in	0.025 in	Contacts Not Included	22 AWG	32 AWG	1.5 A	Black	Thermoplastic	105 °C	-65 °C	Housing for Female Contacts	0.1 in	Discrete Wire FFC	14	0.13 mm	0.05 mm	Locking Ramp	UL94 V-0	2	300 VAC/DC
TE Connectivity AMP Connectors 487223-5	0.056 in	0.025 in	Contacts Not Included	22 AWG	32 AWG	1.5 A	Black	Thermoplastic	105 °C	-65 °C	Housing for Female Contacts	0.1 in	Discrete Wire FFC	20	0.13 mm	0.05 mm	Locking Ramp	UL94 V-0	2	300 VAC/DC
