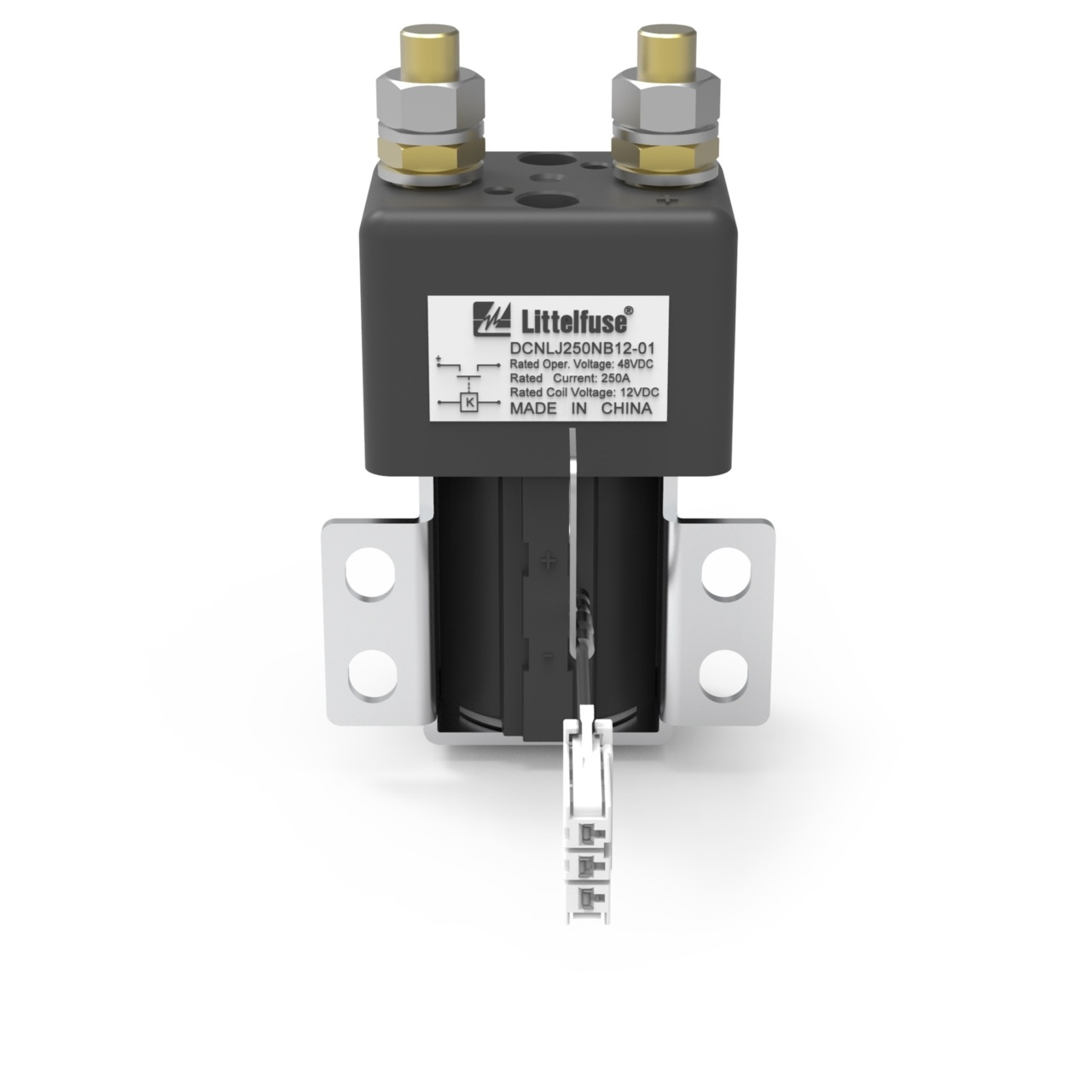

DCNLJ250NB12-01 Series

DCNLJ 250A 48V NP 12Vcoil 3wire

Catalog

DCNLJ 250A 48V NP 12Vcoil 3wire

Part	Operating Temperature (Min)	Operating Temperature (Max)	Contact Rating (Current)	Termination Style	Must Operate Voltage	Switching Voltage DC (Max)	Form A Count	Contact Form	Must Release Voltage	Mounting Type	Coil Voltage
LITTELFUSE DCNLJ250NB12-01	-40 °C	85 °C	250 A	Stud Wire Leads with Connector	8.4 VAC	60 VDC	1	SPST-NO	1 VDC	Chassis Mount	12 VAC

Catalog

DCNLJ 250A 48V NP 12Vcoil 3wire

Description

Designed for high-current contact switching in electric control systems of communication power supplies, electro-motion forklifts, motor cars, trains, uninterruptible power supplies (UPS), and more, this 250A High-Current High-Voltage DC Contactor is a normally open relay with a contact voltage drop of ≤50 mV @ 100A and a 1600A 5 ms make-break rating. This model of the DCNLJ250 series high-voltage contactor (DCNLJ250NB12-01) features non-polarized contacts rated for 48V (typical) and 60V (max) and a 12V coil.
