DST1045 Series
Manufacturer: LITTELFUSE
Beta
⌘K

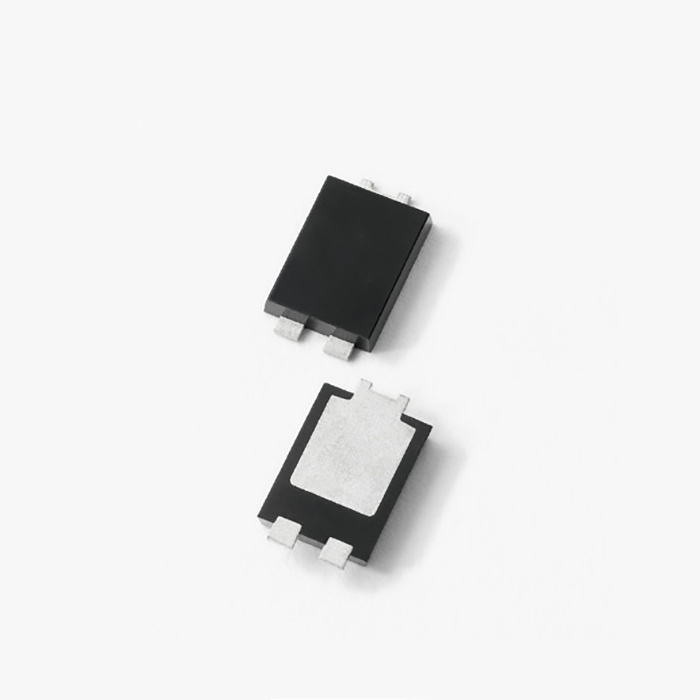

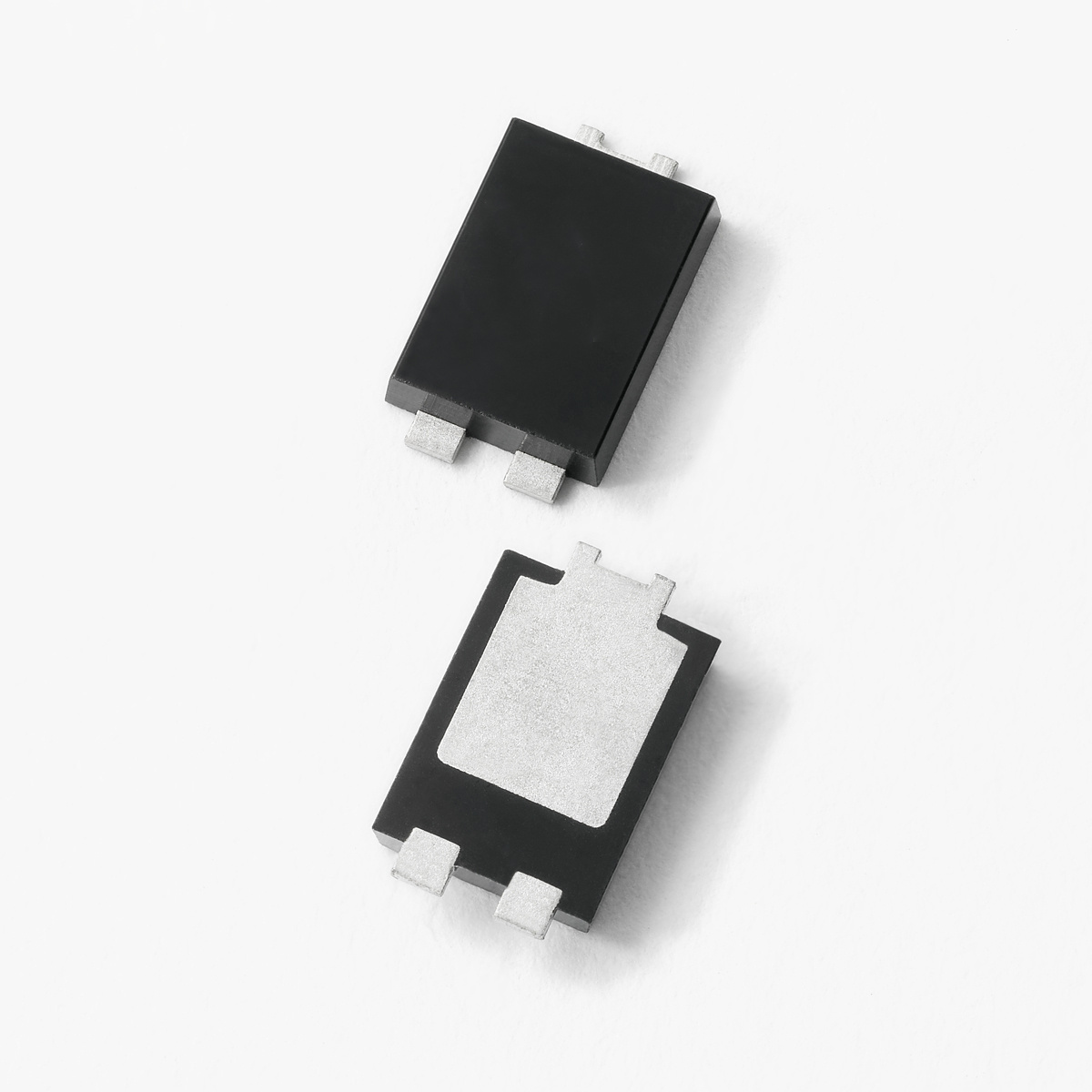

45V 10A ULTRALOW SCHOTTKY DSUL _TO-277B/ TR
| Part | Mounting Type | Speed - Fast Recovery (Maximum) | Speed - Fast Recovery (Minimum) | Package Name | Package / Case | Technology | Current - Average Rectified (Io) | Voltage - DC Reverse (Vr) (Max) | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Voltage - Forward (Vf) (Max) | Capacitance | Current - Reverse Leakage | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Surface Mount | 500 ns | 200 mA | TO-277B | 3-PowerDFN TO-277 | Schottky | 10 A | 45 V | 150 °C | -55 °C | 570 mV | 639 pF | 800 µA | ||
 LITTELFUSE | Surface Mount | 500 ns | 200 mA | TO-277B | 3-PowerDFN TO-277 | Schottky | 10 A | 45 V | 150 °C | -55 °C | 570 mV | 656 pF | 800 µA | Automotive | AEC-Q101 |
