076150 Series

Manufacturer: Molex

Catalog

CONN RCPT IMPACT 252POS EDGE MNT

Part	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Color	Contact Finish	Number of Columns	Mounting Type	Number of Positions	Contact Finish Thickness	Termination	Connector Type	Connector Style	Differential Pairs (Typical)	Number of Positions Loaded	Number of Rows	Pitch

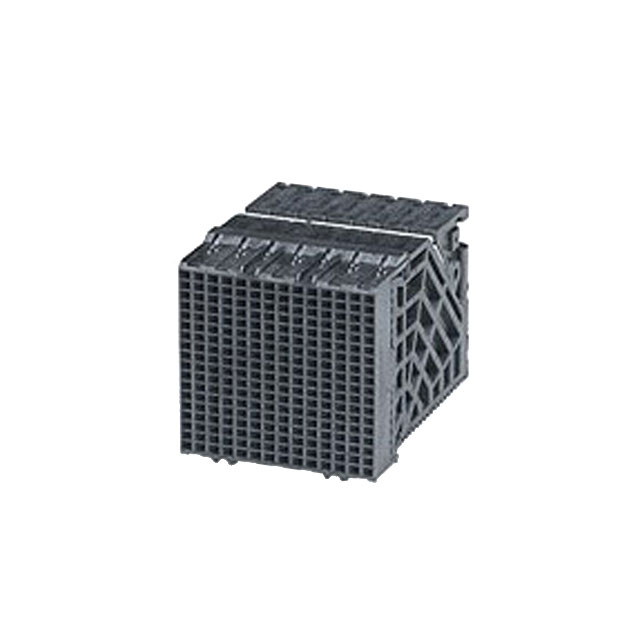

Molex 0761501024	UL94 V-0	-55 °C	85 °C	30 V	Black	Gold	14	Board Edge Right Angle Through Hole	252	30 µin	Press-Fit	Female Sockets Receptacle	Impact	84	All	18
Molex 0761504016	UL94 V-0	-55 °C	85 °C	30 V	Black	Gold	16	Board Edge Right Angle Through Hole	288	30 µin	Press-Fit	Female Sockets Receptacle	Guide Right Impact	96	All	18

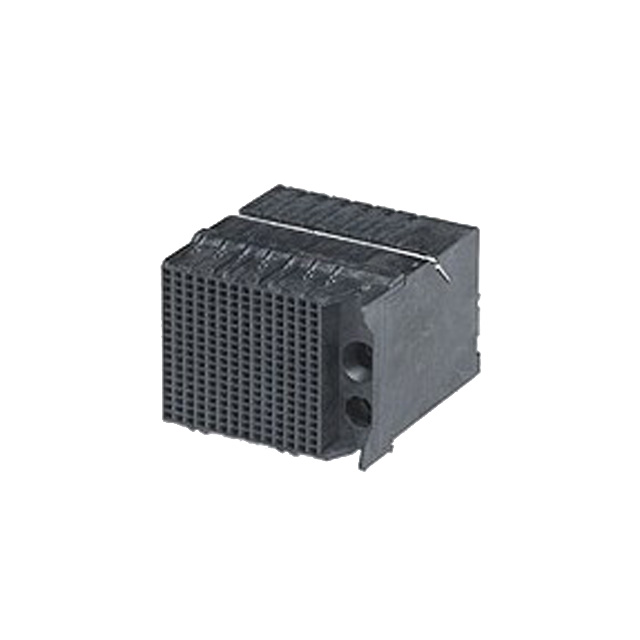

Molex 0761505024	UL94 V-0	-55 °C	85 °C	30 V	Black	Gold	14	Board Edge Right Angle Through Hole	252	30 µin	Press-Fit	Female Sockets Receptacle	Guide Right Impact	84	All	18	0.053 in

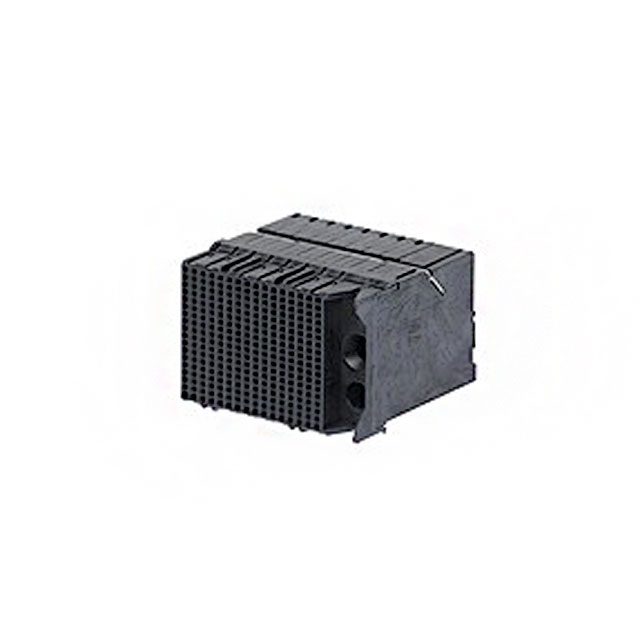

Molex 0761505326	UL94 V-0	-55 °C	85 °C	30 V	Black	Gold	16	Board Edge Right Angle Through Hole	288	30 µin	Press-Fit	Female Sockets Receptacle	Guide Right Impact	96	All	18	0.053 in
Molex 0761500016	UL94 V-0	-55 °C	85 °C	30 V	Black	Gold	16	Board Edge Right Angle Through Hole	288	30 µin	Press-Fit	Female Sockets Receptacle	Impact	96	All	18
Molex 0761503116	UL94 V-0	-55 °C	85 °C	30 V	Black	Gold	16	Board Edge Right Angle Through Hole	288	30 µin	Press-Fit	Female Sockets Receptacle	Guide Left Impact	96	All	18	0.053 in
Molex 0761501020	UL94 V-0	-55 °C	85 °C	30 V	Black	Gold	10	Board Edge Right Angle Through Hole	180	30 µin	Press-Fit	Female Sockets Receptacle	Impact	60	All	18

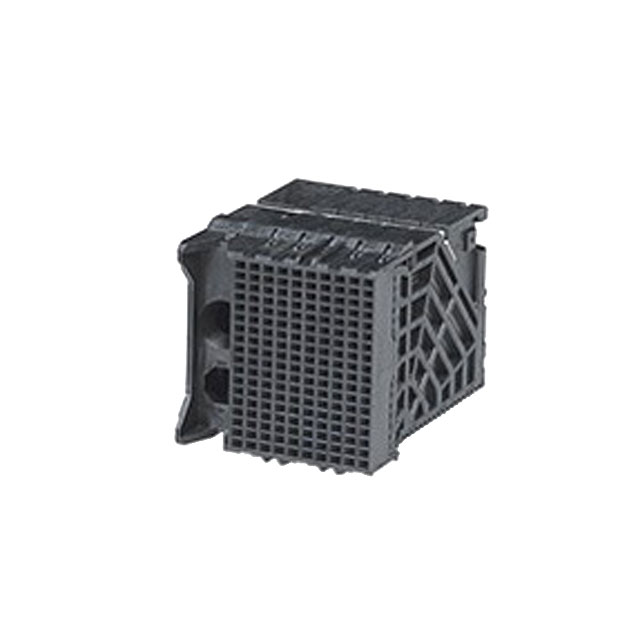

Molex 0761503010	UL94 V-0	-55 °C	85 °C	30 V	Black	Gold	10	Board Edge Right Angle Through Hole	180	30 µin	Press-Fit	Female Sockets Receptacle	Guide Left Impact	60	All	18	0.053 in
Molex 0761504020	UL94 V-0	-55 °C	85 °C	30 V	Black	Gold	10	Board Edge Right Angle Through Hole	180	30 µin	Press-Fit	Female Sockets Receptacle	Guide Right Impact	60	All	18
Molex 0761501026	UL94 V-0	-55 °C	85 °C	30 V	Black	Gold	16	Board Edge Right Angle Through Hole	288	30 µin	Press-Fit	Female Sockets Receptacle	Impact	96	All	18
