53245 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

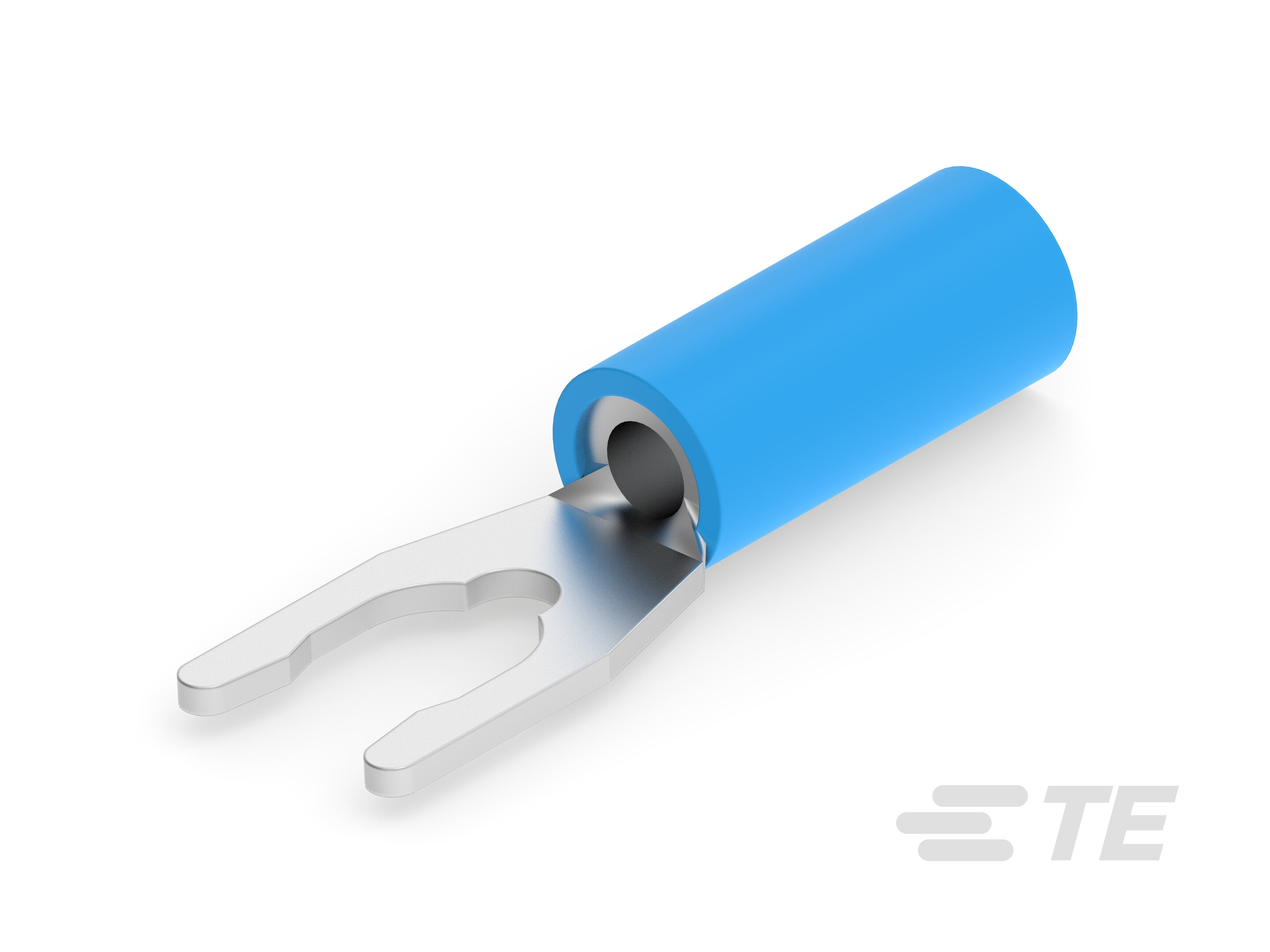

CONN SPADE TERM 14-16AWG #10 BLU
| Part | Mounting Type | Terminal Type | Width - Outer Edges | Contact Finish | Termination | Length - Overall | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Insulation | Stud/Tab Size | Contact Material | Color | Features | Tongue Inside Opening | Material - Insulation | Length - Ring Center to Termination | Insulation Diameter (Min) | Insulation Diameter (Max) | Length - Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Free Hanging (In-Line) | Snap Spring | 0.294 in | Tin | Crimp | 0.969 in | 16 AWG | 14 AWG | Insulated | 10 Stud | Brass | Blue | Serrated Termination | 0.19 in | Poly-Vinyl Chloride PVC | 0.281 in | 0.15 in | 0.25 in | 0.465 in |
