ZW-30-19 Series

Catalog

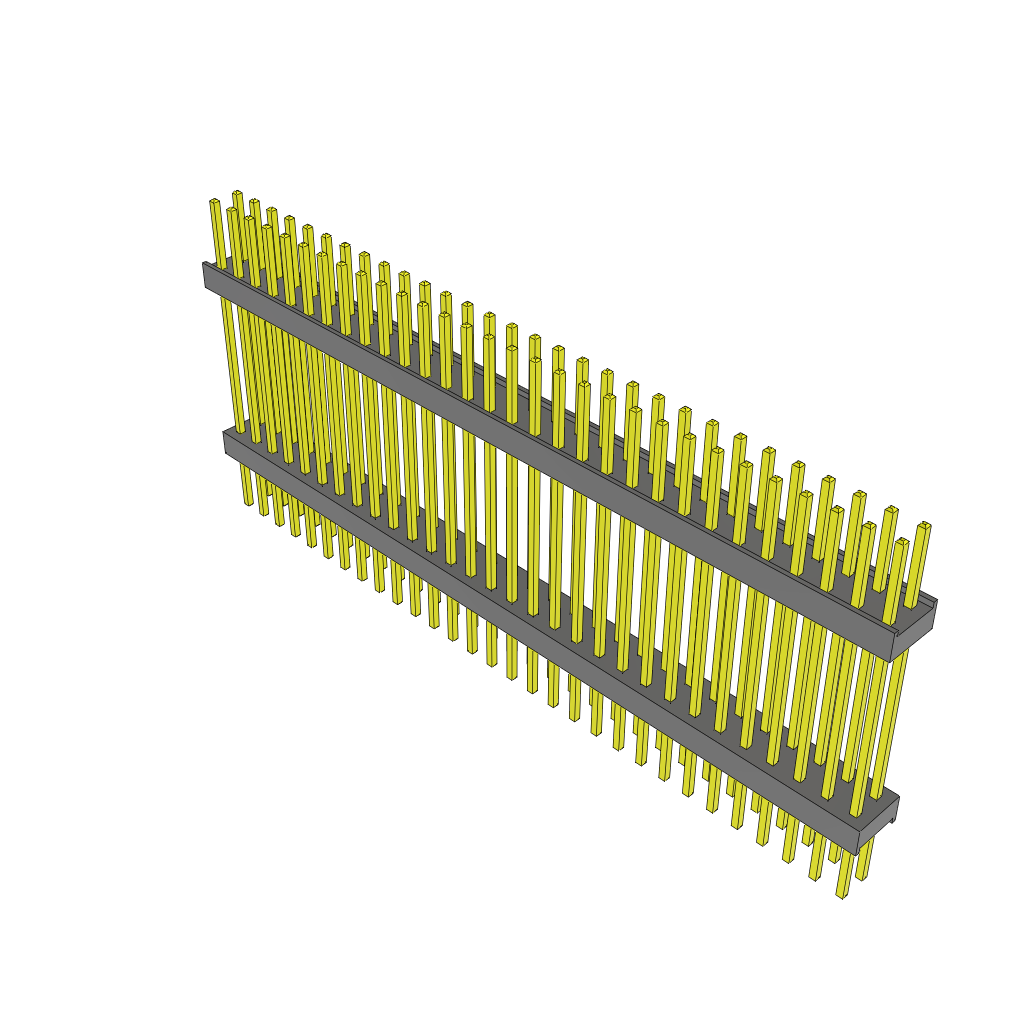

CONN BRD STACK .100" 60POS

Part	Length - Overall Pin	Row Spacing	Termination	Pitch	Number of Positions	Number of Rows	Contact Finish - Post (Mating)	Length - Tail	Color	Length - Stack Height	Contact Finish Thickness - Post (Mating)	Length - Post (Mating)	Mounting Type
Samtec Inc. ZW-30-19-G-D-750-430	1.33 in	0.1 in	Solder	0.1 in	60	2	Gold	0.43 in	Black	0.75 in	10 µin	0.15 in	Through Hole
Samtec Inc. ZW-30-19-G-D-830-250	1.33 in	0.1 in	Solder	0.1 in	60	2	Gold	0.25 in	Black	0.83 in	10 µin	0.25 in	Through Hole
Samtec Inc. ZW-30-19-L-D-960-120	1.33 in	0.1 in	Solder	0.1 in	60	2	Gold	0.12 in	Black	0.96 in	10 µin	0.25 in	Through Hole
Samtec Inc. ZW-30-19-L-D-875-160	1.33 in	0.1 in	Solder	0.1 in	60	2	Gold	0.16 in	Black	0.875 in	10 µin	0.295 in	Through Hole
Samtec Inc. ZW-30-19-T-D-970-230	1.33 in	0.1 in	Solder	0.1 in	60	2	Tin	0.23 in	Black	0.97 in		0.13 in	Through Hole
