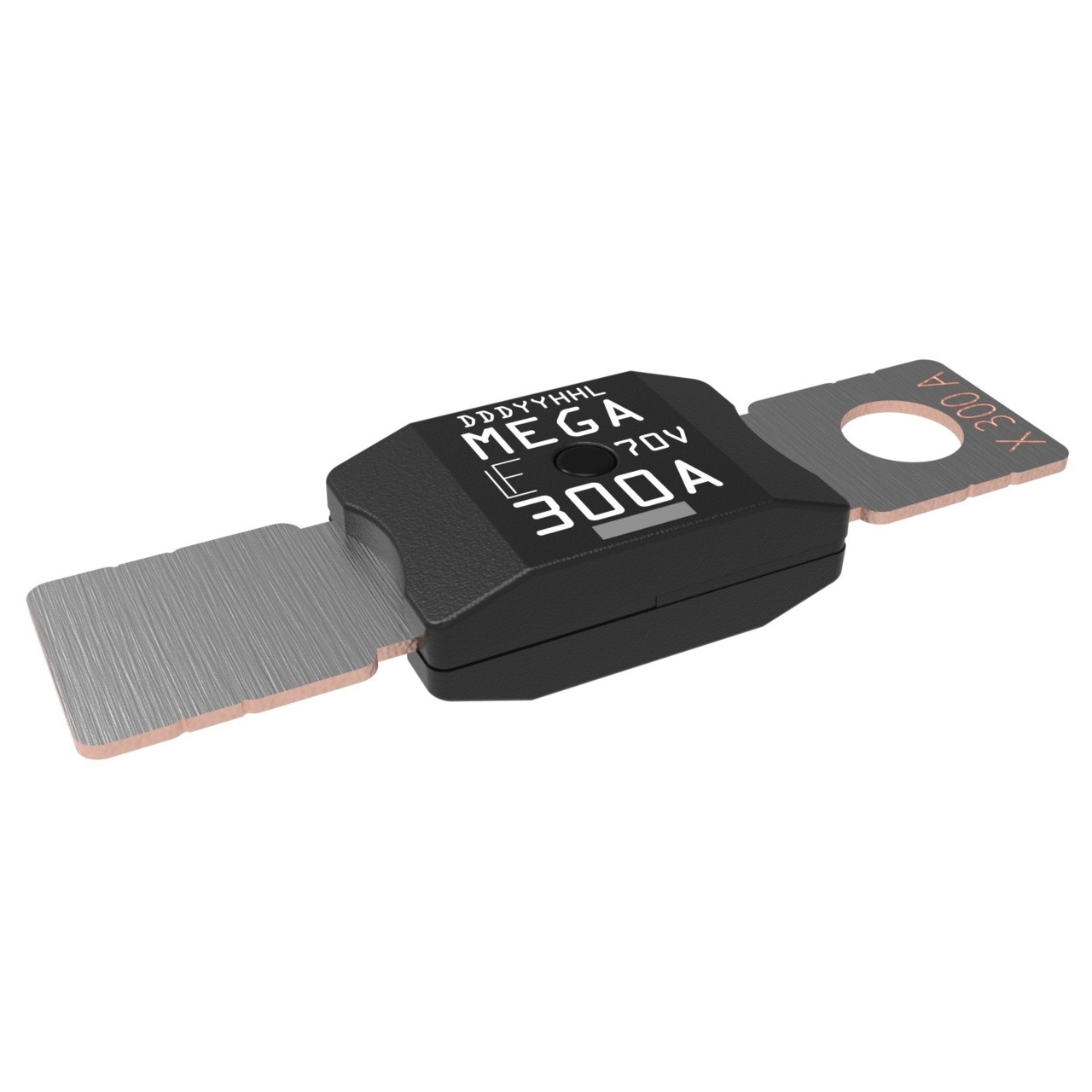

0998300.UX-1M8 Series

Fuse - Mega 70V (SF51) 1-M8 hole 300A

Catalog

Fuse - Mega 70V (SF51) 1-M8 hole 300A

Part	Current Rating	Response Time	Voltage Rating - DC	Mounting Type	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Melting I²t	Package / Case	Color	Breaking Capacity	Operating Temperature (Max)	Operating Temperature (Min)	Fuse Type
LITTELFUSE 0998300.UX-1M8	300 A	Slow Blow	70 V	Bolt Mount	0.39 in	0.75 in	1.15 in	340000	Auto Link	Gray	2.5 kA	125 °C	-40 °C	Automotive

Catalog

Fuse - Mega 70V (SF51) 1-M8 hole 300A

Description

This 300A MEGA® 70V High Performance SF51 automotive fuse offers full wire protection. Ideal for protecting batteries, alternators, and heavy gauge wire harnesses, it employs diffusion pill technology to deliver predictable time-delayed performance.
