FUS 600V T/D 13/32x1 3/8 1A MIDGET
Description
AI

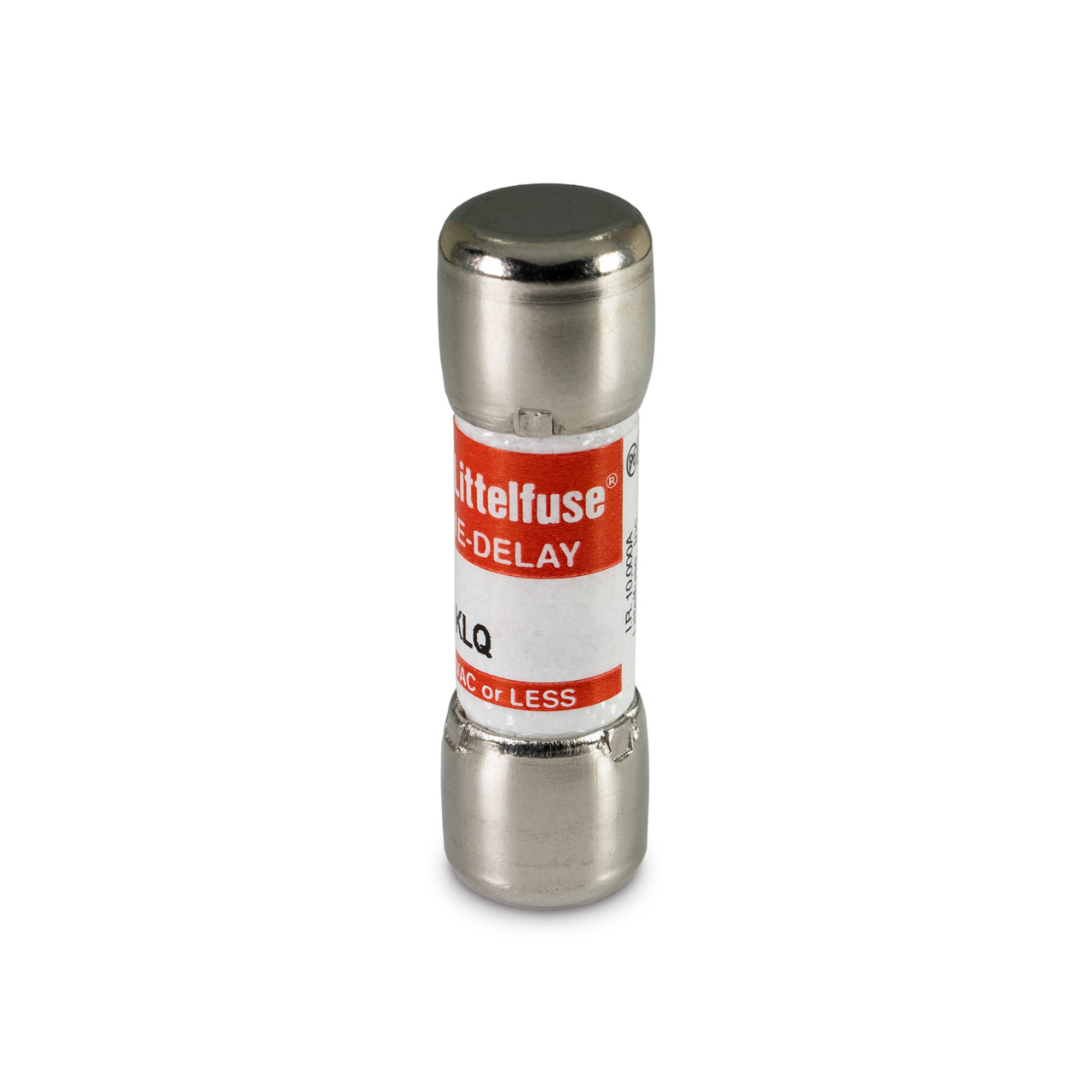

KLQ001 is a Midget fuse with an ampere rating of 1 and increased time-delay capability.
Beta
⌘K
FUS 600V T/D 13/32x1 3/8 1A MIDGET
FUS 600V T/D 13/32x1 3/8 1A MIDGET
| Part | Applications | Voltage Rating - AC | Breaking Capacity | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Size / Dimension Length | Size / Dimension Diameter | Current Rating | Fuse Type | Package Length | Package Name | Package / Case | Package Features | Package Width | Response Time | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Electrical Industrial | 600 VAC | 10 kA | 125 °C | -55 °C | Requires Holder | 1.375 in | 0.406 in | 1 A | Cartridge | 10 mm | 5AG 5AG Midget | 10mm x 38mm (Midget) 5AG | Midget | 38 mm | Slow Blow | CE UL |
