282880 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

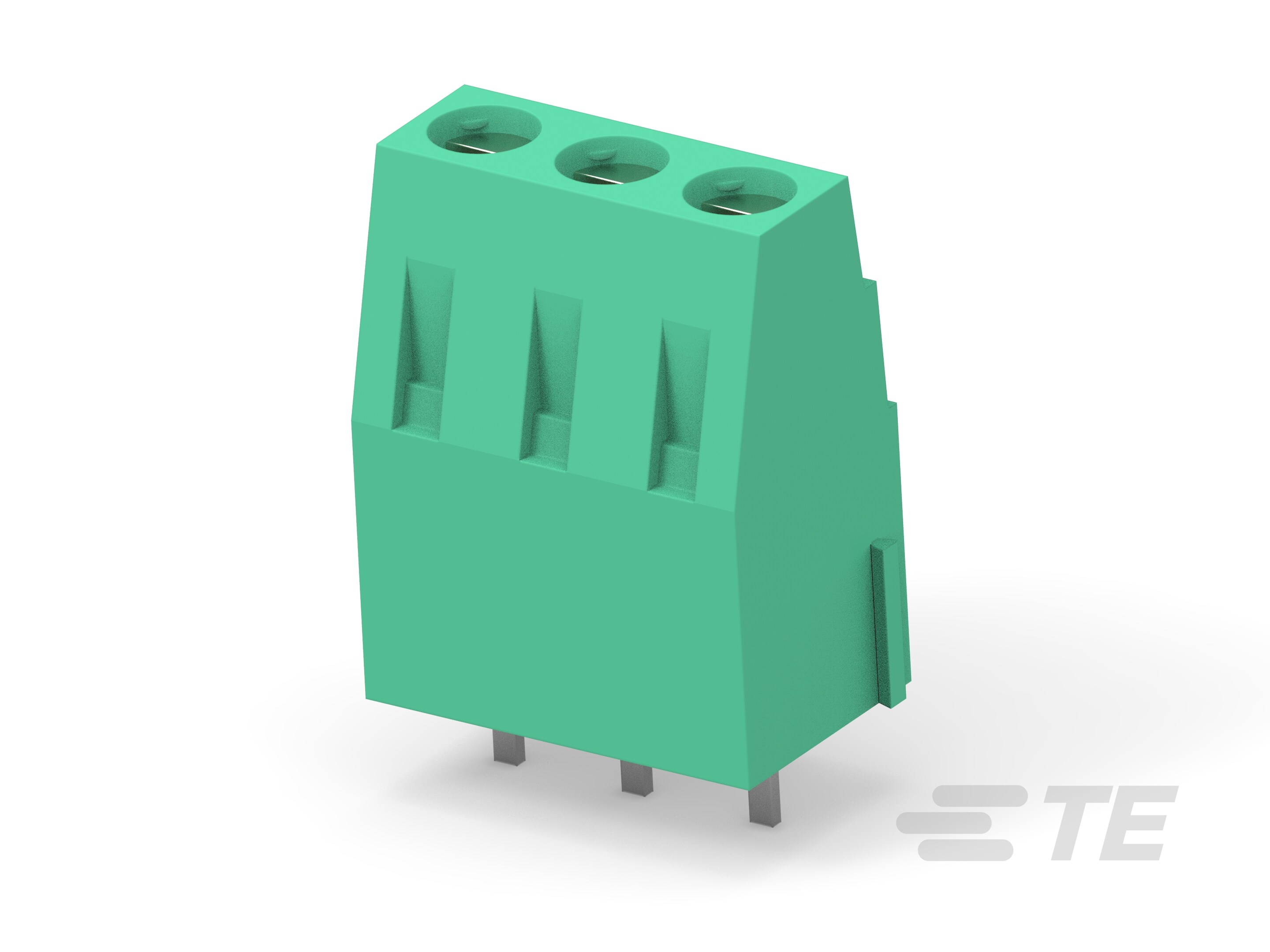

TERM BLK 3POS SIDE ENTRY 5MM PCB
| Part | Wire Termination | Number of Levels | Color | Mounting Type | Pitch | Voltage | Mating Orientation | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Current | Positions Per Level | Features | Clamp Material | Clamp Plating | Screw Thread | Screw Material | Screw Plating | Torque - Screw | Housing Material | Operating Temperature (Min) | Operating Temperature (Max) | Contact Material | Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Rising Cage Clamp Screw | 1 | Green | Through Hole | 0.197 in | 300 V | Horizontal with Board | 12 AWG | 30 AWG | 13.5 A | 3 | Interlocking (Side) Mid Wire Entry Level | Brass | Nickel Plated | M3 | Brass | Nickel Plated | 0.68 Nm | Nylon 6/6 PA66 Polyamide | -40 °C | 105 °C | Brass | Tin Plated |
