2842110 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 6P,2MM,BRK HDR,SRRT,2.8,0.1AU,TB

Part	Contact Shape	Shrouding	Contact Finish - Mating	Contact Length - Post	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Insulation Height	Connector Type	Voltage Rating	Voltage Rating (Type)	Mounting Type	Insulation Color	Contact Finish - Post	Number of Positions Loaded	Pitch - Mating	Insulation Material	Contact Finish Thickness - Mating	Contact Material	Contact Length - Mating	Number of Rows	Material Flammability Rating	Style	Number of Positions	Termination	Current Rating	Fastening Type	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 2842110-6	Square	Unshrouded	Gold	0.11 in	125 °C	-40 °C	Male Pin	0.059 in	Breakaway Header	125 V	DC	Right Angle Through Hole	Black	Tin	All	0.079 in	Thermoplastic	3.94 µin	Copper Alloy	0.157 in	1	UL94 V-0	Board	6	Solder	2 A	Push-Pull	78.7 µin
TE Connectivity AMP Connectors 1-2842110-0	Square	Unshrouded	Gold	0.11 in	125 °C	-40 °C	Male Pin	0.059 in	Breakaway Header	125 V	DC	Right Angle Through Hole	Black	Tin	All	0.079 in	Thermoplastic	3.94 µin	Copper Alloy	0.157 in	1	UL94 V-0	Board	10	Solder	2 A	Push-Pull	78.7 µin

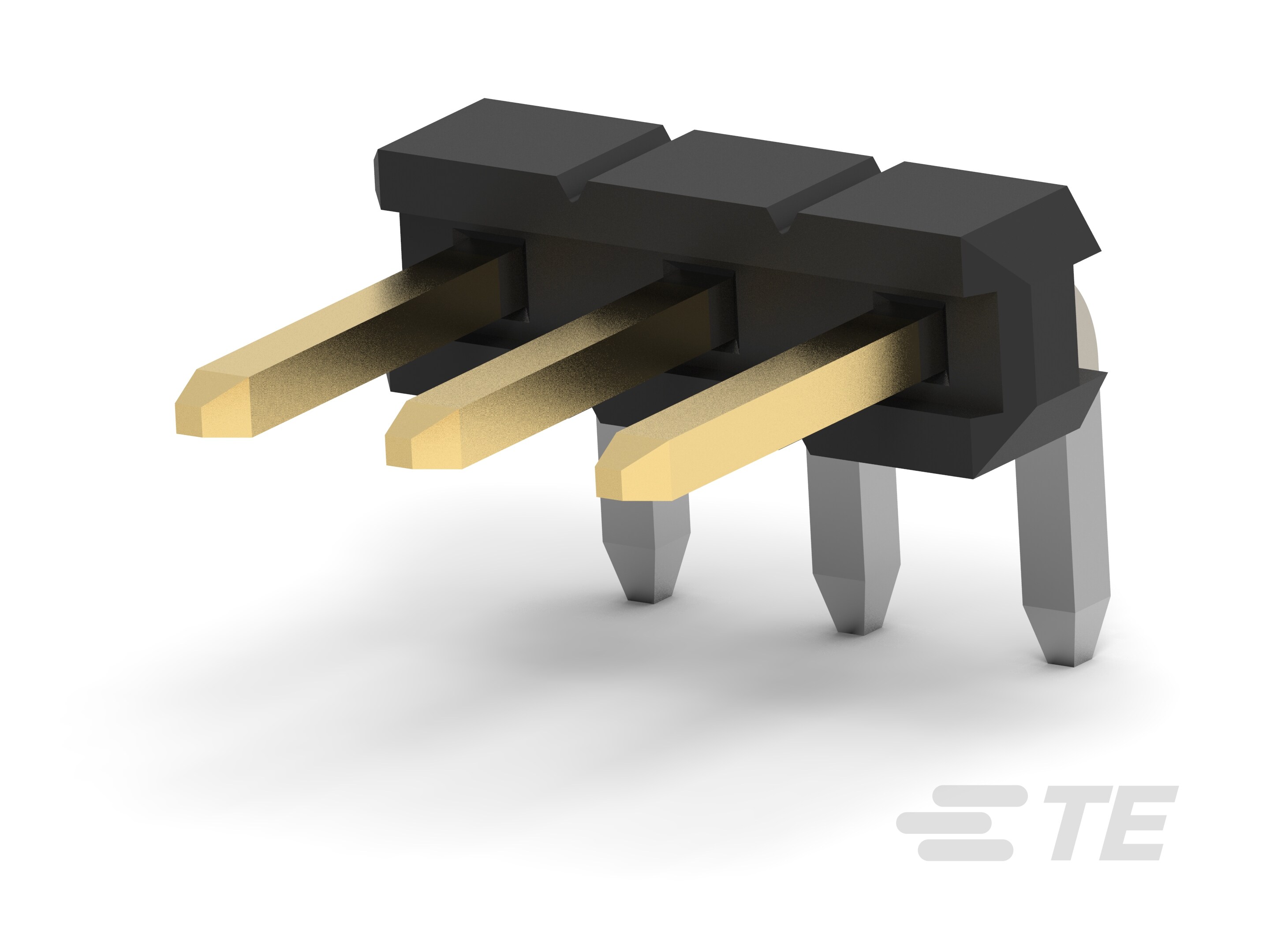

TE Connectivity AMP Connectors 2842110-4	Square	Unshrouded	Gold	0.11 in	125 °C	-40 °C	Male Pin	0.059 in	Breakaway Header	125 V	DC	Right Angle Through Hole	Black	Tin	All	0.079 in	Thermoplastic	3.94 µin	Copper Alloy	0.157 in	1	UL94 V-0	Board	4	Solder	2 A	Push-Pull	78.7 µin
TE Connectivity AMP Connectors 2842110-5	Square	Unshrouded	Gold	0.11 in	125 °C	-40 °C	Male Pin	0.059 in	Breakaway Header	125 V	DC	Right Angle Through Hole	Black	Tin	All	0.079 in	Thermoplastic	3.94 µin	Copper Alloy	0.157 in	1	UL94 V-0	Board	5	Solder	2 A	Push-Pull	78.7 µin
TE Connectivity AMP Connectors 2842110-8	Square	Unshrouded	Gold	0.11 in	125 °C	-40 °C	Male Pin	0.059 in	Breakaway Header	125 V	DC	Right Angle Through Hole	Black	Tin	All	0.079 in	Thermoplastic	3.94 µin	Copper Alloy	0.157 in	1	UL94 V-0	Board	8	Solder	2 A	Push-Pull	78.7 µin
TE Connectivity AMP Connectors 2842110-2	Square	Unshrouded	Gold	0.11 in	125 °C	-40 °C	Male Pin	0.059 in	Breakaway Header	125 V	DC	Right Angle Through Hole	Black	Tin	All	0.079 in	Thermoplastic	3.94 µin	Copper Alloy	0.157 in	1	UL94 V-0	Board	2	Solder	2 A	Push-Pull	78.7 µin
TE Connectivity AMP Connectors 2842110-3	Square	Unshrouded	Gold	0.11 in	125 °C	-40 °C	Male Pin	0.059 in	Breakaway Header	125 V	DC	Right Angle Through Hole	Black	Tin	All	0.079 in	Thermoplastic	3.94 µin	Copper Alloy	0.157 in	1	UL94 V-0	Board	3	Solder	2 A	Push-Pull	78.7 µin
