641121 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
05P MTA156 HDR ASSY FL/RA LF
| Part | Termination | Contact Material | Voltage Rating | Material Flammability Rating | Connector Type | Style | Contact Finish - Mating | Mounting Type | Number of Positions | Number of Rows | Contact Type | Shrouding | Contact Finish Thickness - Mating | Contact Length - Post | Operating Temperature (Min) | Operating Temperature (Max) | Pitch - Mating | Contact Length - Mating | Insulation Material | Insulation Color | Contact Shape | Insulation Height | Number of Positions Loaded | Current Rating | Current Rating | Fastening Type | Contact Finish - Post | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Solder | Copper Alloy | 600 V | UL94 V-0 | Header | Board Cable/Wire | Gold | Right Angle Through Hole | 5 | 1 | Male Pin | Shrouded - 1 Wall | 15 µin | 0.125 in | -55 °C | 105 °C | 0.156 in | 0.4 in | Glass Filled Thermoplastic | Natural | Square | 0.3 in | All | 0 A | Varies by Wire Gauge | Friction Lock | Tin | General Purpose Industrial |
 TE Connectivity AMP Connectors | Solder | Copper Alloy | 600 V | UL94 V-0 | Header | Board Cable/Wire | Gold | Right Angle Through Hole | 6 | 1 | Male Pin | Shrouded - 1 Wall | 15 µin | 0.125 in | -55 °C | 105 °C | 0.156 in | 0.4 in | Glass Filled Thermoplastic | Natural | Square | 0.3 in | All | 0 A | Varies by Wire Gauge | Friction Lock | Tin-Lead | General Purpose Industrial |

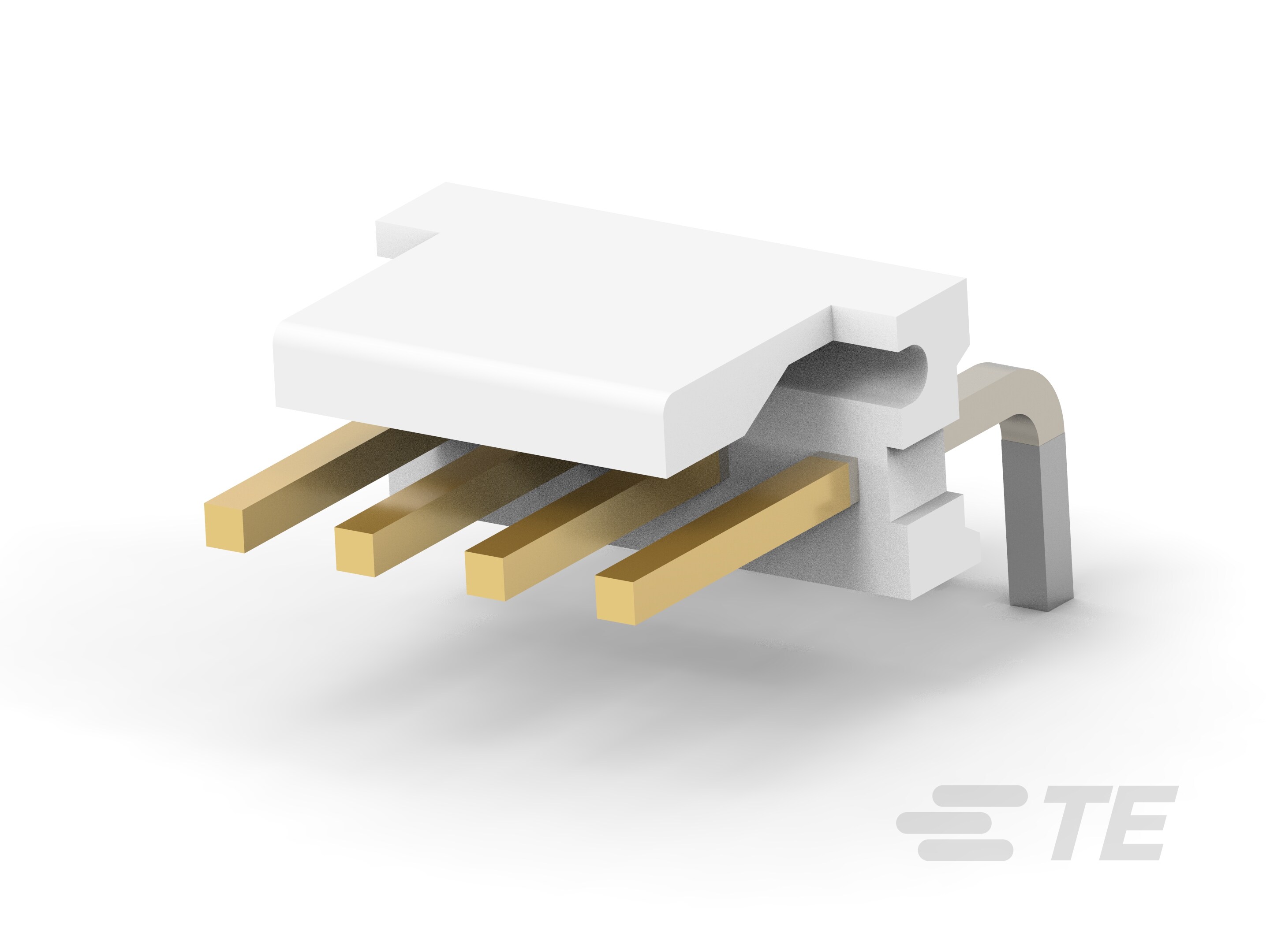

 TE Connectivity AMP Connectors | Solder | Copper Alloy | 600 V | UL94 V-0 | Header | Board Cable/Wire | Gold | Right Angle Through Hole | 4 | 1 | Male Pin | Shrouded - 1 Wall | 15 µin | 0.125 in | -55 °C | 105 °C | 0.156 in | 0.4 in | Glass Filled Thermoplastic | Natural | Square | 0.3 in | All | 0 A | Varies by Wire Gauge | Friction Lock | Tin | General Purpose Industrial |

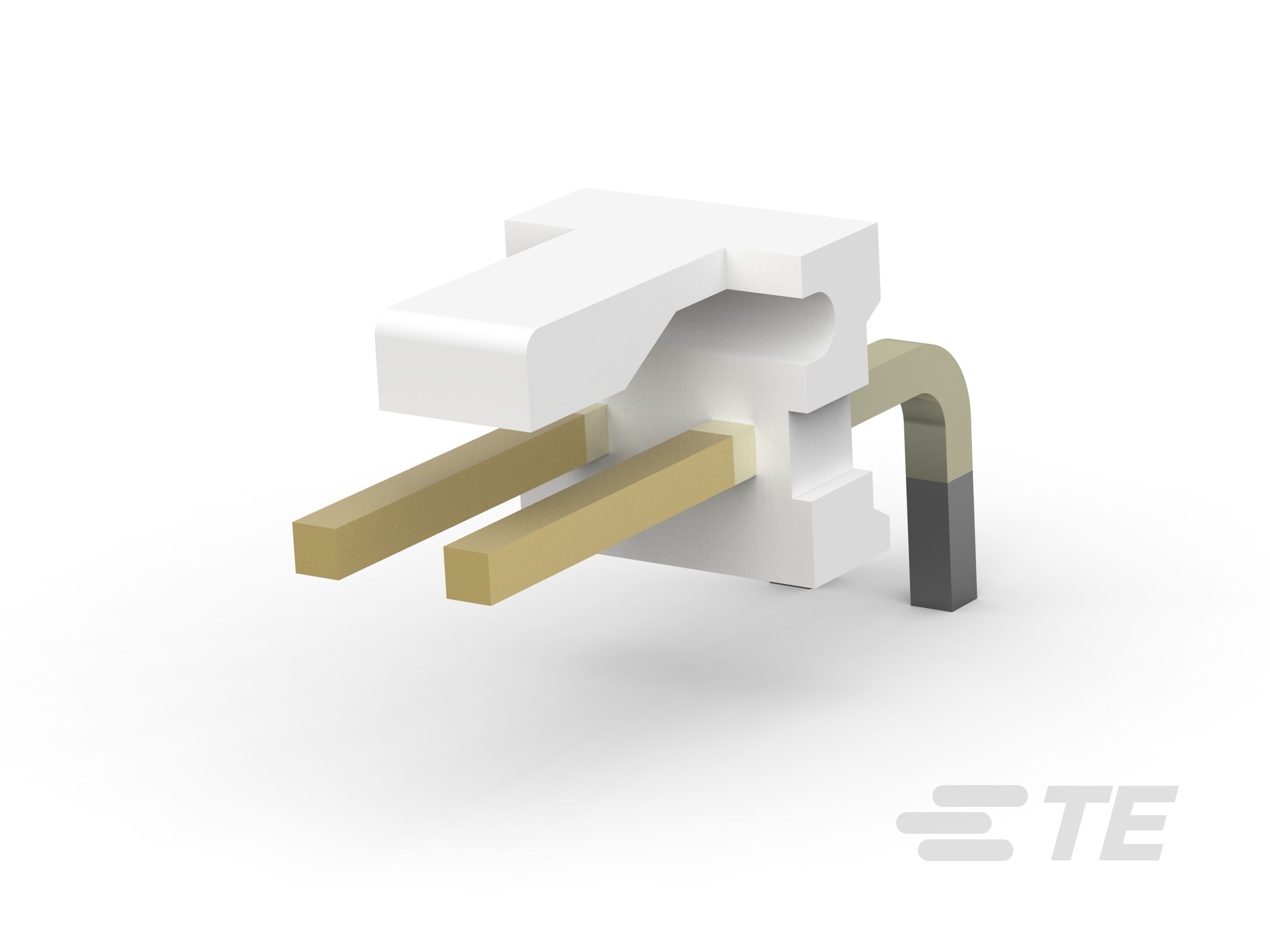

 TE Connectivity AMP Connectors | Solder | Copper Alloy | 600 V | UL94 V-0 | Header | Board Cable/Wire | Gold | Right Angle Through Hole | 2 | 1 | Male Pin | Shrouded - 1 Wall | 15 µin | 0.125 in | -55 °C | 105 °C | 0.156 in | 0.4 in | Glass Filled Thermoplastic | Natural | Square | 0.3 in | All | 0 A | Varies by Wire Gauge | Friction Lock | Tin | General Purpose Industrial |
 TE Connectivity AMP Connectors | Solder | Copper Alloy | 600 V | UL94 V-0 | Header | Board Cable/Wire | Gold | Right Angle Through Hole | 6 | 1 | Male Pin | Shrouded - 1 Wall | 15 µin | 0.125 in | -55 °C | 105 °C | 0.156 in | 0.4 in | Glass Filled Thermoplastic | Natural | Square | 0.3 in | All | 0 A | Varies by Wire Gauge | Friction Lock | Tin | General Purpose Industrial |
