078229 Series

Manufacturer: Molex

Catalog

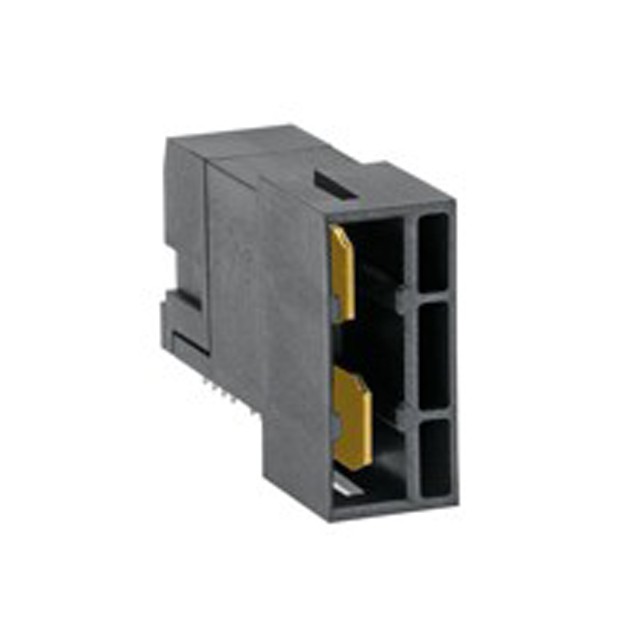

CONN HEADER I-TRAC 4POS EDGE MNT

Part	Voltage Rating	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Contact Finish	Mounting Type	Number of Positions	Power Contacts (Typical)	Number of Rows	Number of Positions Loaded	Features	Termination	Connector Style	Color	Contact Finish Thickness	Connector Type
Molex 0782291033	250 V	UL94 V-0	85 °C	-20 °C	40 A	Gold	Board Edge Right Angle Through Hole	4	4	2	All	Board Guide	Press-Fit	Hold Down Left I-Trac	Black	30 µin	Header Male Blades
Molex 0782292001	250 V	UL94 V-0	85 °C	-20 °C	40 A	Gold	Board Edge Right Angle Through Hole	2	2	2	All	Board Guide	Press-Fit	Hold Down Right I-Trac	Black	30 µin	Header Male Blades
Molex 0782292002	250 V	UL94 V-0	85 °C	-20 °C	40 A	Gold	Board Edge Right Angle Through Hole	2	2	2	All	Board Guide	Press-Fit	Hold Down Right I-Trac	Black	30 µin	Header Male Blades
Molex 0782292003	250 V	UL94 V-0	85 °C	-20 °C	40 A	Gold	Board Edge Right Angle Through Hole	2	2	2	All	Board Guide	Press-Fit	Hold Down Right I-Trac	Black	30 µin	Header Male Blades
Molex 0782291002	250 V	UL94 V-0	85 °C	-20 °C	40 A	Gold	Board Edge Right Angle Through Hole	2	2	2	All	Board Guide	Press-Fit	Hold Down Left I-Trac	Black	30 µin	Header Male Blades
