EL4544 Series

Triple 16x5 Differential Crosspoint Switch Capable of Operation in Single-Ended or Differential Input Modes

Manufacturer: Renesas Electronics Corporation

Catalog

Triple 16x5 Differential Crosspoint Switch Capable of Operation in Single-Ended or Differential Input Modes

Part	-3db Bandwidth	Package / Case	Features	Package Name	Package Width	Package Length	Voltage - Supply, Single (V+) (Range 2) (Minimum)	Voltage - Supply, Single (V+) (Range 1) (Maximum)	Voltage - Supply, Single (V+) (Range 1) (Minimum)	Voltage - Supply, Single (V+) (Range 2) (Maximum)	Number of Channels	Operating Temperature (Max)	Operating Temperature (Min)	Demultiplexer Outputs	Multiplexer Inputs	Mounting Type	Applications
Renesas Electronics Corporation EL4544IGZ	300 MHz	356-BBGA	RGB	356-PBGA	27 mm	27 mm	2.4 V	5.25 V	4.75 V	3.6 V	1	85 °C	-40 °C	5	16	Surface Mount	Video

Catalog

Triple 16x5 Differential Crosspoint Switch Capable of Operation in Single-Ended or Differential Input Modes

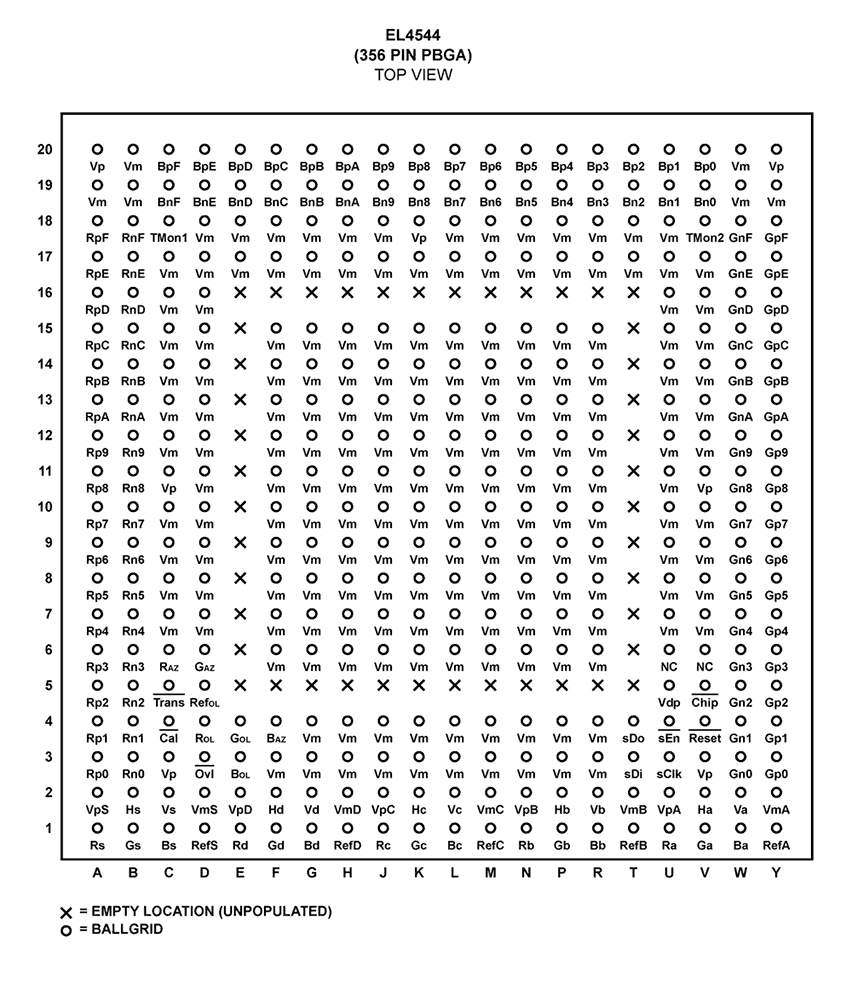

Description

The EL4544 is a high bandwidth 16-channel differential RGB to 5-channel RGB single-ended RGB-HV video crosspoint switch with embedded sync extraction. There are four 16-Channel input muxes, each capable of receiving a complete RGB video signal, and five output muxes, each capable of seeing any one of the four RGB inputs. Additionally, the fifth input mux has an overlay screen on screen function that can be displayed in conjunction with any of the stacked RGB inputs. The EL4544 has a fast disable feature to reduce power consumption. The device also provides a presence of signal indicator by looking for syncs on a designated channel.
