282834 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

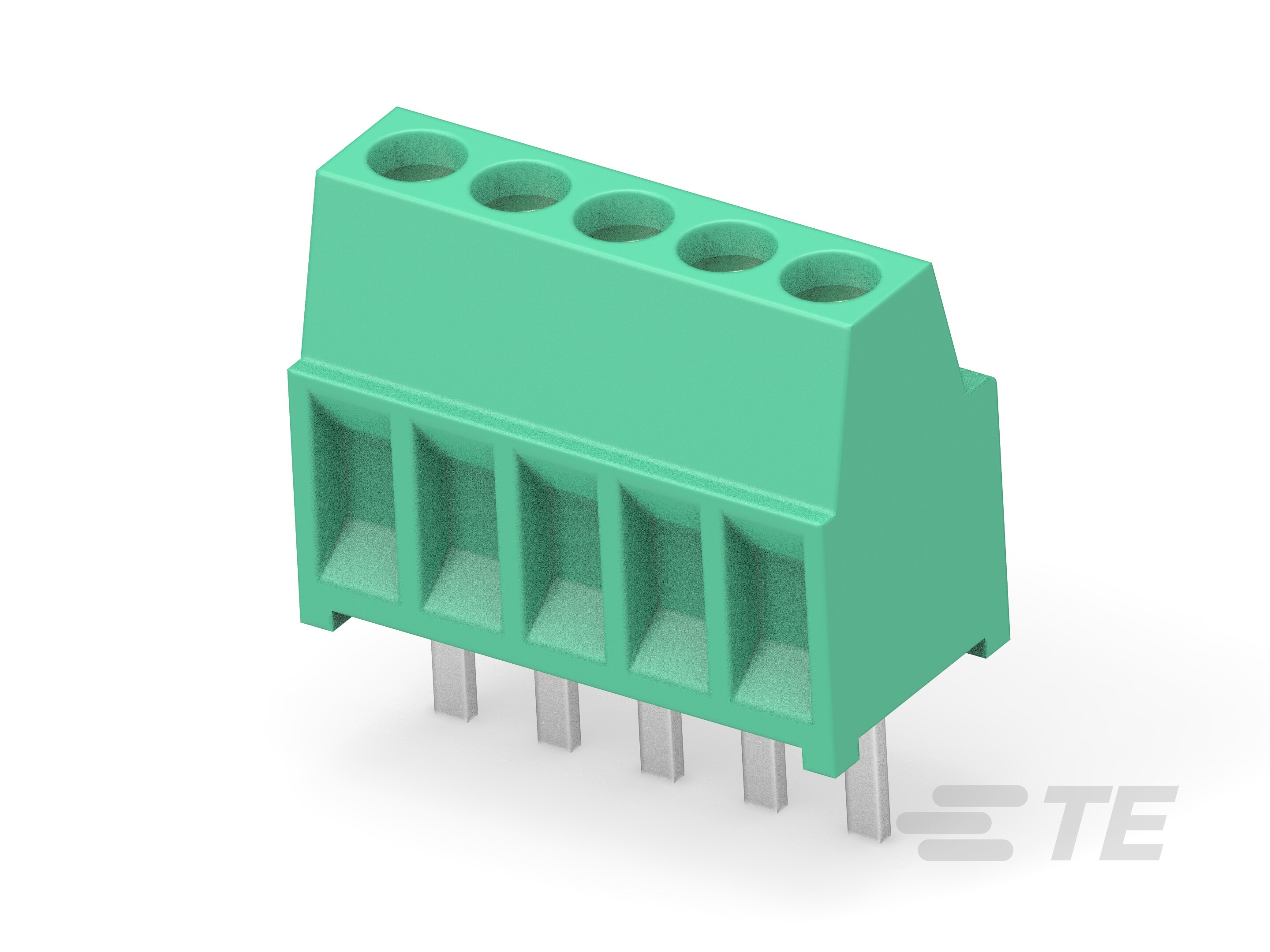

TERM BLK 5P SIDE ENT 2.54MM PCB

Part	Voltage	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Positions Per Level	Color	Current	Mating Orientation	Pitch	Number of Levels	Wire Termination	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Clamp Material	Clamp Plating	Contact Material	Plating	Torque - Screw	Screw Thread	Screw Material	Housing Material
TE Connectivity AMP Connectors 282834-5	150 V	16 AWG	30 AWG	5	Green	10 A	Horizontal with Board	0.1 in	1	Rising Cage Clamp Screw	Through Hole	-40 °C	105 °C	Brass	Nickel Plated	Brass	Tin Plated	0.2 Nm	M1.6	Stainless Steel	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 282834-3	150 V	16 AWG	30 AWG	3	Green	10 A	Horizontal with Board	0.1 in	1	Rising Cage Clamp Screw	Through Hole	-40 °C	105 °C	Brass	Nickel Plated	Brass	Tin Plated	0.2 Nm	M1.6	Stainless Steel	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 282834-6	150 V	16 AWG	30 AWG	6	Green	10 A	Horizontal with Board	0.1 in	1	Rising Cage Clamp Screw	Through Hole	-40 °C	105 °C	Brass	Nickel Plated	Brass	Tin Plated	0.2 Nm	M1.6	Stainless Steel	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 1-282834-3	150 V	16 AWG	30 AWG	13	Green	10 A	Horizontal with Board	0.1 in	1	Rising Cage Clamp Screw	Through Hole	-40 °C	105 °C	Brass	Nickel Plated	Brass	Tin Plated	0.2 Nm	M1.6	Stainless Steel	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 282834-9	150 V	16 AWG	30 AWG	9	Green	10 A	Horizontal with Board	0.1 in	1	Rising Cage Clamp Screw	Through Hole	-40 °C	105 °C	Brass	Nickel Plated	Brass	Tin Plated	0.2 Nm	M1.6	Stainless Steel	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 282834-8	150 V	16 AWG	30 AWG	8	Green	10 A	Horizontal with Board	0.1 in	1	Rising Cage Clamp Screw	Through Hole	-40 °C	105 °C	Brass	Nickel Plated	Brass	Tin Plated	0.2 Nm	M1.6	Stainless Steel	Nylon 6/6 PA66 Polyamide
