051382 Series

Manufacturer: Molex

Catalog

CONN RCPT HSG 6POS 2.00MM

Part	Color	Pitch	Mounting Type	Number of Rows	Contact Type	Number of Positions	Insulation Material	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Termination	Fastening Type	Note
Molex 0513820600	White	0.079 in	Free Hanging (In-Line)	1	Female Socket	6	Nylon 6/6 Polyamide (PA66)	Receptacle	-40 °C	105 °C	Crimp	Latch Lock	Contacts Not Included
Molex 0513821100	White	0.079 in	Free Hanging (In-Line)	1	Female Socket	11	Nylon 6/6 Polyamide (PA66)	Receptacle	-40 °C	105 °C	Crimp	Latch Lock	Contacts Not Included
Molex 0513821500	White	0.079 in	Free Hanging (In-Line)	1	Female Socket	15	Nylon 6/6 Polyamide (PA66)	Receptacle	-40 °C	105 °C	Crimp	Latch Lock	Contacts Not Included
Molex 0513821000	White	0.079 in	Free Hanging (In-Line)	1	Female Socket	10	Nylon 6/6 Polyamide (PA66)	Receptacle	-40 °C	105 °C	Crimp	Latch Lock	Contacts Not Included
Molex 0513820811	Gray	0.079 in	Free Hanging (In-Line)	1	Female Socket	8	Nylon 6/6 Polyamide (PA66)	Receptacle	-40 °C	105 °C	Crimp	Latch Lock	Contacts Not Included
Molex 0513820201	Black	0.079 in	Free Hanging (In-Line)	1	Female Socket	2	Nylon 6/6 Polyamide (PA66)	Receptacle	-40 °C	105 °C	Crimp	Latch Lock	Contacts Not Included

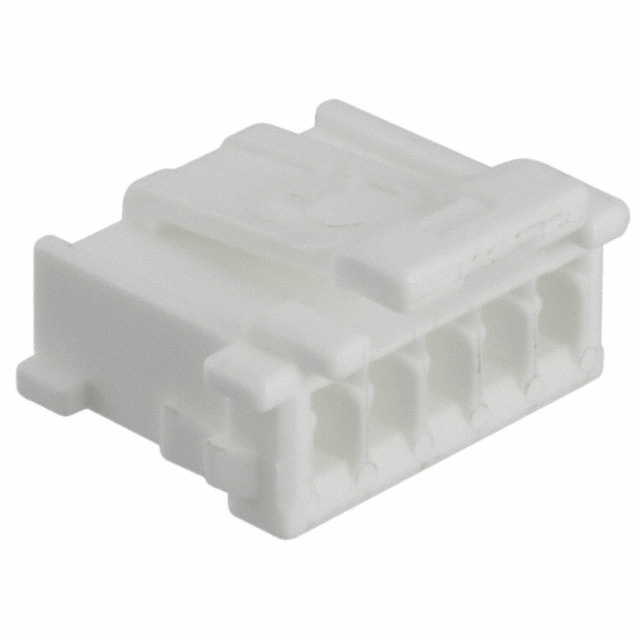

Molex 0513820500	White	0.079 in	Free Hanging (In-Line)	1	Female Socket	5	Nylon 6/6 Polyamide (PA66)	Receptacle	-40 °C	105 °C	Crimp	Latch Lock	Contacts Not Included

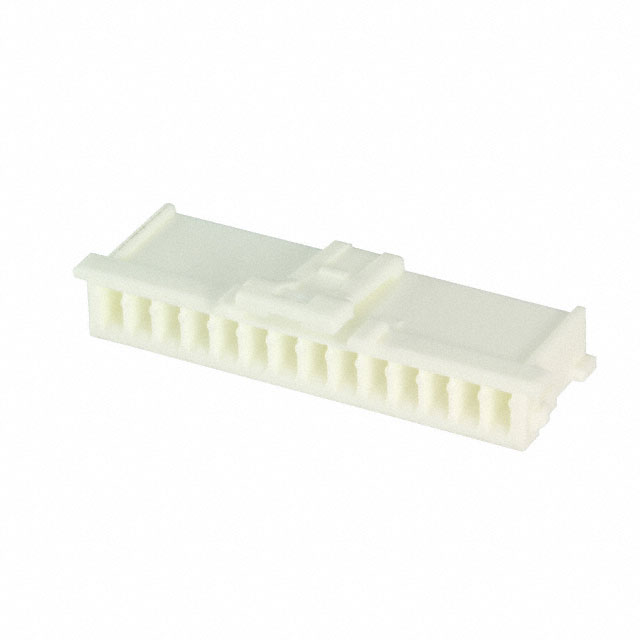

Molex 0513821400	White	0.079 in	Free Hanging (In-Line)	1	Female Socket	14	Nylon 6/6 Polyamide (PA66)	Receptacle	-40 °C	105 °C	Crimp	Latch Lock	Contacts Not Included
Molex 0513821200	White	0.079 in	Free Hanging (In-Line)	1	Female Socket	12	Nylon 6/6 Polyamide (PA66)	Receptacle	-40 °C	105 °C	Crimp	Latch Lock	Contacts Not Included
Molex 0513820700	White	0.079 in	Free Hanging (In-Line)	1	Female Socket	7	Nylon 6/6 Polyamide (PA66)	Receptacle	-40 °C	105 °C	Crimp	Latch Lock	Contacts Not Included
