044428 Series

Manufacturer: Molex

Catalog

CONN WIRE TO BOARD HDR 18 POS 3MM SOLDER RA SIDE ENTRY THRU-HOLE TRAY

Part	Features	Insulation Height	Number of Rows	Number of Positions	Fastening Type	Number of Positions Loaded	Row Spacing - Mating	Insulation Material	Material Flammability Rating	Contact Shape	Contact Length - Post	Connector Type	Contact Finish - Mating	Contact Type	Style	Shrouding	Contact Finish - Post	Contact Material	Insulation Color	Pitch - Mating	Contact Finish Thickness - Mating	Mounting Type	Termination	Contact Finish Thickness - Post	Applications
Molex 0444281801	Blind Mating Board Lock	0.469 in	2	18	Push-Pull	All	0.118 in	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Square	0.138 in	Header	Tin	Male Pin	Board Board or Cable	Shrouded - 4 Wall	Tin	Brass	Black	0.118 in	200 Ąin	Right Angle Through Hole	Solder	200 µin	General Purpose Medical Military Telecommunications

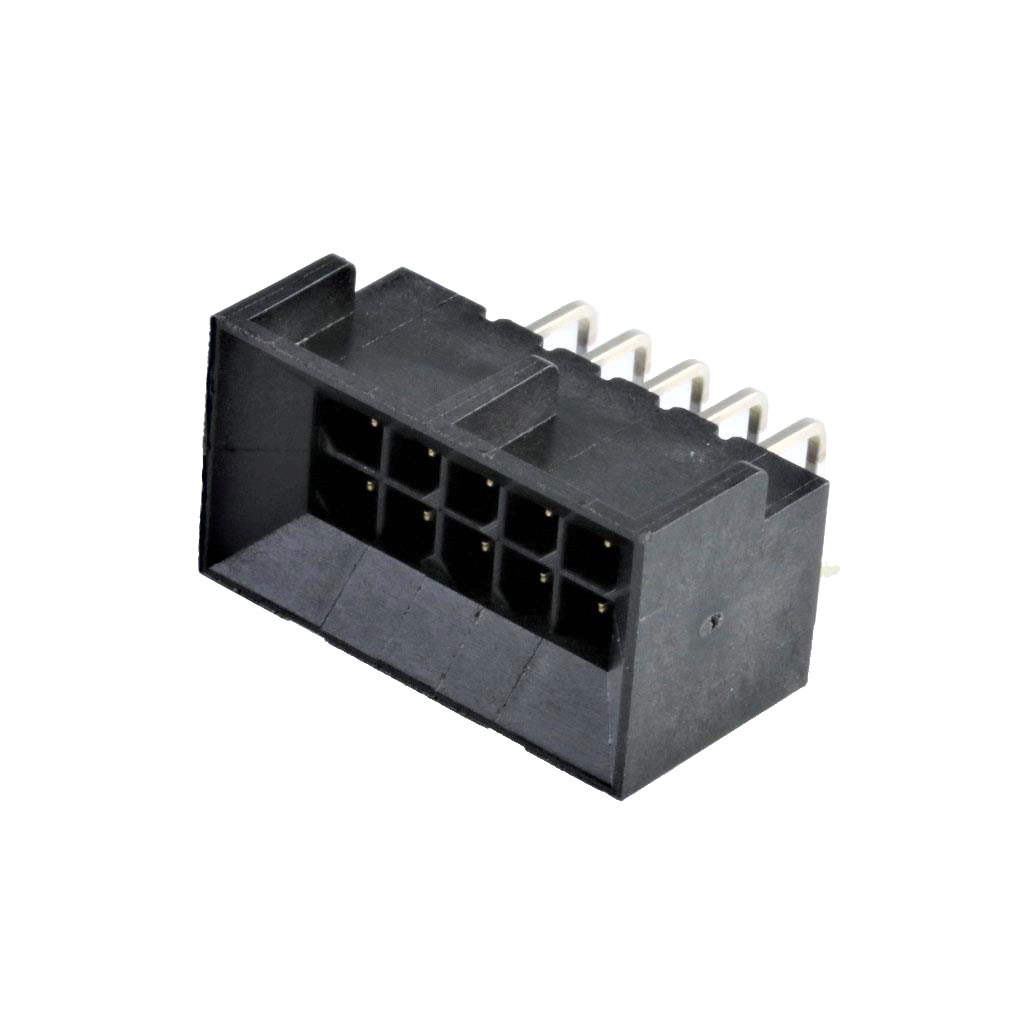

Molex 0444281007	Blind Mating Board Lock	0.469 in	2	10	Push-Pull	All	0.118 in	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Square	0.138 in	Header	Tin	Male Pin	Board Board or Cable	Shrouded - 4 Wall	Tin	Brass	Black	0.118 in	100 µin	Right Angle Through Hole	Solder	100 Ąin	General Purpose Medical Military Telecommunications
Molex 0444282206	Blind Mating	0.469 in	2	22	Push-Pull	All	0.118 in	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Square	0.138 in	Header	Gold	Male Pin	Board Board or Cable	Shrouded - 4 Wall	Tin	Brass	Black	0.118 in	30 µin	Right Angle Through Hole	Solder	100 Ąin	General Purpose Medical Military Telecommunications
Molex 0444282204	Blind Mating	0.469 in	2	22	Push-Pull	All	0.118 in	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Square	0.138 in	Header	Tin	Male Pin	Board Board or Cable	Shrouded - 4 Wall	Tin	Brass	Black	0.118 in	200 Ąin	Right Angle Through Hole	Solder	200 µin	General Purpose Medical Military Telecommunications
Molex 0444281682	Blind Mating Board Lock	0.469 in	2	16	Push-Pull	All	0.118 in	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Square	0.138 in	Header	Gold	Male Pin	Board Board or Cable	Shrouded - 4 Wall	Tin	Brass	Black	0.118 in	15 µin	Right Angle Through Hole	Solder	100 Ąin	General Purpose Medical Military Telecommunications
Molex 0444281402	Blind Mating Board Lock	0.469 in	2	14	Push-Pull	All	0.118 in	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Square	0.138 in	Header	Gold	Male Pin	Board Board or Cable	Shrouded - 4 Wall	Tin	Brass	Black	0.118 in	15 µin	Right Angle Through Hole	Solder	100 Ąin	General Purpose Medical Military Telecommunications
Molex 0444281002	Blind Mating Board Lock	0.469 in	2	10	Push-Pull	All	0.118 in	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Square	0.138 in	Header	Gold	Male Pin	Board Board or Cable	Shrouded - 4 Wall	Tin	Brass	Black	0.118 in	15 µin	Right Angle Through Hole	Solder	100 Ąin	General Purpose Medical Military Telecommunications
Molex 0444280406	Blind Mating	0.469 in	2	4	Push-Pull	All	0.118 in	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Square	0.138 in	Header	Gold	Male Pin	Board Board or Cable	Shrouded - 4 Wall	Tin	Brass	Black	0.118 in	30 µin	Right Angle Through Hole	Solder	100 Ąin	General Purpose Medical Military Telecommunications
Molex 0444282003	Blind Mating Board Lock	0.469 in	2	20	Push-Pull	All	0.118 in	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Square	0.138 in	Header	Gold	Male Pin	Board Board or Cable	Shrouded - 4 Wall	Tin	Brass	Black	0.118 in	30 µin	Right Angle Through Hole	Solder	100 Ąin	General Purpose Medical Military Telecommunications
Molex 0444280803	Blind Mating Board Lock	0.469 in	2	8	Push-Pull	All	0.118 in	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Square	0.138 in	Header	Gold	Male Pin	Board Board or Cable	Shrouded - 4 Wall	Tin	Brass	Black	0.118 in	30 µin	Right Angle Through Hole	Solder	100 Ąin	General Purpose Medical Military Telecommunications
