1969729 Series

Catalog

HEADERS & WIRE HOUSINGS EP2.5 SHROUDED HDR A SSY 15P VERT W/OBOSS

Part	Current Rating	Connector Type	Pitch - Mating	Contact Length - Post	Insulation Height	Style	Number of Positions	Material Flammability Rating	Contact Finish - Post	Contact Length - Mating	Contact Finish - Mating	Contact Shape	Insulation Color	Number of Positions Loaded	Shrouding	Voltage Rating	Contact Type	Termination	Insulation Material	Fastening Type	Mounting Type	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Applications
TE Connectivity AMP Connectors 1-1969729-5	4.2 A	Header	0.098 in	0.134 in	0.346 in	Board Cable/Wire	15	UL94 V-0	Tin	0.142 in	Tin	Circular	Natural	All	Shrouded - 4 Wall	250 V	Male Pin	Kinked Pin Solder	Thermoplastic	Locking Ramp	Through Hole	1	-55 °C	105 °C	Brass	General Purpose Industrial Lighting

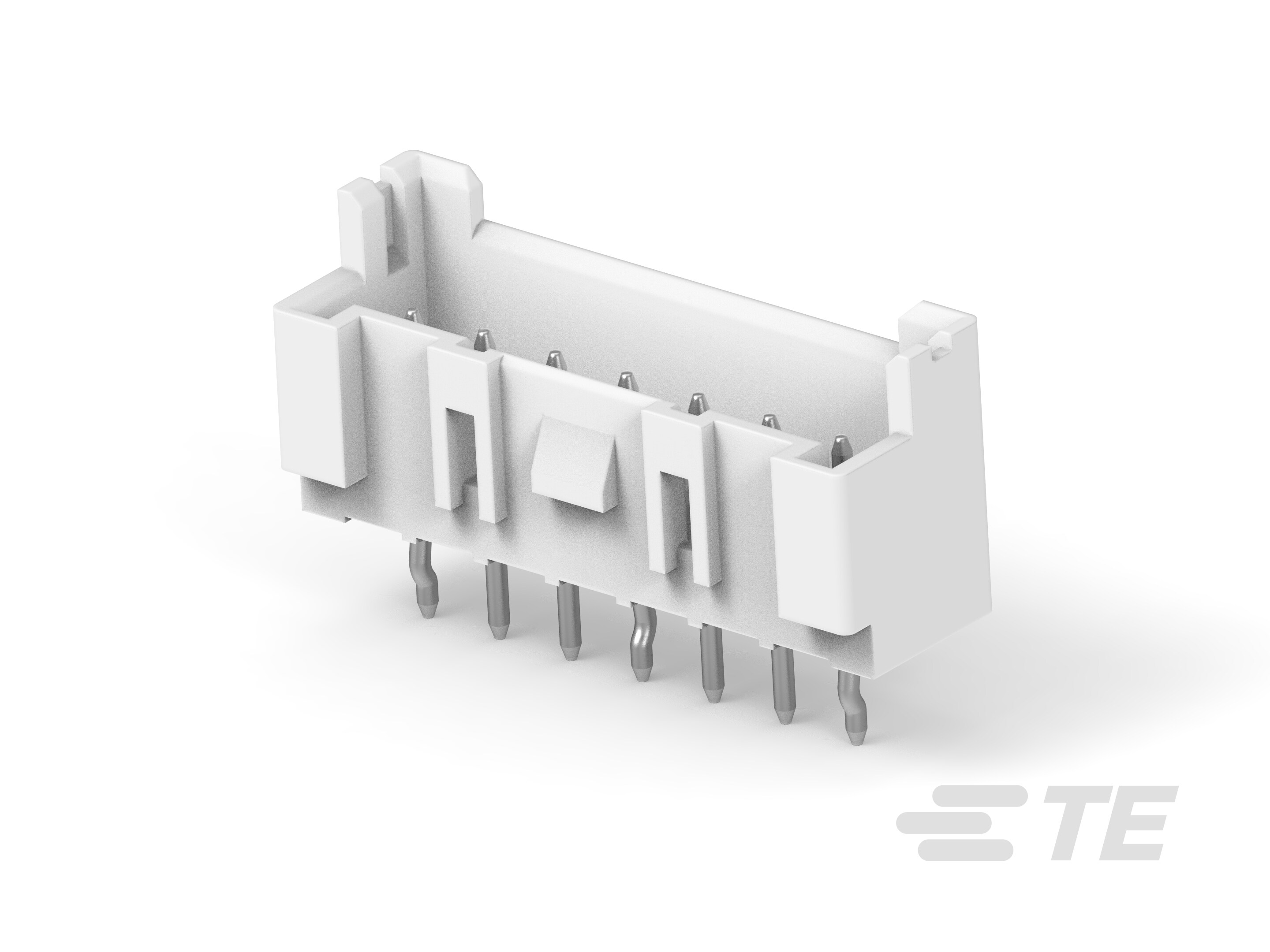

TE Connectivity AMP Connectors 1969729-7	4.2 A	Header	0.098 in	0.134 in	0.346 in	Board Cable/Wire	7	UL94 V-0	Tin	0.141 in	Tin	Circular	Natural	All	Shrouded - 4 Wall	250 V	Male Pin	Kinked Pin Solder	Thermoplastic	Locking Ramp	Through Hole	1	-55 °C	105 °C	Brass	General Purpose Industrial Lighting
TE Connectivity AMP Connectors 1-1969729-0	4.2 A	Header	0.098 in	0.134 in	0.346 in	Board Cable/Wire	10	UL94 V-0	Tin	0.141 in	Tin	Circular	Natural	All	Shrouded - 4 Wall	250 V	Male Pin	Kinked Pin Solder	Thermoplastic	Locking Ramp	Through Hole	1	-55 °C	105 °C	Brass	General Purpose Industrial Lighting
