2323743 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HOUSING, PLUG, GWT, 14P, DUAL ROW, EP2.5

Part	Note	Insulation Material	Fastening Type	Features	Color	Number of Rows	Connector Type	Row Spacing	Number of Positions	Contact Type	Contact Termination	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Pitch

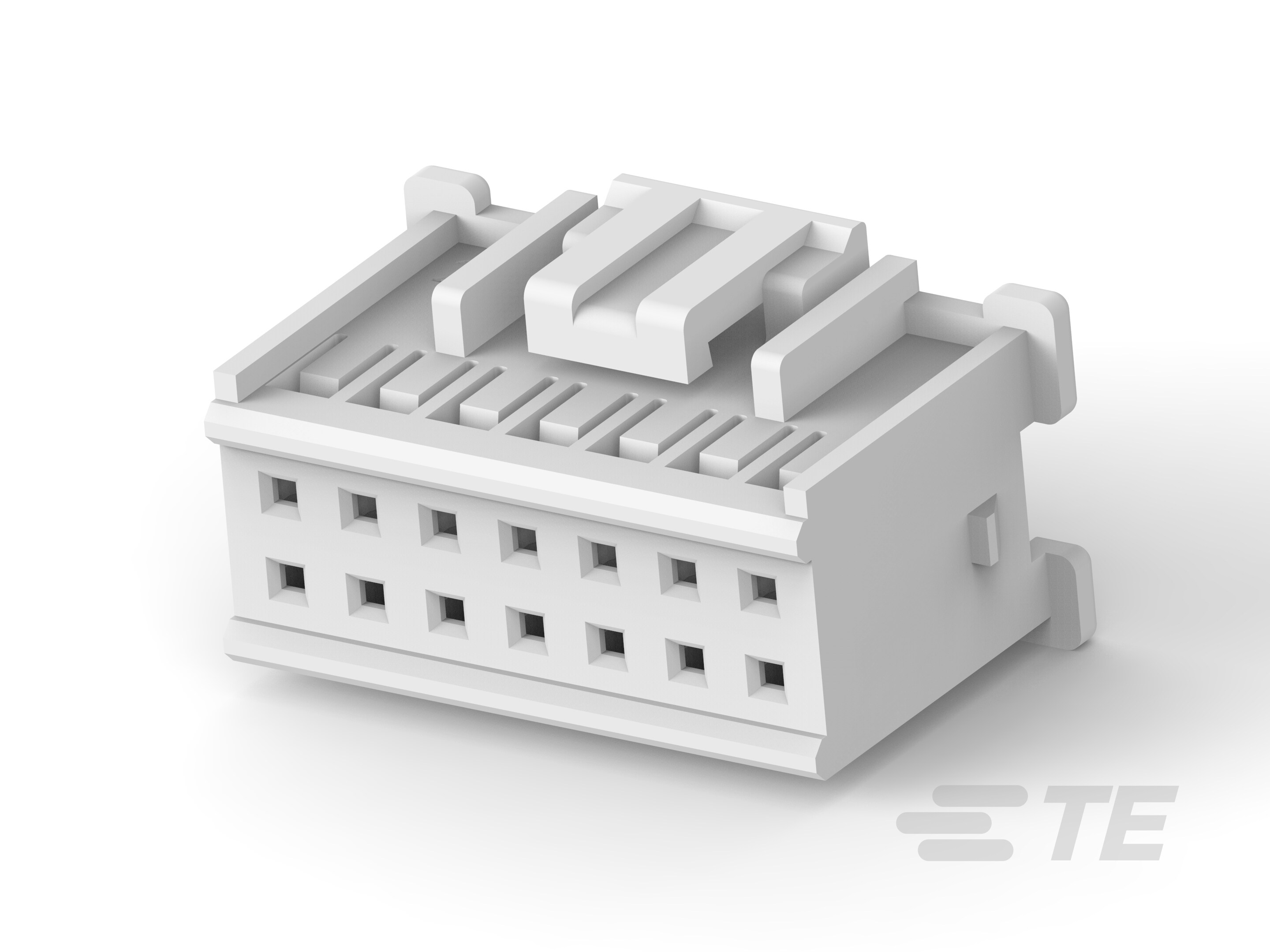

TE Connectivity AMP Connectors 1-2323743-4	Contacts Not Included	Nylon 6/6 Polyamide (PA66)	Latch Lock	Glow Wire Compliant	Natural	2	Plug	0.098 in	14	Female Socket	Crimp	-55 °C	105 °C	Free Hanging (In-Line)	0.098 in

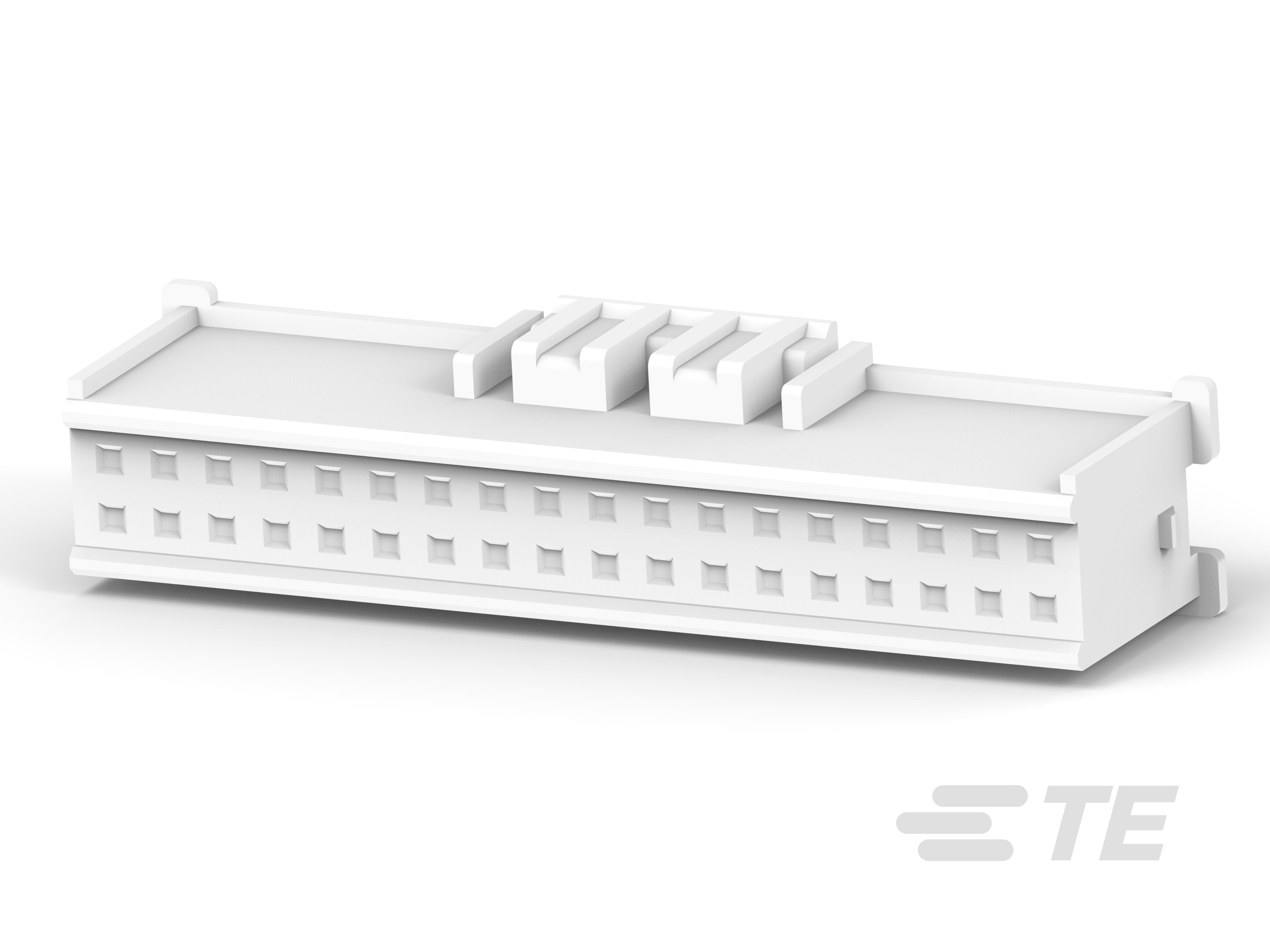

TE Connectivity AMP Connectors 3-2323743-6	Contacts Not Included	Nylon 6/6 Polyamide (PA66)	Latch Lock	Glow Wire Compliant	Natural	2	Plug	0.098 in	36	Female Socket	Crimp	-55 °C	105 °C	Free Hanging (In-Line)	0.098 in
TE Connectivity AMP Connectors 2-2323743-6	Contacts Not Included	Nylon 6/6 Polyamide (PA66)	Latch Lock	Glow Wire Compliant	Natural	2	Plug	0.098 in	26	Female Socket	Crimp	-55 °C	105 °C	Free Hanging (In-Line)	0.098 in
TE Connectivity AMP Connectors 3-2323743-4	Contacts Not Included	Nylon 6/6 Polyamide (PA66)	Latch Lock	Glow Wire Compliant	Natural	2	Plug	0.098 in	34	Female Socket	Crimp	-55 °C	105 °C	Free Hanging (In-Line)	0.098 in
TE Connectivity AMP Connectors 3-2323743-2	Contacts Not Included	Nylon 6/6 Polyamide (PA66)	Latch Lock	Glow Wire Compliant	Natural	2	Plug	0.098 in	32	Female Socket	Crimp	-55 °C	105 °C	Free Hanging (In-Line)	0.098 in
TE Connectivity AMP Connectors 4-2323743-0	Contacts Not Included	Nylon 6/6 Polyamide (PA66)	Latch Lock	Glow Wire Compliant	Natural	2	Plug	0.098 in	40	Female Socket	Crimp	-55 °C	105 °C	Free Hanging (In-Line)	0.098 in
TE Connectivity AMP Connectors 2-2323743-0	Contacts Not Included	Nylon 6/6 Polyamide (PA66)	Latch Lock	Glow Wire Compliant	Natural	2	Plug	0.098 in	20	Female Socket	Crimp	-55 °C	105 °C	Free Hanging (In-Line)	0.098 in

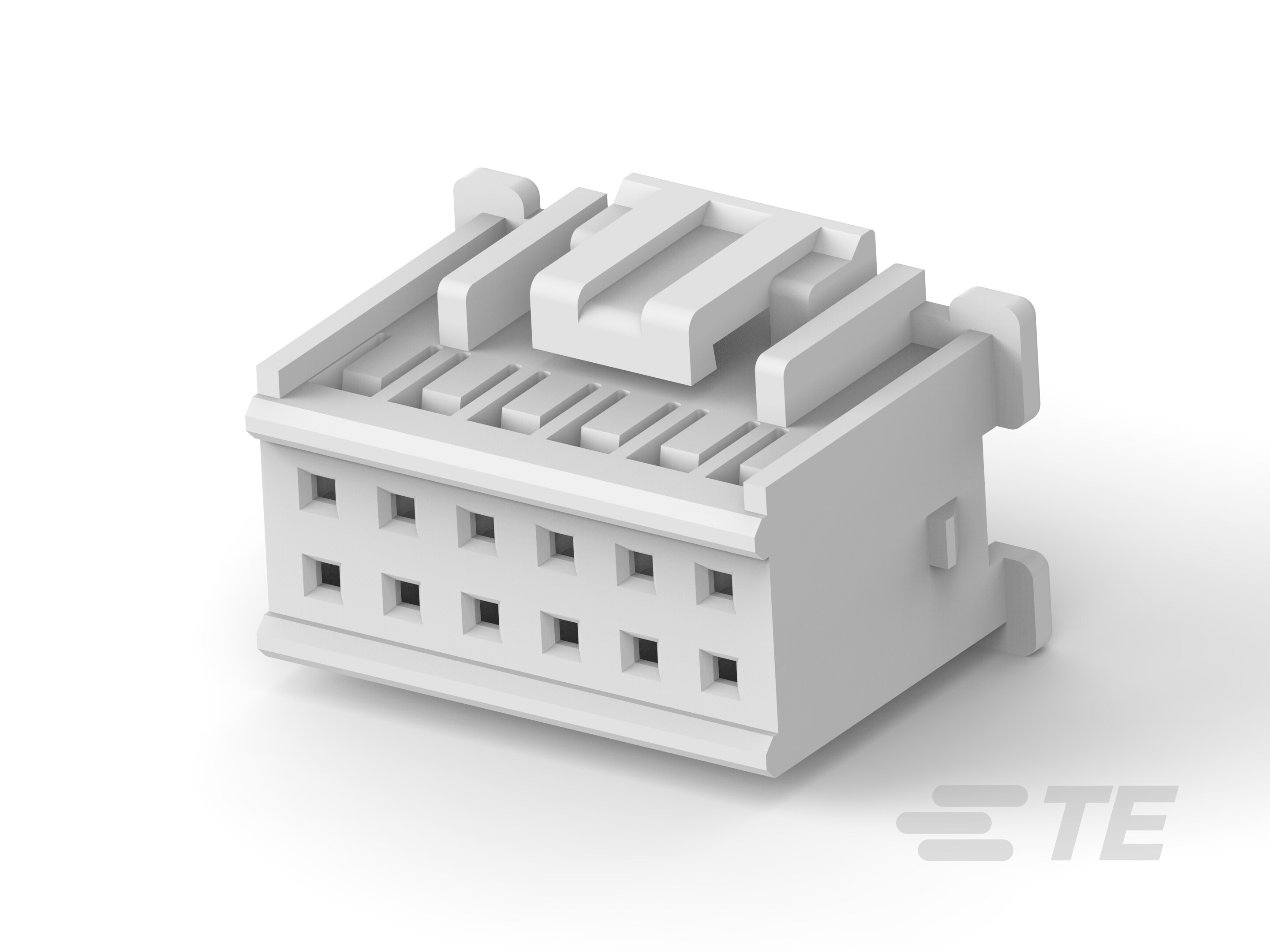

TE Connectivity AMP Connectors 1-2323743-2	Contacts Not Included	Nylon 6/6 Polyamide (PA66)	Latch Lock	Glow Wire Compliant	Natural	2	Plug	0.098 in	12	Female Socket	Crimp	-55 °C	105 °C	Free Hanging (In-Line)	0.098 in
TE Connectivity AMP Connectors 1-2323743-0	Contacts Not Included	Nylon 6/6 Polyamide (PA66)	Latch Lock	Glow Wire Compliant	Natural	2	Plug	0.098 in	10	Female Socket	Crimp	-55 °C	105 °C	Free Hanging (In-Line)	0.098 in
