59025-2-V Series

59025-2-V-02-A SENS

Catalog

59025-2-V-02-A SENS

Part	Actuator Material	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Output Type	Type	Must Operate (Length)	Package / Case
LITTELFUSE 59025-2-V-05-A	Magnet	-20 °C	105 °C	Wire Leads	SPST-NO	Reed Switch	4 mm	Probe
LITTELFUSE 59025-2-V-02-A	Magnet	-20 °C	105 °C	Wire Leads	SPST-NO	Reed Switch	4 mm	Probe

Catalog

59025-2-V-02-A SENS

Description

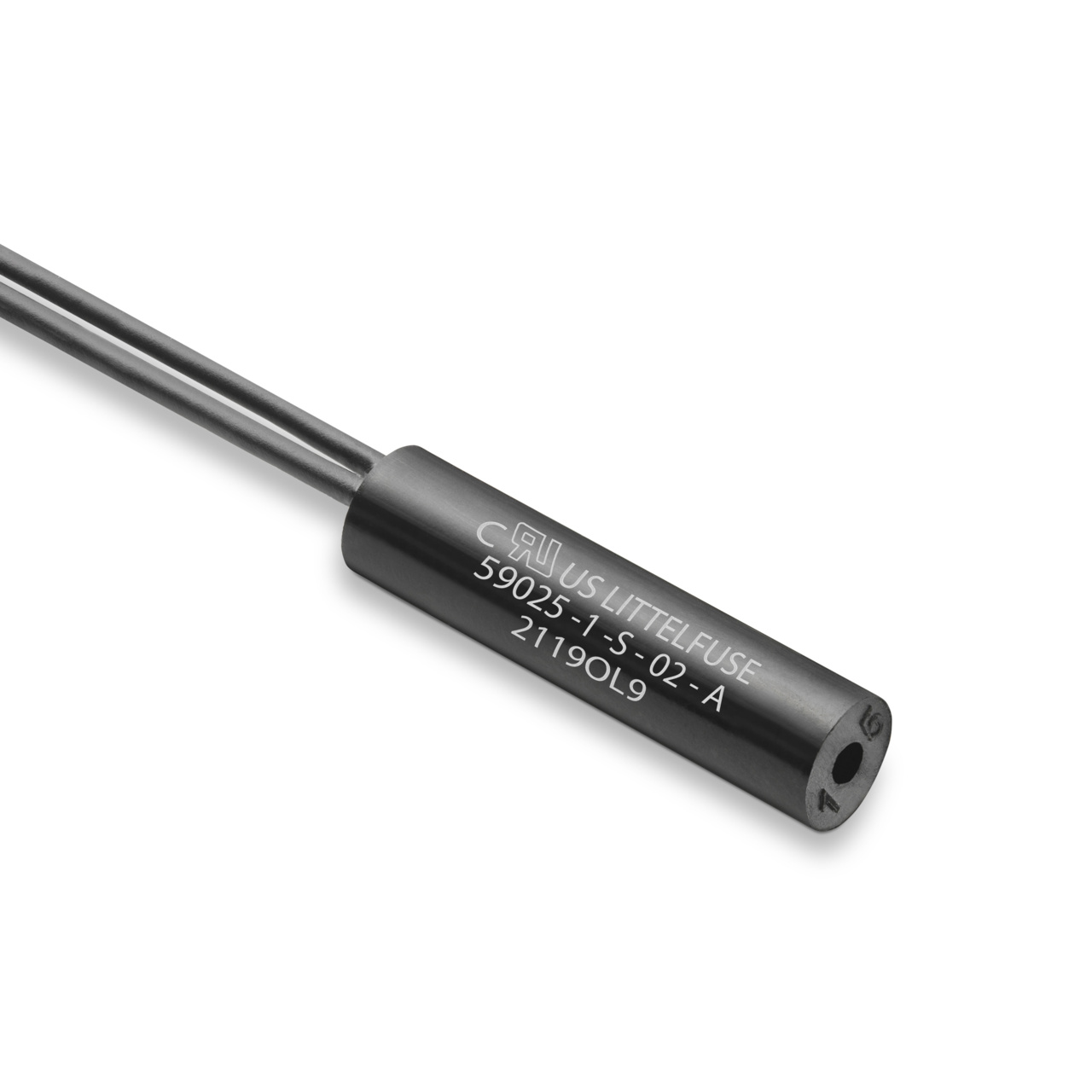

The 59025 Reed Sensor is a small cylindrical reed sensor, 25.4 mm (L) x 6.22 mm (Dia.) (1.00" x 0.245"), with a choice of normally open, normally closed or change-over contacts. It is capable of switching up to 265 Vac/300 Vdc at 10 VA. The 59025 Reed Sensor is available with a range of sensitivity and cable length options. It is well suited for use in a wide range of industrial, appliances, or IoT proximity sensing applications. It functions best with the 57025 actuator.
