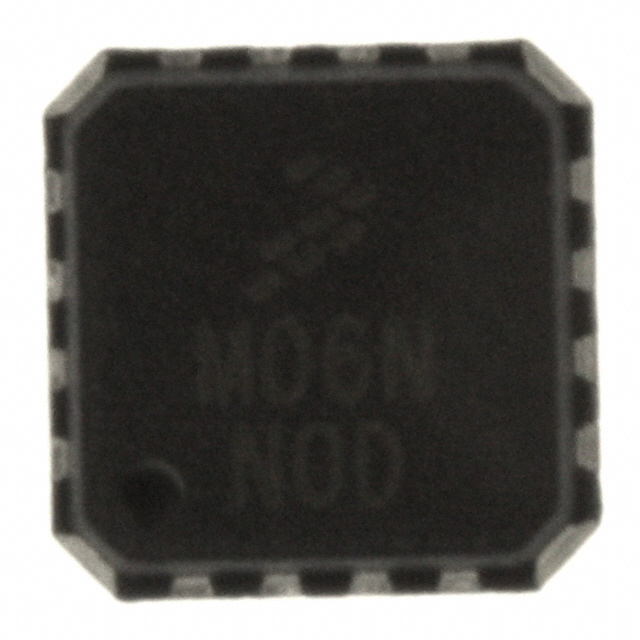

MMG3006 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
RF AMPLIFIER IC, 17.5 DB GAIN / 6.6 DB NOISE, 400 MHZ TO 2.4 GHZ, 5 V, QFN-16
| Part | RF Type | Current - Supply | P1dB | Voltage - Supply | Mounting Type | Noise Figure | Test Frequency | Frequency (Min) | Frequency (Max) | Package / Case | Gain | Package Width | Package Name | Package Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | Cellular PCS PHS WLL | 850 mA | 33 dBm | 5 VDC | Surface Mount | 6.6 dB | 900 MHz | 400 MHz | 2.4 GHz | 16-VQFN Exposed Pad | 17.5 dB | 4 mm | 16-QFN | 4 mm |
