532434 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

BTB CONN, R/A RCPT, 200POS, 4ROW, 2.54MM ROHS COMPLIANT: YES

Part	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Connector Style	Contact Finish	Number of Positions	Number of Positions Loaded	Color	Connector Type	Number of Rows	Termination	Pitch	Contact Finish Thickness	Mounting Type	Features
TE Connectivity AMP Connectors 532434-7	UL94 V-0	125 °C	-65 °C	High Density (HDC HDI HPC)	Gold	200	All	Natural	Female Sockets Receptacle	4	Solder	0.1 in	30 µin	Right Angle Through Hole	Mating Guide
TE Connectivity AMP Connectors 532434-1	UL94 V-0	125 °C	-65 °C	High Density (HDC HDI HPC)	Gold	100	All	Natural	Female Sockets Receptacle	4	Solder	0.1 in	30 µin	Right Angle Through Hole	Mating Guide
TE Connectivity AMP Connectors 1-532434-1	UL94 V-0	125 °C	-65 °C	High Density (HDC HDI HPC)	Gold	280	All	Natural	Female Sockets Receptacle	4	Solder	0.1 in	30 µin	Right Angle Through Hole	Mating Guide
TE Connectivity AMP Connectors 532434-6	UL94 V-0	125 °C	-65 °C	High Density (HDC HDI HPC)	Gold	180	All	Natural	Female Sockets Receptacle	4	Solder	0.1 in	30 µin	Right Angle Through Hole	Mating Guide
TE Connectivity AMP Connectors 1-532434-2	UL94 V-0	125 °C	-65 °C	High Density (HDC HDI HPC)	Gold	300	All	Natural	Female Sockets Receptacle	4	Solder	0.1 in	30 µin	Right Angle Through Hole	Mating Guide
TE Connectivity AMP Connectors 1-532434-0	UL94 V-0	125 °C	-65 °C	High Density (HDC HDI HPC)	Gold	260	All	Natural	Female Sockets Receptacle	4	Solder	0.1 in	30 µin	Right Angle Through Hole	Mating Guide

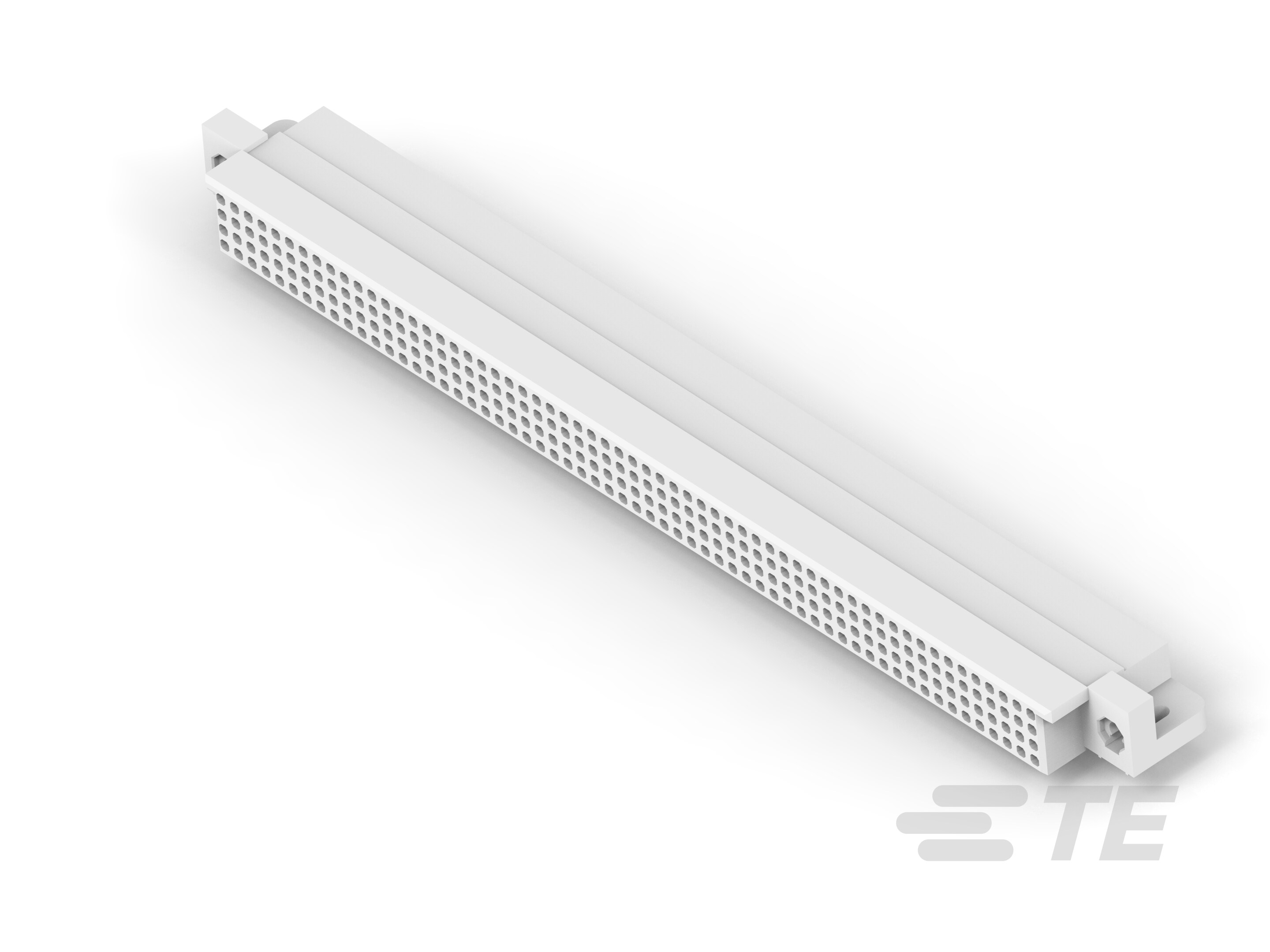

TE Connectivity AMP Connectors 532434-9	UL94 V-0	125 °C	-65 °C	High Density (HDC HDI HPC)	Gold	240	All	Natural	Female Sockets Receptacle	4	Solder	0.1 in	30 µin	Right Angle Through Hole	Mating Guide
