LN31 Series

Catalog

LED GREEN DIFFUSED 5MM ROUND T/H

Part	Package / Case	Configuration	Lens Size	Lens Size (Code)	Supplier Device Package Size	Supplier Device Package Shape	Package Name	Wavelength - Peak	Millicandela Rating	Height (Max)	Color	Current - Test	Lens Transparency	Lens Style	Voltage - Forward (Vf) (Typ)	Mounting Type	Lens Color	Supplier Device Package
Panasonic Electronic Components LN31GPX	Radial	Standard	5 mm	T-1 3/4	5 mm	Round	5mm Round	565 nm	15 mcd	8.85 mm	Green	20 mA	Diffused	Domed Top Round	2.2 V	Through Hole	Green
Panasonic Electronic Components LN31GPSL	Radial	Standard	5 mm	T-1 3/4	5 mm	Round	5mm Round	565 nm	15 mcd	7.7 mm	Green	20 mA	Diffused	Domed Top Round	2.2 V	Through Hole	Green
Panasonic Electronic Components LN31GPHL	Radial	Standard	5 mm	T-1 3/4	5 mm	Round	5mm Round	565 nm	15 mcd	8.85 mm	Green	20 mA	Diffused	Domed Top Round	2.2 V	Through Hole	Green

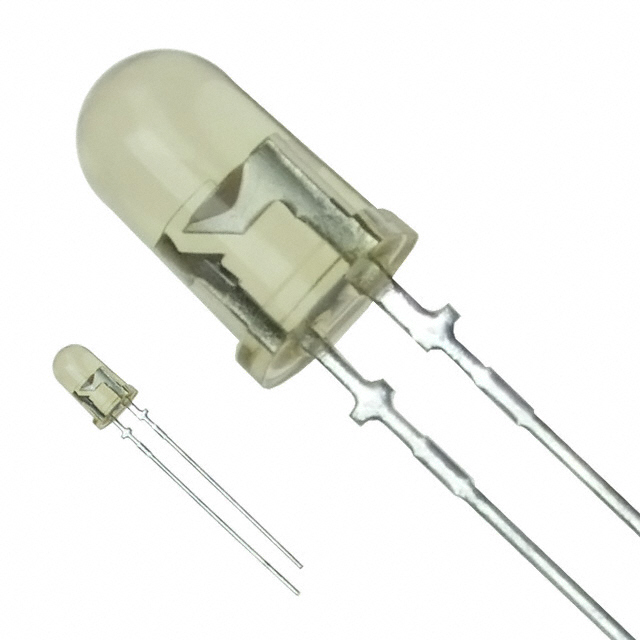

Panasonic Electronic Components LN31YCPH	Radial	Standard	5 mm	T-1 3/4	5 mm	Round	5mm Round	563 nm	56 mcd	8.85 mm	Green	20 mA		Domed Top Round	2.2 V	Through Hole

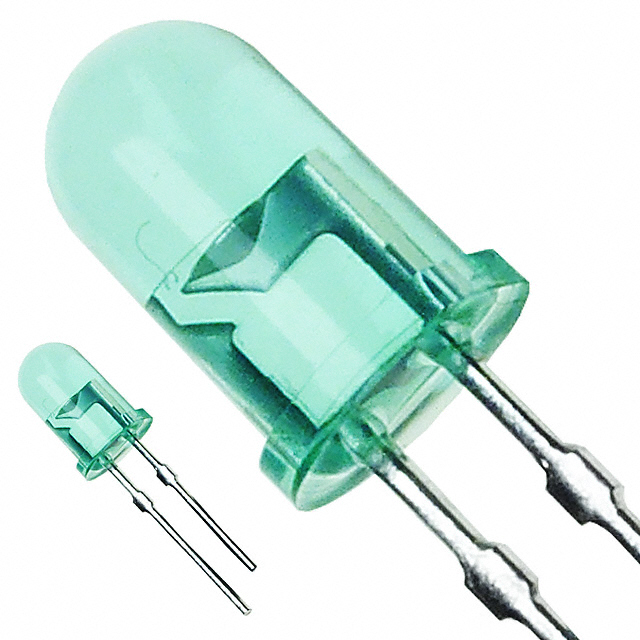

Panasonic Electronic Components LN31GCPHL	Radial	Standard	5 mm	T-1 3/4				565 nm	20 mcd	11.65 mm	Green	20 mA	Clear	Domed Top Round	2.2 V	Through Hole	Green	5 mm
