284065 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

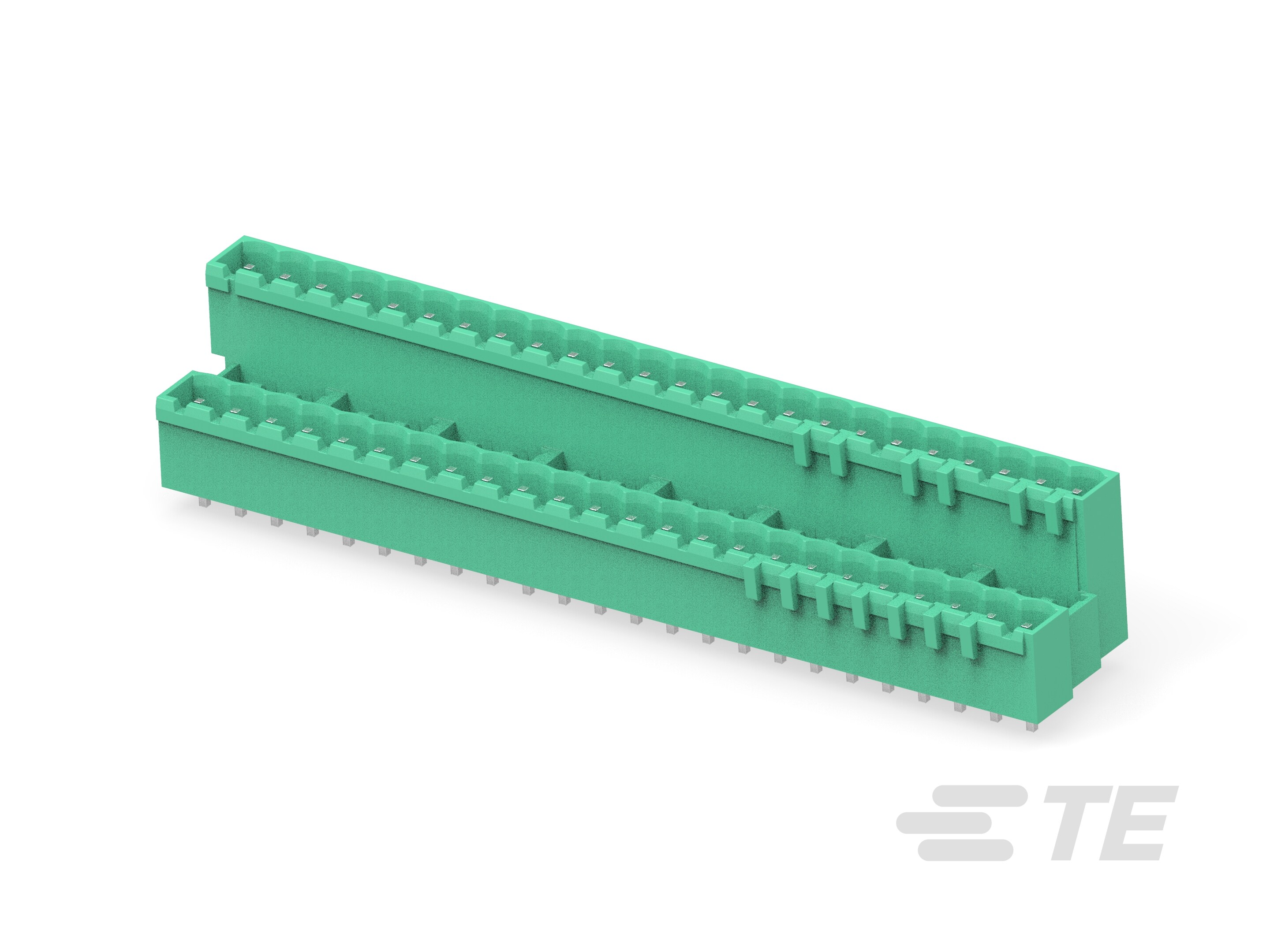

TERM BLOCK HDR 32POS VERT 5.08MM
| Part | Insulation Height | Housing Material | Contact Tail Length | Material Flammability Rating | Contact Material | Pitch | Type | Color | Number of Positions | Current - UL | Operating Temperature (Min) | Operating Temperature (Max) | Termination Style | Header Orientation | Mounting Type | Voltage - UL | Contact Mating Finish | Positions Per Level | Number of Levels | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.869 in | Nylon 6/6 PA66 Polyamide | 0.138 in | UL94 V-0 | Copper Alloy | 5.08 mm | Header Male Pins Shrouded (4 Side) | Green | 32 | 12 A | -40 °C | 110 °C | Solder | Vertical | Through Hole | 300 V | Tin | 16 | 2 | Interlocking (Side) |
 TE Connectivity AMP Connectors | 0.869 in | Nylon 6/6 PA66 Polyamide | 0.138 in | UL94 V-0 | Copper Alloy | 5.08 mm | Header Male Pins Shrouded (4 Side) | Green | 22 | 12 A | -40 °C | 110 °C | Solder | Vertical | Through Hole | 300 V | Tin | 11 | 2 | Interlocking (Side) |
 TE Connectivity AMP Connectors | 0.869 in | Nylon 6/6 PA66 Polyamide | 0.138 in | UL94 V-0 | Copper Alloy | 5.08 mm | Header Male Pins Shrouded (4 Side) | Green | 20 | 12 A | -40 °C | 110 °C | Solder | Vertical | Through Hole | 300 V | Tin | 10 | 2 | Interlocking (Side) |
 TE Connectivity AMP Connectors | 0.869 in | Nylon 6/6 PA66 Polyamide | 0.138 in | UL94 V-0 | Copper Alloy | 5.08 mm | Header Male Pins Shrouded (4 Side) | Green | 16 | 12 A | -40 °C | 110 °C | Solder | Vertical | Through Hole | 300 V | Tin | 8 | 2 | Interlocking (Side) |
TE Connectivity AMP Connectors | 0.869 in | Nylon 6/6 PA66 Polyamide | 0.138 in | UL94 V-0 | Copper Alloy | 5.08 mm | Header Male Pins Shrouded (4 Side) | Green | 46 | 12 A | -40 °C | 110 °C | Solder | Vertical | Through Hole | 300 V | Tin | 23 | 2 | Interlocking (Side) |
 TE Connectivity AMP Connectors | 0.869 in | Nylon 6/6 PA66 Polyamide | 0.138 in | UL94 V-0 | Copper Alloy | 5.08 mm | Header Male Pins Shrouded (4 Side) | Green | 24 pos | 12 A | -40 °C | 110 °C | Solder | Vertical | Through Hole | 300 V | Tin | 12 | 2 | Interlocking (Side) |
 TE Connectivity AMP Connectors | 0.869 in | Nylon 6/6 PA66 Polyamide | 0.138 in | UL94 V-0 | Copper Alloy | 5.08 mm | Header Male Pins Shrouded (4 Side) | Green | 48 | 12 A | -40 °C | 110 °C | Solder | Vertical | Through Hole | 300 V | Tin | 24 | 2 | Interlocking (Side) |
TE Connectivity AMP Connectors | 0.869 in | Nylon 6/6 PA66 Polyamide | 0.138 in | UL94 V-0 | Copper Alloy | 5.08 mm | Header Male Pins Shrouded (4 Side) | Green | 42 | 12 A | -40 °C | 110 °C | Solder | Vertical | Through Hole | 300 V | Tin | 21 | 2 | Interlocking (Side) |
TE Connectivity AMP Connectors | 0.869 in | Nylon 6/6 PA66 Polyamide | 0.138 in | UL94 V-0 | Copper Alloy | 5.08 mm | Header Male Pins Shrouded (4 Side) | Green | 42 | 12 A | -40 °C | 110 °C | Solder | Vertical | Through Hole | 300 V | Tin | 21 | 2 | Interlocking (Side) |
 TE Connectivity AMP Connectors | 0.869 in | Nylon 6/6 PA66 Polyamide | 0.138 in | UL94 V-0 | Copper Alloy | 5.08 mm | Header Male Pins Shrouded (4 Side) | Green | 12 | 12 A | -40 °C | 110 °C | Solder | Vertical | Through Hole | 300 V | Tin | 6 | 2 | Interlocking (Side) |
