TZB4Z030 Series

Catalog

CAP TRIMMER 1.4-3PF 100V SMD

Part	Height - Seated (Max)	Features	Dielectric Material	Mounting Type	Capacitance Range (Max)	Capacitance Range (Min)	Q	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Rated	Size / Dimension Length	Size / Dimension Width	Adjustment Type
Murata Electronics TZB4Z030AA10R01	0.126 in	General Purpose	Ceramic	Surface Mount	3 pF	1.4 pF	300	85 °C	-25 °C	100 VAC/DC	0.177 in	0.157 in	Top
Murata Electronics TZB4Z030EA10R00	0.126 in	General Purpose	Ceramic	Surface Mount	3 pF	1.4 pF	300	85 °C	-25 °C	100 VAC/DC	0.177 in	0.157 in	Bottom Adjustment

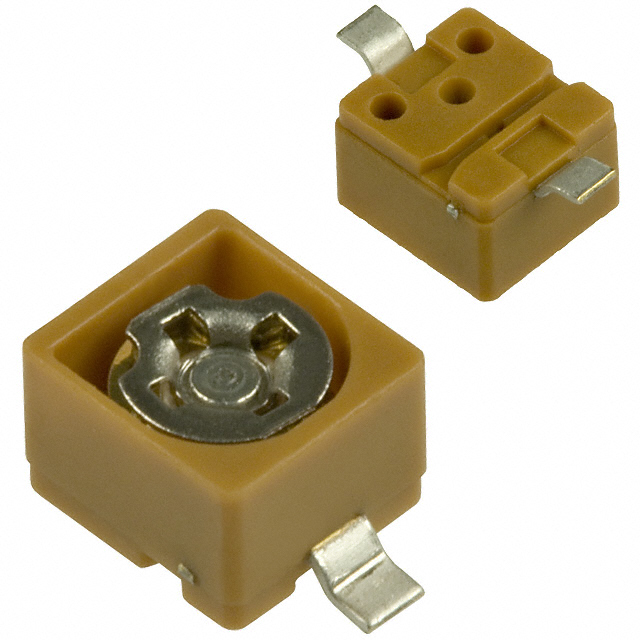

Murata Electronics TZB4Z030BA10R00	0.126 in	General Purpose	Ceramic	Surface Mount	3 pF	1.4 pF	300	85 °C	-25 °C	100 VAC/DC	0.177 in	0.157 in	Top
Murata Electronics TZB4Z030BA10R01	0.126 in	General Purpose	Ceramic	Surface Mount	3 pF	1.4 pF	300	85 °C	-25 °C	100 VAC/DC	0.177 in	0.157 in	Top
Murata Electronics TZB4Z030BB10R00	0.126 in	General Purpose	Ceramic	Surface Mount	3 pF	1.4 pF	300	85 °C	-25 °C	100 VAC/DC	0.177 in	0.157 in	Top
