1776301 Series

Catalog

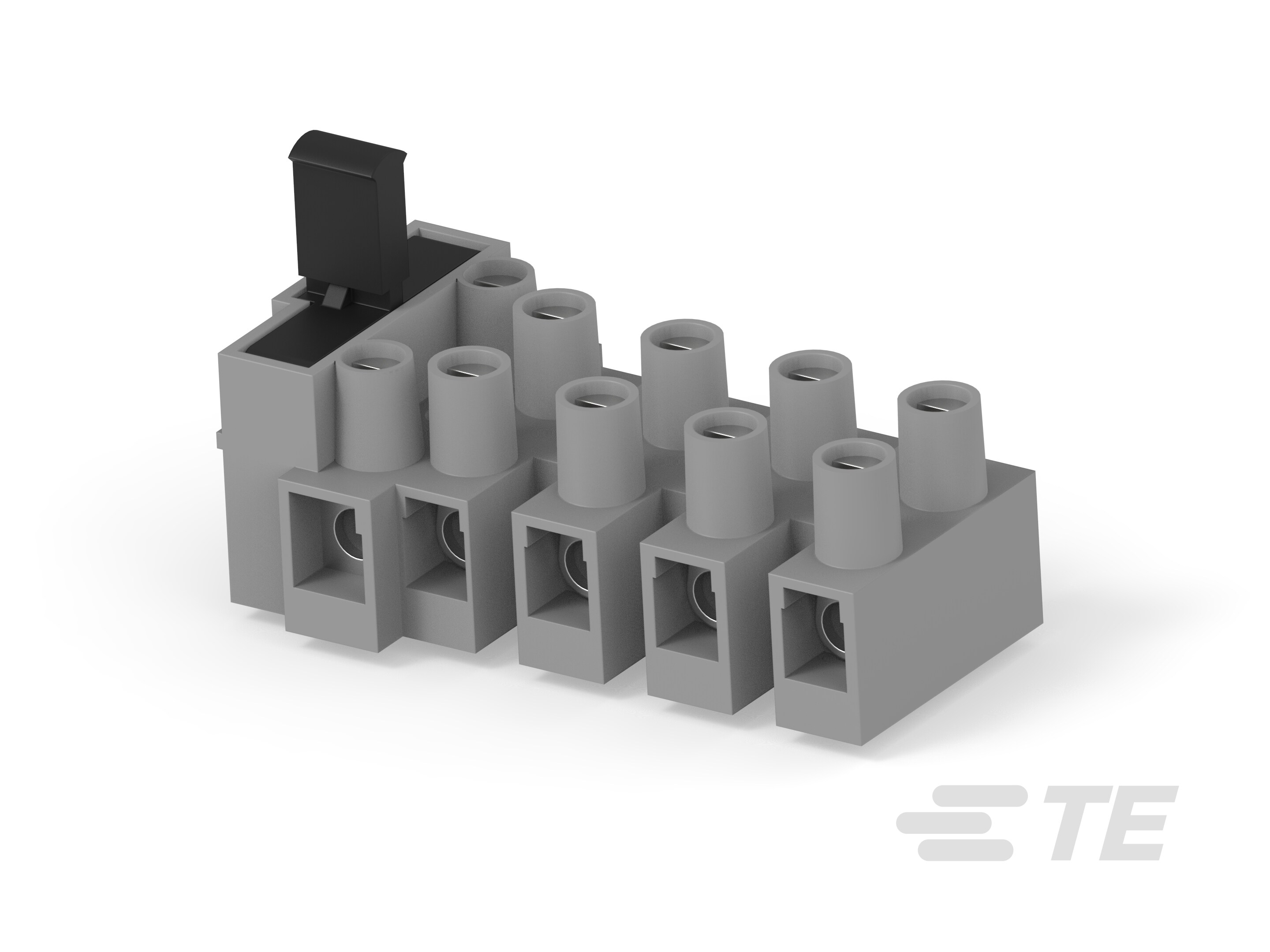

503SI05DS=EUROPA T/B,FUSE,10MM

Part	Features	Number of Rows	Barrier Type	Pitch	Voltage Rating	Number of Wire Entries	Number of Circuits	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Top Termination	Current Rating	Terminal Block Type	Bottom Termination	Color	Material - Insulation	Mounting Type	Terminal Screw Finish	Terminal Screw Material	Operating Temperature (Max)	Operating Temperature (Min)
TE Connectivity AMP Connectors 1-1776301-0	Fuse	2	Enclosed	0.394 in	400 V	10	5	12 AWG	22 AWG	Screws	16 A	Eurostyle Terminal Strip	Closed	Gray	Nylon 6/6 PA66 Polyamide	Chassis Panel	Non-Hexavalent Chromate Zinc	Steel	100 °C	-35 °C
TE Connectivity AMP Connectors 1776301-8	Fuse	2	Enclosed	0.394 in	400 V	6	3	12 AWG	22 AWG	Screws	16 A	Eurostyle Terminal Strip	Closed	Gray	Nylon 6/6 PA66 Polyamide	Chassis Panel	Non-Hexavalent Chromate Zinc	Steel	100 °C	-35 °C
TE Connectivity AMP Connectors 1776301-4	Fuse	2	Enclosed	0.394 in	400 V	8	4	12 AWG	22 AWG	Screws	16 A	Eurostyle Terminal Strip	Closed	Gray	Nylon 6/6 PA66 Polyamide	Chassis Panel	Non-Hexavalent Chromate Zinc	Steel	100 °C	-35 °C
TE Connectivity AMP Connectors 2-1776301-3	Fuse	2	Enclosed	0.394 in	400 V	6	3	12 AWG	22 AWG	Screws	16 A	Eurostyle Terminal Strip	Closed	Gray	Nylon 6/6 PA66 Polyamide	Chassis Panel	Non-Hexavalent Chromate Zinc	Steel	100 °C	-35 °C
TE Connectivity AMP Connectors 1776301-6	Fuse	2	Enclosed		400 V	2	1	12 AWG	22 AWG	Screws	16 A	Eurostyle Terminal Strip	Closed	Gray	Nylon 6/6 PA66 Polyamide	Chassis Panel	Non-Hexavalent Chromate Zinc	Steel	100 °C	-35 °C
