019085 Series

Manufacturer: Molex

Catalog

CONN RING CIRC 14-18AWG #10

Part	Stud/Tab Size	Contact Material	Insulation	Termination	Thickness	Width - Outer Edges	Terminal Type	Mounting Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Length - Overall	Contact Finish	Wire Gauge
Molex 0190850009	10 Stud	Steel	Non-Insulated	Crimp	0.023 in	0.385 in	Circular	Free Hanging (In-Line)	18 AWG	14 AWG	0.949 in	Tin
Molex 0190850004	6 Stud	Brass	Non-Insulated	Crimp	0.023 in	0.385 in	Circular	Free Hanging (In-Line)	18 AWG	14 AWG	0.949 in	Tin
Molex 0190850008	8 Stud	Steel	Non-Insulated	Crimp	0.023 in	0.385 in	Circular	Free Hanging (In-Line)	18 AWG	14 AWG	0.949 in	Tin

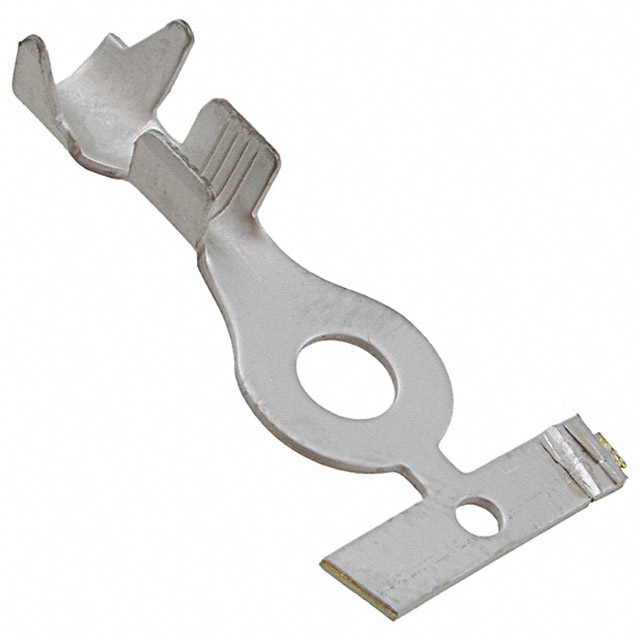

Molex 0190850005	8 Stud	Brass	Non-Insulated	Crimp	0.023 in	0.385 in	Circular	Free Hanging (In-Line)	18 AWG	14 AWG	0.949 in	Tin
Molex 0190850006	10 Stud	Brass	Non-Insulated	Crimp	0.023 in	0.385 in	Circular	Free Hanging (In-Line)	18 AWG	14 AWG	0.949 in	Tin
Molex 0190850003	10 Stud	Brass	Non-Insulated	Crimp	0.023 in	0.385 in	Circular	Free Hanging (In-Line)			0.949 in		18 AWG
Molex 0190850007	6 Stud	Steel	Non-Insulated	Crimp	0.023 in	0.385 in	Circular	Free Hanging (In-Line)	18 AWG	14 AWG	0.949 in	Tin
