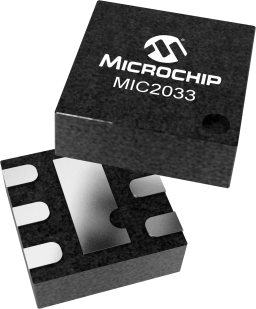

MIC2033 Series
Manufacturer: Microchip Technology
Beta
⌘K
IC PWR SWITCH P-CHAN 1:1 SOT23-6
| Part | Number of Outputs | Package / Case | Output Type | Mounting Type | Interface | Voltage - Load (Max) | Voltage - Load (Min) | Voltage - Supply (Vdd/Vcc) | Voltage - Supply (Vcc/Vdd) | Package Name | Rds On (Typ) | Output Configuration | Input Type | Switch Type | Output Ratio | Input Ratio | Current - Output (Max) | Fault Protection | Features | Operating Temperature (Max) | Operating Temperature (Min) | Package Length | Package Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | 1 | SOT-23-6 | P-Channel | Surface Mount | On/Off | 5.5 V | 2.5 V | Not Required | Not Required | SOT-23-6 | 75 mOhm | High Side | Non-Inverting | General Purpose | 1 | 1 | 800 mA | Current Limiting (Fixed) Over Temperature UVRO | Slew Rate Controlled Status Flag | 125 °C | -40 °C | ||
 Microchip Technology | 1 | 6-UFDFN Exposed Pad | P-Channel | Surface Mount | On/Off | 5.5 V | 2.5 V | Not Required | Not Required | 6-TDFN | 75 mOhm | High Side | Non-Inverting | General Purpose | 1 | 1 | 1.2 A | Current Limiting (Fixed) Over Temperature UVRO | Slew Rate Controlled Status Flag | 125 °C | -40 °C | 2 mm | 2 mm |
Microchip Technology | 1 | SOT-23-6 | P-Channel | Surface Mount | On/Off | 5.5 V | 2.5 V | Not Required | Not Required | SOT-23-6 | 75 mOhm | High Side | Non-Inverting | General Purpose | 1 | 1 | 1.2 A | Current Limiting (Fixed) Over Temperature UVRO | Slew Rate Controlled Status Flag | 125 °C | -40 °C | ||
Microchip Technology | 1 | SOT-23-6 | P-Channel | Surface Mount | On/Off | 5.5 V | 2.5 V | Not Required | Not Required | SOT-23-6 | 75 mOhm | High Side | Non-Inverting | General Purpose | 1 | 1 | 1 A | Current Limiting (Fixed) Over Temperature UVRO | Slew Rate Controlled Status Flag | 125 °C | -40 °C | ||
Microchip Technology | 1 | SOT-23-6 | P-Channel | Surface Mount | On/Off | 5.5 V | 2.5 V | Not Required | Not Required | SOT-23-6 | 75 mOhm | High Side | Non-Inverting | General Purpose | 1 | 1 | 800 mA | Current Limiting (Fixed) Over Temperature UVRO | Slew Rate Controlled Status Flag | 125 °C | -40 °C | ||
 Microchip Technology | 1 | 6-UFDFN Exposed Pad | P-Channel | Surface Mount | On/Off | 5.5 V | 2.5 V | Not Required | Not Required | 6-TDFN | 75 mOhm | High Side | Non-Inverting | General Purpose | 1 | 1 | 1 A | Current Limiting (Fixed) Over Temperature UVRO | Slew Rate Controlled Status Flag | 125 °C | -40 °C | 2 mm | 2 mm |
 Microchip Technology | 1 | 6-UFDFN Exposed Pad | P-Channel | Surface Mount | On/Off | 5.5 V | 2.5 V | Not Required | Not Required | 6-TDFN | 75 mOhm | High Side | Non-Inverting | General Purpose | 1 | 1 | 1 A | Current Limiting (Fixed) Over Temperature UVRO | Slew Rate Controlled Status Flag | 125 °C | -40 °C | 2 mm | 2 mm |
Microchip Technology | 1 | 6-UFDFN Exposed Pad | P-Channel | Surface Mount | On/Off | 5.5 V | 2.5 V | Not Required | Not Required | 6-TDFN | 75 mOhm | High Side | Non-Inverting | General Purpose | 1 | 1 | 800 mA | Current Limiting (Fixed) Over Temperature UVRO | Slew Rate Controlled Status Flag | 125 °C | -40 °C | 2 mm | 2 mm |
Microchip Technology | 1 | 6-UFDFN Exposed Pad | P-Channel | Surface Mount | On/Off | 5.5 V | 2.5 V | Not Required | Not Required | 6-TDFN | 75 mOhm | High Side | Non-Inverting | General Purpose | 1 | 1 | 1.2 A | Current Limiting (Fixed) Over Temperature UVRO | Slew Rate Controlled Status Flag | 125 °C | -40 °C | 2 mm | 2 mm |
Microchip Technology | 1 | SOT-23-6 | P-Channel | Surface Mount | On/Off | 5.5 V | 2.5 V | Not Required | Not Required | SOT-23-6 | 75 mOhm | High Side | Non-Inverting | General Purpose | 1 | 1 | 1 A | Current Limiting (Fixed) Over Temperature UVRO | Slew Rate Controlled Status Flag | 125 °C | -40 °C |
