796640 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN EUROSTYLE BLOCK F 9 POS 5MM SCREW RA CABLE MOUNT 15A/CONTACT BOX

Part	Number of Levels	Torque - Screw	Torque - Screw	Wire Strip Length [Max]	Wire Strip Length [Min]	Insulation Height	Insulation Height	Contact Mating Finish	Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Number of Positions	Contact Material	Material Flammability Rating	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Color	Screw Size	Features	Pitch [x]	Pitch [x]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - UL	Termination Style	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
TE Connectivity Raychem Cable Protection 796640-9	1	0.79 Nm	7 Lb-In	7.5 mm	6 mm	0.61 in	15.49 mm	Tin	Plug Female Sockets	Free Hanging (In-Line)	-40 °C	110 °C	9	9	Phosphor Bronze	UL94 V-0	0.05 mm²	3 mm²	Green	M3	Retention Latches (Non-Wire Side) Side Stacking	5 mm	0.197 in	30 AWG	12 AWG	300 V	Screw - Rising Cage Clamp

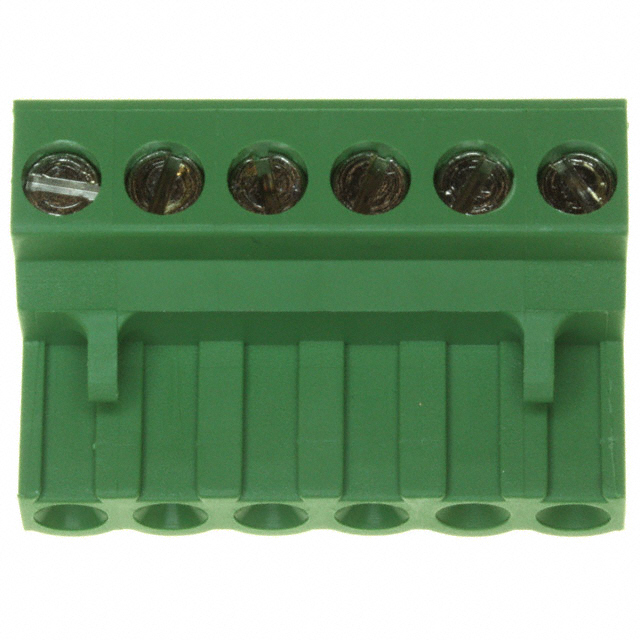

TE Connectivity Raychem Cable Protection 796640-6	1	0.79 Nm	7 Lb-In	7.5 mm	6 mm	0.61 in	15.49 mm	Tin	Plug Female Sockets	Free Hanging (In-Line)	-40 °C	110 °C	6	6	Phosphor Bronze	UL94 V-0	0.05 mm²	3 mm²	Green	M3	Retention Latches (Non-Wire Side) Side Stacking	5 mm	0.197 in	30 AWG	12 AWG	300 V	Screw - Rising Cage Clamp
TE Connectivity Raychem Cable Protection 796640-2	1	0.79 Nm	7 Lb-In	7.5 mm	6 mm	0.61 in	15.49 mm	Tin	Plug Female Sockets	Free Hanging (In-Line)	-40 °C	110 °C	2	2	Phosphor Bronze	UL94 V-0			Green	M3	Retention Latches (Non-Wire Side) Side Stacking	5 mm	0.197 in	30 AWG	12 AWG	300 V	Screw - Rising Cage Clamp	3 mm˛	0.05 mm˛
TE Connectivity Raychem Cable Protection 1-796640-3	1	0.79 Nm	7 Lb-In	7.5 mm	6 mm	0.61 in	15.49 mm	Tin	Plug Female Sockets	Free Hanging (In-Line)	-40 °C	110 °C	13	13	Phosphor Bronze	UL94 V-0	0.05 mm²	3 mm²	Green	M3	Retention Latches (Non-Wire Side) Side Stacking	5 mm	0.197 in	30 AWG	12 AWG	300 V	Screw - Rising Cage Clamp
TE Connectivity Raychem Cable Protection 6-796640-4	1	0.79 Nm	7 Lb-In	7.5 mm	6 mm	0.61 in	15.49 mm	Tin	Plug Female Sockets	Free Hanging (In-Line)	-40 °C	110 °C	14	14	Phosphor Bronze	UL94 V-0	0.05 mm²	3 mm²	Green	M3	Positions Stamped Retention Latches (Non-Wire Side) Side Stacking	5 mm	0.197 in	30 AWG	12 AWG	300 V	Screw - Rising Cage Clamp
TE Connectivity Raychem Cable Protection 1-796640-4	1	0.79 Nm	7 Lb-In	7.5 mm	6 mm	0.61 in	15.49 mm	Tin	Plug Female Sockets	Free Hanging (In-Line)	-40 °C	110 °C	14	14	Phosphor Bronze	UL94 V-0	0.05 mm²	3 mm²	Green	M3	Retention Latches (Non-Wire Side) Side Stacking	5 mm	0.197 in	30 AWG	12 AWG	300 V	Screw - Rising Cage Clamp
TE Connectivity Raychem Cable Protection 1-796640-2	1	0.79 Nm	7 Lb-In	7.5 mm	6 mm	0.61 in	15.49 mm	Tin	Plug Female Sockets	Free Hanging (In-Line)	-40 °C	110 °C	12	12	Phosphor Bronze	UL94 V-0			Green	M3	Retention Latches (Non-Wire Side) Side Stacking	5 mm	0.197 in	30 AWG	12 AWG	300 V	Screw - Rising Cage Clamp	3 mm˛	0.05 mm˛
TE Connectivity Raychem Cable Protection 4-796640-7	1	0.79 Nm	7 Lb-In	7.5 mm	6 mm	0.61 in	15.49 mm	Tin	Plug Female Sockets	Free Hanging (In-Line)	-40 °C	110 °C	14	14	Phosphor Bronze	UL94 V-0	0.05 mm²	3 mm²	Green	M3	Positions Stamped Retention Latches (Non-Wire Side) Side Stacking	5 mm	0.197 in	30 AWG	12 AWG	300 V	Screw - Rising Cage Clamp
TE Connectivity Raychem Cable Protection 5-796640-8	1	0.79 Nm	7 Lb-In	7.5 mm	6 mm	0.61 in	15.49 mm	Tin	Plug Female Sockets	Free Hanging (In-Line)	-40 °C	110 °C	2	2	Phosphor Bronze	UL94 V-0			Green	M3	Positions Stamped Retention Latches (Non-Wire Side) Side Stacking	5 mm	0.197 in	30 AWG	12 AWG	300 V	Screw - Rising Cage Clamp	3 mm˛	0.05 mm˛
TE Connectivity Raychem Cable Protection 3-796640-4	1	0.79 Nm	7 Lb-In	7.5 mm	6 mm	0.61 in	15.49 mm	Tin	Plug Female Sockets	Free Hanging (In-Line)	-40 °C	110 °C	10	10	Phosphor Bronze	UL94 V-0	0.05 mm²	3 mm²	Green	M3	Positions Stamped Retention Latches (Non-Wire Side) Side Stacking	5 mm	0.197 in	30 AWG	12 AWG	300 V	Screw - Rising Cage Clamp
