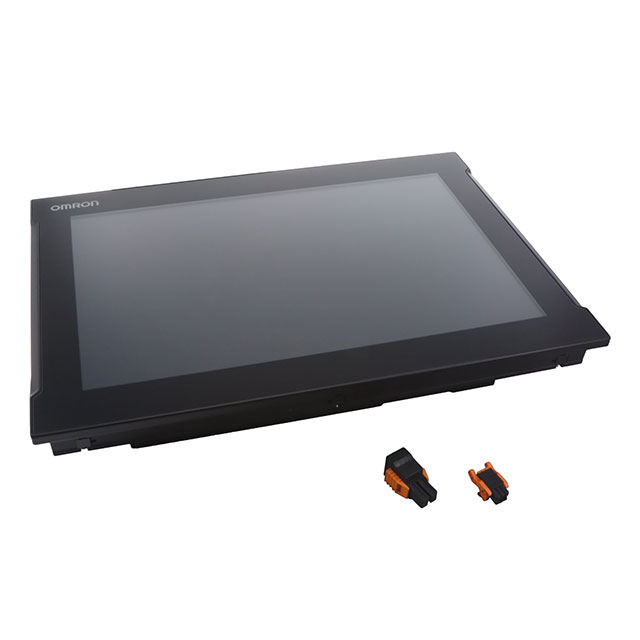

NYP2C Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
PNL12 CEL7G 8G W10 256GSS S
| Part | Type | Display Size | Display Type | Approval Agency | Ingress Protection IP Rating | Ingress Protection Description | Operating Temperature (Min) | Operating Temperature (Max) | Storage Capacity | Storage Type | Core Processor | Voltage - Supply | Memory Max Capacity | Memory Type | Operating System | Mounting Type | Memory Capacity (Installed) | Expansion Type | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Core Processor Frequency | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | Panel PC | 12.1 in | Touchscreen | cULus EAC KC | IP65 | Dust Tight Water Resistant | 0 °C | 55 °C | 256 GB | SSD | Intel® Celeron® 3965U | 24 VDC | 8 GB | DDR4 | Windows 10 | Panel Mount | ||||||
 Omron Automation and Safety | Panel PC | 19 in | Touchscreen | IP65 | Dust Tight Water Resistant | 0 °C | 55 °C | Intel® Celeron® 3965U | DDR4 | Panel Mount | 4 GB | PCIe | 28.8 VDC | 20.4 V | ||||||||
 Omron Automation and Safety | Panel PC | 12.1 in | Touchscreen | cULus EAC KC RCM | IP65 | Dust Tight Water Resistant | 0 °C | 55 °C | 320 GB | HDD | Intel® Celeron® 3965U | 24 VDC | DDR4 | Windows 10 | Panel or VESA Mount | 4 GB | PCIe | 2.2 GHz | Micro SD Card Slot | |||
 Omron Automation and Safety | Panel PC | 12.1 in | Touchscreen | IP65 | Dust Tight Water Resistant | 0 °C | 55 °C | Intel® Celeron® 3965U | DDR4 | Panel Mount | 8 GB | PCIe | 28.8 VDC | 20.4 V | ||||||||
Omron Automation and Safety | Panel PC | 12.1 in | Touchscreen | IP65 | Dust Tight Water Resistant | 0 °C | 55 °C | Cfast | Intel® Celeron® 3965U | DDR4 | Windows 10 | Panel Mount | 8 GB | PCIe | 28.8 VDC | 20.4 V | ||||||
 Omron Automation and Safety | ||||||||||||||||||||||
Omron Automation and Safety | Panel PC | 12.1 in | Touchscreen | cULus EAC KC RCM | IP65 | Dust Tight Water Resistant | 0 °C | 55 °C | Intel® Celeron® 3965U | 24 VDC | DDR4 | Operating System | Panel or VESA Mount | 8 GB | PCIe | 2.2 GHz | Micro SD Card Slot | |||||
Omron Automation and Safety | ||||||||||||||||||||||
 Omron Automation and Safety | Panel PC | 15.4 in | Touchscreen | cULus EAC KC | IP65 | Dust Tight Water Resistant | 0 °C | 55 °C | 256 GB | SSD | Intel® Celeron® 3965U | 24 VDC | 8 GB | DDR4 | Windows 10 | Panel Mount | ||||||
 Omron Automation and Safety | Panel PC | 15.4 in | Touchscreen | cULus EAC KC RCM | IP65 | Dust Tight Water Resistant | 0 °C | 55 °C | 128 GB | SSD | Intel® Celeron® 3965U | 24 VDC | DDR4 | Windows 10 | Panel or VESA Mount | 4 GB | PCIe | 2.2 GHz | Micro SD Card Slot |
