MCP665 Series

60 MHz, 32 V/µs Rail-to-Rail Output Op Amp

Catalog

60 MHz, 32 V/µs Rail-to-Rail Output Op Amp

Part	Current - Supply	Slew Rate	Current - Output / Channel	Current - Input Bias	Voltage - Input Offset	Package / Case	Output Type	Mounting Type	Amplifier Type	Voltage - Supply Span (Min)	Number of Circuits	Operating Temperature (Max)	Operating Temperature (Min)	Gain Bandwidth Product	Voltage - Supply Span (Max)	Package Length	Package Name	Package Width

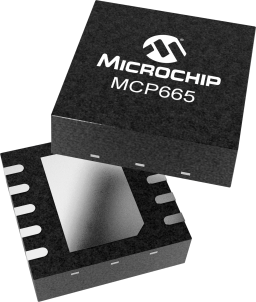

Microchip Technology MCP665T-E/MF	6 mA	32 V/µs	90 mA	6 pA	1.8 mV	10-VFDFN Exposed Pad	Rail-to-Rail	Surface Mount	General Purpose	2.5 V	2	125 °C	-40 °C	60 MHz	5.5 V	3 mm	10-DFN	3 mm

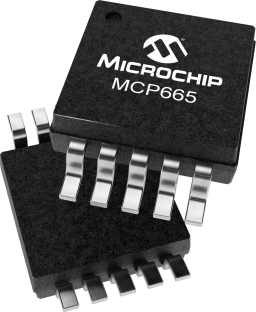

Microchip Technology MCP665T-E/UN	6 mA	32 V/µs	90 mA	6 pA	1.8 mV		Rail-to-Rail	Surface Mount	General Purpose	2.5 V	2	125 °C	-40 °C	60 MHz	5.5 V	0.118 in	10-MSOP 10-TFSOP	3 mm
Microchip Technology MCP665-E/UN	6 mA	32 V/µs	90 mA	6 pA	1.8 mV		Rail-to-Rail	Surface Mount	General Purpose	2.5 V	2	125 °C	-40 °C	60 MHz	5.5 V	0.118 in	10-MSOP 10-TFSOP	3 mm

Catalog

60 MHz, 32 V/µs Rail-to-Rail Output Op Amp

Description

The MCP661/2/3/5 family of operational amplifiers features high gain bandwidth product, and high output short circuit current. Select devices also offer a Chip Select pin that supports a low power mode of operation. These amplifiers are optimized for high speed, low noise and distortion, single-supply operation with rail-to-rail output and an input that includes the negative rail.
