MMDS-015 Series
Manufacturer: Omnetics
Beta
⌘K

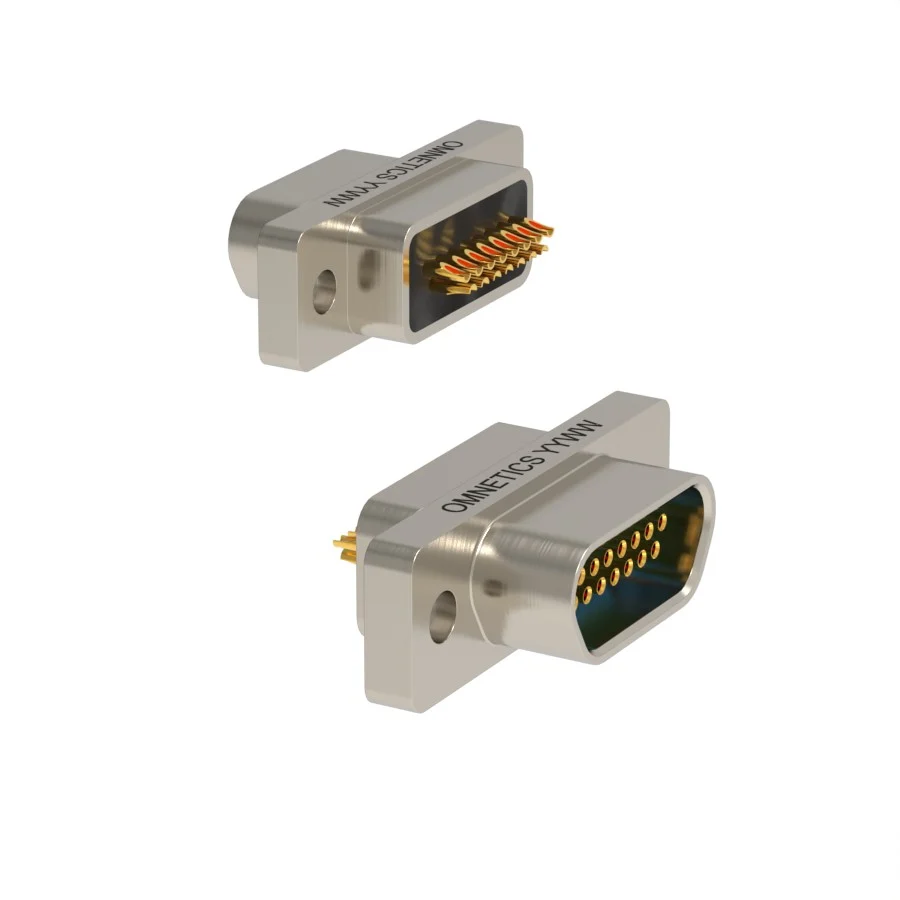

CONN MICRO-D RCPT 15POS SLDR CUP
| Part | Shell Material | Finish | Contact Finish | Connector Style | Connector Type | Flange Feature | Primary Material | Shell Material, Finish | Number of Rows | Contact Finish Thickness | Termination | Connector Layout Pitch | Connector Layout Row to Row | Mounting Type | Number of Positions | Contact Type | Current Rating (Per Contact) | Operating Temperature (Max) | Operating Temperature (Min) | Contact Form | Contact Material | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | Aluminum | Electroless Nickel | Gold | D-Type Micro-D | Female Sockets Receptacle | Housing Shell (Unthreaded) | Metal | Aluminum Electroless Nickel Plated | 2 | 50 µin | Solder Cup | 0.05 | 0.05 | Free Hanging (In-Line) | 15 | Signal | 3 A | 125 °C | -55 °C | Stamped | Copper Alloy | Thermoplastic |
