MCU 8-BIT PIC12 PIC RISC 1.75KB FLASH 2.5V/3.3V/5V 8-PIN DFN EP TUBE

Part	Core Size (Bit Width)	Number of I/O	Package / Case	Package Width	Package Name	Package Length	Operating Temperature (Max)	Operating Temperature (Min)	Speed	Peripherals	Oscillator Type	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Core Processor	Program Memory Width	Program Memory Depth	Program Memory Size	Program Memory Type	Mounting Type	RAM Size Depth	RAM Size Width

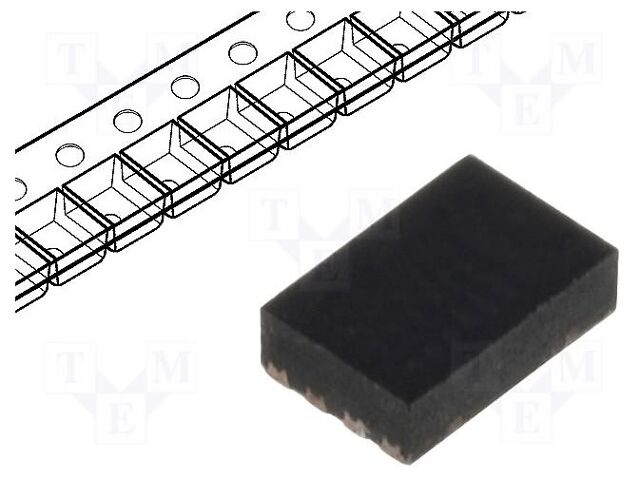

Microchip Technology PIC12F609-I/MD	8 Bit	5	8-VDFN Exposed Pad	4 mm	8-DFN	4 mm	85 °C	-40 °C	20 MHz	Brown-out Detect POR PWM Reset WDT	Internal	5.5 V	2 V	PIC	14	1 K	1.75 KB	FLASH	Surface Mount	64	8 bit

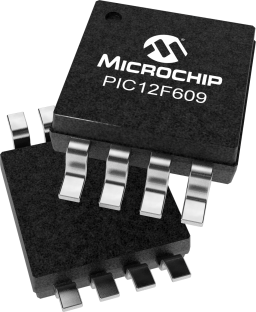

Microchip Technology PIC12F609-I/MS	8 Bit	5		3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	85 °C	-40 °C	20 MHz	Brown-out Detect POR PWM Reset WDT	Internal	5.5 V	2 V	PIC	14	1 K	1.75 KB	FLASH	Surface Mount	64	8 bit
Microchip Technology PIC12HV609T-I/SN	8 Bit	5		3.9 mm	8-SOIC	0.154 in	85 °C	-40 °C	20 MHz	Brown-out Detect POR PWM Reset WDT	Internal	5 V	2 V	PIC	14	1 K	1.75 KB	FLASH	Surface Mount	64	8 bit
Microchip Technology PIC12F609T-I/MS	8 Bit	5		3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	85 °C	-40 °C	20 MHz	Brown-out Detect POR PWM Reset WDT	Internal	5.5 V	2 V	PIC	14	1 K	1.75 KB	FLASH	Surface Mount	64	8 bit
Microchip Technology PIC12F609-E/P	8 Bit	5		7.62 mm	8-DIP 8-PDIP	0.3 in	125 °C	-40 °C	20 MHz	Brown-out Detect POR PWM Reset WDT	Internal	5.5 V	2 V	PIC	14	1 K	1.75 KB	FLASH	Through Hole	64	8 bit
Microchip Technology PIC12F609-I/MF	8 Bit	5	8-VDFN Exposed Pad	3 mm	8-DFN	3 mm	85 °C	-40 °C	20 MHz	Brown-out Detect POR PWM Reset WDT	Internal	5.5 V	2 V	PIC	14	1 K	1.75 KB	FLASH	Surface Mount	64	8 bit
Microchip Technology PIC12F609T-I/MD	8 Bit	5	8-VDFN Exposed Pad	4 mm	8-DFN	4 mm	85 °C	-40 °C	20 MHz	Brown-out Detect POR PWM Reset WDT	Internal	5.5 V	2 V	PIC	14	1 K	1.75 KB	FLASH	Surface Mount	64	8 bit
Microchip Technology PIC12HV609-I/MS	8 Bit	5		3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	85 °C	-40 °C	20 MHz	Brown-out Detect POR PWM Reset WDT	Internal	5 V	2 V	PIC	14	1 K	1.75 KB	FLASH	Surface Mount	64	8 bit
Microchip Technology PIC12F609-E/MD	8 Bit	5	8-VDFN Exposed Pad	4 mm	8-DFN	4 mm	125 °C	-40 °C	20 MHz	Brown-out Detect POR PWM Reset WDT	Internal	5.5 V	2 V	PIC	14	1 K	1.75 KB	FLASH	Surface Mount	64	8 bit
Microchip Technology PIC12F609-E/SN	8 Bit	5		3.9 mm	8-SOIC	0.154 in	125 °C	-40 °C	20 MHz	Brown-out Detect POR PWM Reset WDT	Internal	5.5 V	2 V	PIC	14	1 K	1.75 KB	FLASH	Surface Mount	64	8 bit
