644615 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 5POS 3.96MM

Part	Insulation Material	Contact Type	Insulation Height	Insulation Color	Number of Positions	Material Flammability Rating	Style	Contact Finish Thickness - Mating	Contact Length - Mating	Current Rating	Overall Contact Length	Connector Type	Contact Finish - Mating	Pitch - Mating	Shrouding	Contact Shape	Voltage Rating	Fastening Type	Number of Positions Loaded	Termination	Operating Temperature (Min)	Operating Temperature (Max)	Number of Rows	Mounting Type	Contact Finish - Post	Contact Length - Post	Contact Material	Features	Applications	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 3-644615-5	Glass Filled Thermoplastic	Male Pin	0.545 in	Natural	5	UL94 V-0	Board Cable/Wire	150 µin	0.45 in	Varies by Wire Gauge	0.7 in	Header	Tin	0.156 in	Shrouded - 1 Wall	Square	600 V	Friction Lock	All	Solder	-55 °C	105 °C	1	Through Hole	Tin	0.125 in	Copper Alloy	Board Guide	General Purpose Industrial	150 µin

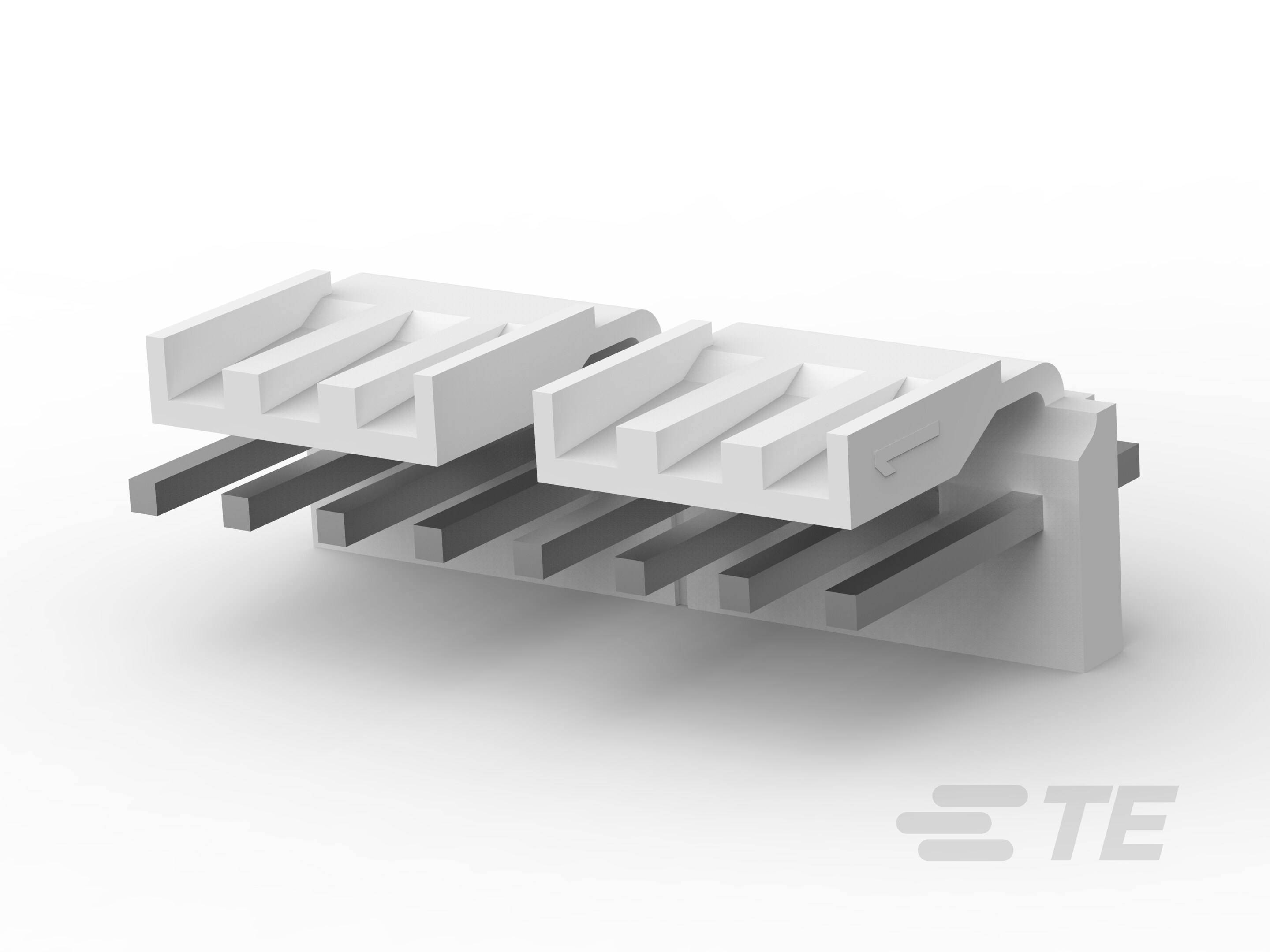

TE Connectivity AMP Connectors 3-644615-8	Glass Filled Thermoplastic	Male Pin	0.545 in	Natural	8	UL94 V-0	Board Cable/Wire	150 µin	0.45 in	Varies by Wire Gauge	0.7 in	Header	Tin	0.156 in	Shrouded - 1 Wall	Square	600 V	Friction Lock	All	Solder	-55 °C	105 °C	1	Through Hole	Tin	0.125 in	Copper Alloy	Board Guide Keying Slot	General Purpose Industrial	150 µin
TE Connectivity AMP Connectors 4-644615-8	Glass Filled Thermoplastic	Male Pin	0.545 in	Natural	18	UL94 V-0	Board Cable/Wire	150 µin	0.45 in	Varies by Wire Gauge	0.7 in	Header	Tin	0.156 in	Shrouded - 1 Wall	Square	600 V	Friction Lock	All	Solder	-55 °C	105 °C	1	Through Hole	Tin	0.125 in	Copper Alloy	Board Guide Keying Slot	General Purpose Industrial	150 µin
TE Connectivity AMP Connectors 3-644615-7	Glass Filled Thermoplastic	Male Pin	0.545 in	Natural	7	UL94 V-0	Board Cable/Wire	150 µin	0.45 in	Varies by Wire Gauge	0.7 in	Header	Tin	0.156 in	Shrouded - 1 Wall	Square	600 V	Friction Lock	All	Solder	-55 °C	105 °C	1	Through Hole	Tin	0.125 in	Copper Alloy	Board Guide Keying Slot	General Purpose Industrial	150 µin
TE Connectivity AMP Connectors 3-644615-9	Glass Filled Thermoplastic	Male Pin	0.545 in	Natural	9	UL94 V-0	Board Cable/Wire	150 µin	0.45 in	Varies by Wire Gauge	0.7 in	Header	Tin	0.156 in	Shrouded - 1 Wall	Square	600 V	Friction Lock	All	Solder	-55 °C	105 °C	1	Through Hole	Tin	0.125 in	Copper Alloy	Board Guide Keying Slot	General Purpose Industrial	150 µin
TE Connectivity AMP Connectors 3-644615-2	Glass Filled Thermoplastic	Male Pin	0.545 in	Natural	2	UL94 V-0	Board Cable/Wire	150 µin	0.45 in	Varies by Wire Gauge	0.7 in	Header	Tin	0.156 in	Shrouded - 1 Wall	Square	600 V	Friction Lock	All	Solder	-55 °C	105 °C	1	Through Hole	Tin	0.125 in	Copper Alloy	Board Guide	General Purpose Industrial	150 µin
TE Connectivity AMP Connectors 3-644615-4	Glass Filled Thermoplastic	Male Pin	0.545 in	Natural	4	UL94 V-0	Board Cable/Wire	150 µin	0.45 in	Varies by Wire Gauge	0.7 in	Header	Tin	0.156 in	Shrouded - 1 Wall	Square	600 V	Friction Lock	All	Solder	-55 °C	105 °C	1	Through Hole	Tin	0.125 in	Copper Alloy	Board Guide	General Purpose Industrial	150 µin
TE Connectivity AMP Connectors 4-644615-1	Glass Filled Thermoplastic	Male Pin	0.545 in	Natural	11	UL94 V-0	Board Cable/Wire	150 µin	0.45 in	Varies by Wire Gauge	0.7 in	Header	Tin	0.156 in	Shrouded - 1 Wall	Square	600 V	Friction Lock	All	Solder	-55 °C	105 °C	1	Through Hole	Tin	0.125 in	Copper Alloy	Board Guide Keying Slot	General Purpose Industrial	150 µin
TE Connectivity AMP Connectors 4-644615-0	Glass Filled Thermoplastic	Male Pin	0.545 in	Natural	10	UL94 V-0	Board Cable/Wire	150 µin	0.45 in	Varies by Wire Gauge	0.7 in	Header	Tin	0.156 in	Shrouded - 1 Wall	Square	600 V	Friction Lock	All	Solder	-55 °C	105 °C	1	Through Hole	Tin	0.125 in	Copper Alloy	Board Guide Keying Slot	General Purpose Industrial	150 µin

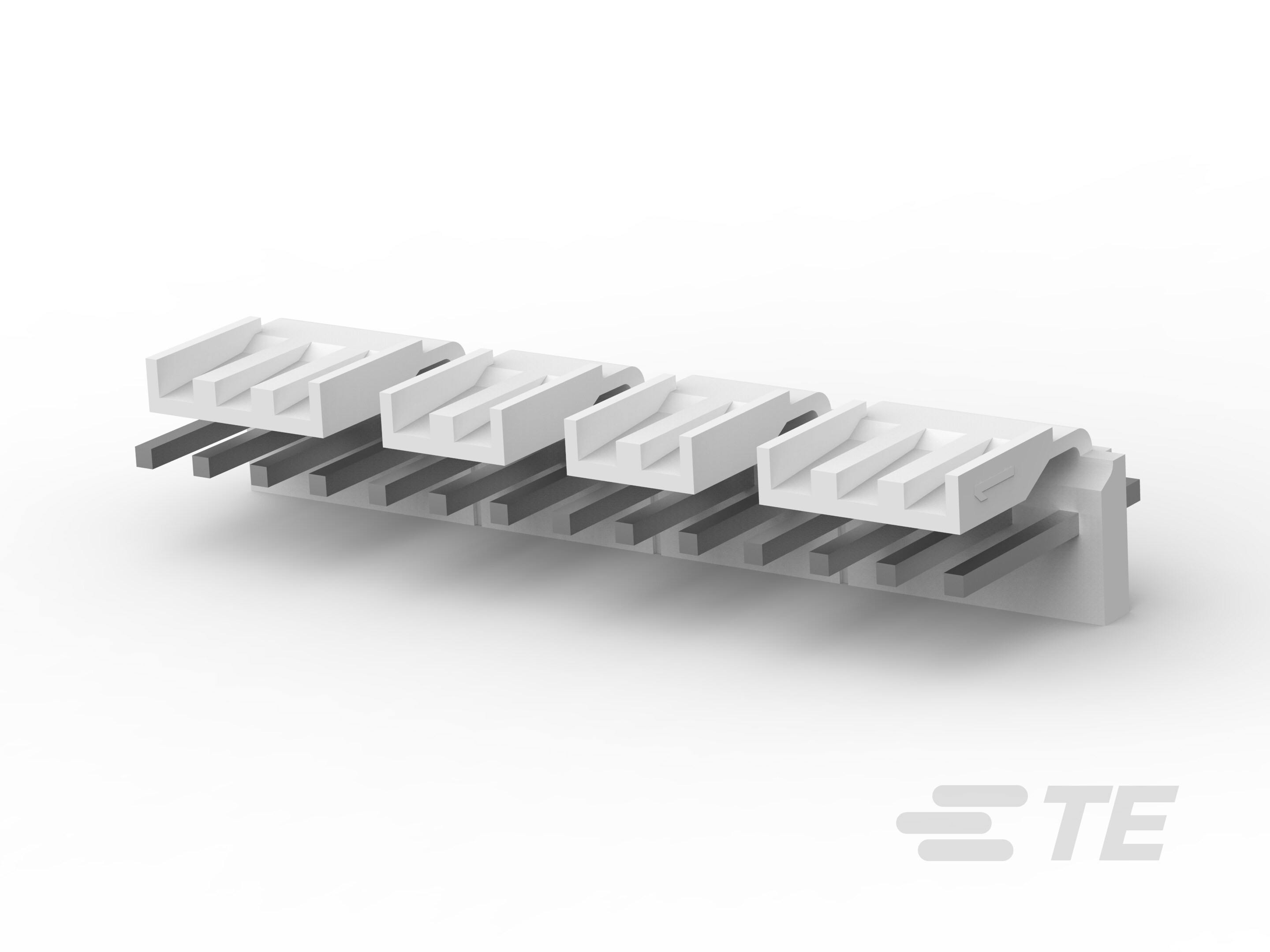

TE Connectivity AMP Connectors 4-644615-4	Glass Filled Thermoplastic	Male Pin	0.545 in	Natural	14	UL94 V-0	Board Cable/Wire	150 µin	0.45 in	Varies by Wire Gauge	0.7 in	Header	Tin	0.156 in	Shrouded - 1 Wall	Square	600 V	Friction Lock	All	Solder	-55 °C	105 °C	1	Through Hole	Tin	0.125 in	Copper Alloy	Board Guide Keying Slot	General Purpose Industrial	150 µin
