647609 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

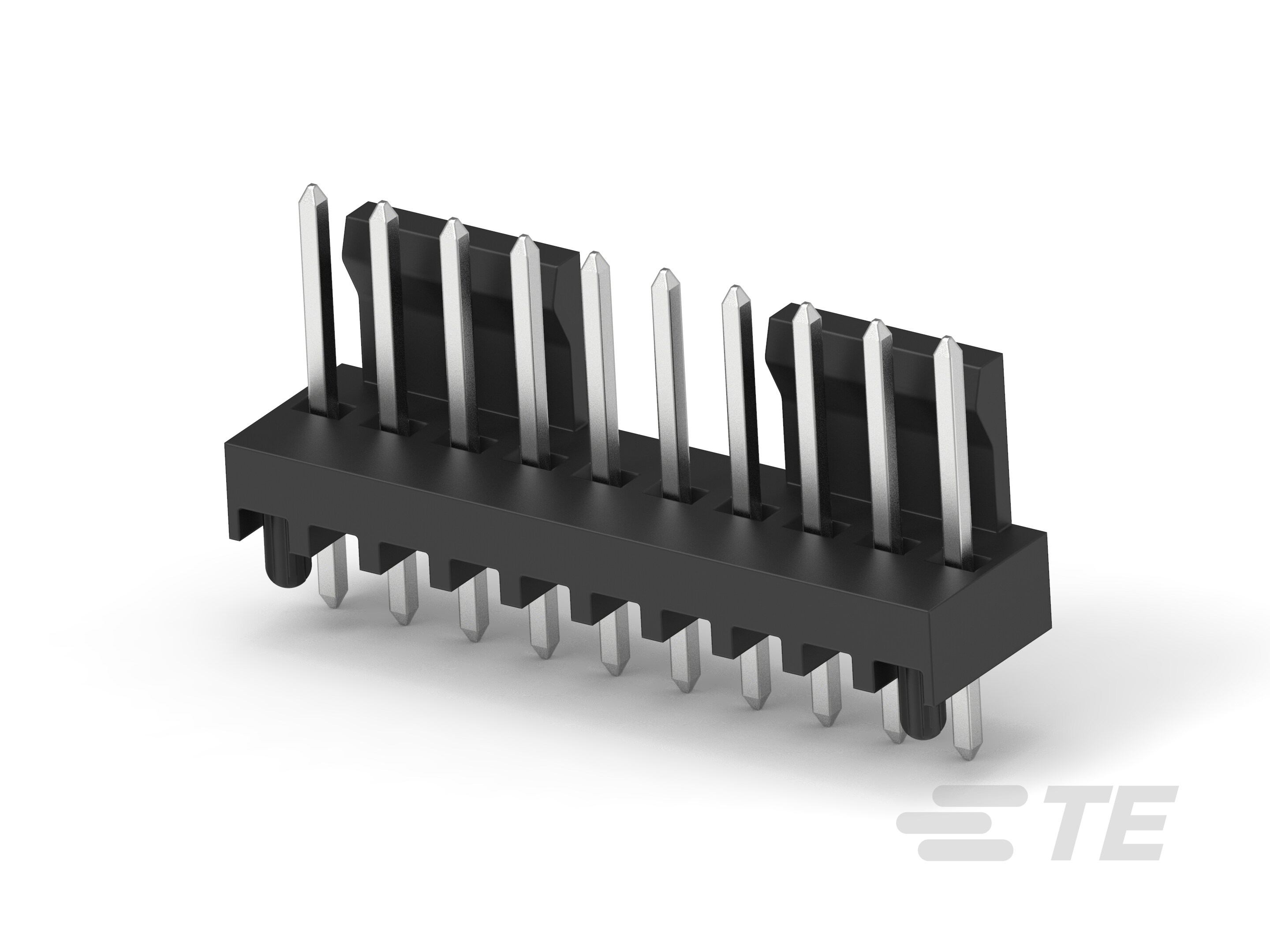

CONN HEADER VERT 10POS 2.54MM
| Part | Contact Type | Features | Contact Material | Contact Finish - Mating | Applications | Connector Type | Mounting Type | Style | Current Rating | Current Rating | Termination | Contact Length - Post | Number of Positions | Contact Length - Mating | Number of Positions Loaded | Insulation Height | Fastening Type | Insulation Material | Contact Finish - Post | Shrouding | Overall Contact Length | Operating Temperature (Min) | Operating Temperature (Max) | Insulation Color | Material Flammability Rating | Voltage Rating | Number of Rows | Contact Shape | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Male Pin | Board Guide | Copper Alloy | Tin | General Purpose | Header | Through Hole | Board Cable/Wire | 0 A | Varies by Wire Gauge | Solder | 0.135 in | 10 | 0.29 in | All | 0.347 in | Friction Lock | Glass Filled Polybutylene Terephthalate (PBT) | Tin | Shrouded - 1 Wall | 0.55 in | -55 °C | 105 °C | Black | UL94 V-0 | 250 V | 1 | Square | 0.1 in |
 TE Connectivity AMP Connectors | Male Pin | Board Guide | Copper Alloy | Tin | General Purpose | Header | Through Hole | Board Cable/Wire | 0 A | Varies by Wire Gauge | Solder | 0.135 in | 3 | 0.29 in | All | 0.347 in | Friction Lock | Glass Filled Polybutylene Terephthalate (PBT) | Tin | Shrouded - 1 Wall | 0.55 in | -55 °C | 105 °C | Black | UL94 V-0 | 250 V | 1 | Square | 0.1 in |
 TE Connectivity AMP Connectors | Male Pin | Board Guide | Copper Alloy | Tin-Lead | General Purpose | Header | Through Hole | Board Cable/Wire | 0 A | Varies by Wire Gauge | Solder | 0.135 in | 5 | 0.29 in | All | 0.347 in | Friction Lock | Glass Filled Polybutylene Terephthalate (PBT) | Tin-Lead | Shrouded - 1 Wall | 0.55 in | -55 °C | 105 °C | Black | UL94 V-0 | 250 V | 1 | Square | 0.1 in |
 TE Connectivity AMP Connectors | Male Pin | Board Guide | Copper Alloy | Tin | General Purpose | Header | Through Hole | Board Cable/Wire | 0 A | Varies by Wire Gauge | Solder | 0.135 in | 12 | 0.29 in | All | 0.347 in | Friction Lock | Glass Filled Polybutylene Terephthalate (PBT) | Tin | Shrouded - 1 Wall | 0.55 in | -55 °C | 105 °C | Black | UL94 V-0 | 250 V | 1 | Square | 0.1 in |

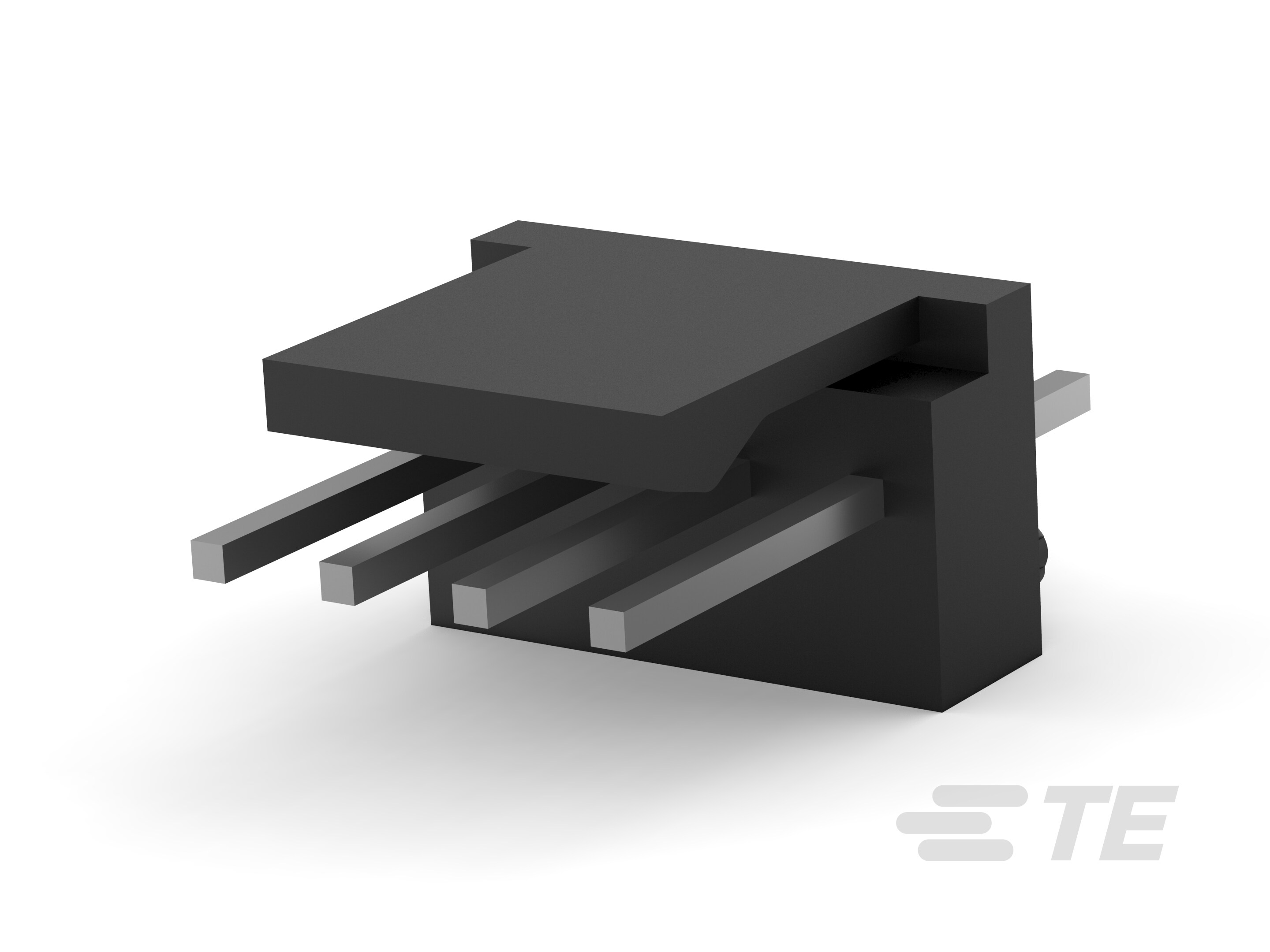

 TE Connectivity AMP Connectors | Male Pin | Board Guide | Copper Alloy | Tin | General Purpose | Header | Through Hole | Board Cable/Wire | 0 A | Varies by Wire Gauge | Solder | 0.135 in | 4 | 0.29 in | All | 0.347 in | Friction Lock | Glass Filled Polybutylene Terephthalate (PBT) | Tin | Shrouded - 1 Wall | 0.55 in | -55 °C | 105 °C | Black | UL94 V-0 | 250 V | 1 | Square | 0.1 in |
 TE Connectivity AMP Connectors | Male Pin | Board Guide | Copper Alloy | Tin-Lead | General Purpose | Header | Through Hole | Board Cable/Wire | 0 A | Varies by Wire Gauge | Solder | 0.135 in | 3 | 0.29 in | All | 0.347 in | Friction Lock | Glass Filled Polybutylene Terephthalate (PBT) | Tin-Lead | Shrouded - 1 Wall | 0.55 in | -55 °C | 105 °C | Black | UL94 V-0 | 250 V | 1 | Square | 0.1 in |
 TE Connectivity AMP Connectors | Male Pin | Board Guide | Copper Alloy | Tin-Lead | General Purpose | Header | Through Hole | Board Cable/Wire | 0 A | Varies by Wire Gauge | Solder | 0.135 in | 4 | 0.29 in | All | 0.347 in | Friction Lock | Glass Filled Polybutylene Terephthalate (PBT) | Tin-Lead | Shrouded - 1 Wall | 0.55 in | -55 °C | 105 °C | Black | UL94 V-0 | 250 V | 1 | Square | 0.1 in |
 TE Connectivity AMP Connectors | Male Pin | Board Guide | Copper Alloy | Tin | General Purpose | Header | Through Hole | Board Cable/Wire | 0 A | Varies by Wire Gauge | Solder | 0.135 in | 9 | 0.29 in | All | 0.347 in | Friction Lock | Glass Filled Polybutylene Terephthalate (PBT) | Tin | Shrouded - 1 Wall | 0.55 in | -55 °C | 105 °C | Black | UL94 V-0 | 250 V | 1 | Square | 0.1 in |
