SHF-110 Series

Catalog

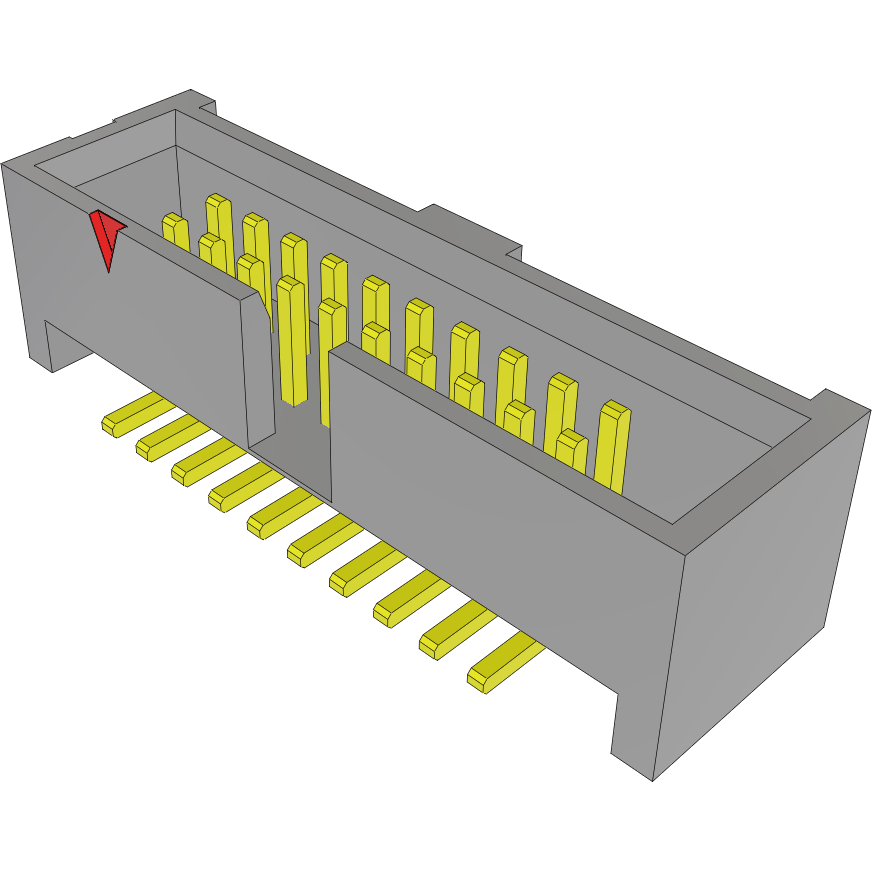

CONN SHROUDED HEADER (4 SIDES) HDR 20 POS 1.27MM SOLDER ST TOP ENTRY SMD T/R

Part	Mounting Type	Number of Rows	Number of Positions	Fastening Type	Material Flammability Rating	Insulation Material	Insulation Height	Insulation Height	Style	Contact Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Insulation Color	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Current Rating (Amps)	Contact Shape	Connector Type	Contact Finish - Post	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post
Samtec Inc. SHF-110-01-F-D-SM-TR	Surface Mount	2	20	Push-Pull	UL94 V-0	Liquid Crystal Polymer (LCP)	5.33 mm	0.21 in	Board to Cable/Wire	Male Pin	Phosphor Bronze	3 µin	0.076 µm	Keying Slot	Black	Solder	-55 °C	125 °C	Shrouded - 4 Wall	3 A	Square	Header	Tin	Gold	0.05 in	1.27 mm	0.05 in	1.27 mm	All	3.05 mm	0.12 in
Samtec Inc. SHF-110-01-L-D-TH	Through Hole	2	20	Push-Pull	UL94 V-0	Liquid Crystal Polymer (LCP)	5.33 mm	0.21 in	Board to Cable/Wire	Male Pin	Phosphor Bronze	10 çin	0.25 çm	Keying Slot	Black	Solder	-55 °C	125 °C	Shrouded - 4 Wall	3 A	Square	Header	Tin	Gold	0.05 in	1.27 mm	0.05 in	1.27 mm	All	3.05 mm	0.12 in	0.075 in	1.91 mm
Samtec Inc. SHF-110-01-F-D-SM-K-TR	Surface Mount	2	20	Push-Pull	UL94 V-0	Liquid Crystal Polymer (LCP)	5.33 mm	0.21 in	Board to Cable/Wire	Male Pin	Phosphor Bronze	3 µin	0.076 µm	Keying Slot Pick and Place	Black	Solder	-55 °C	125 °C	Shrouded - 4 Wall	3 A	Square	Header	Tin	Gold	0.05 in	1.27 mm	0.05 in	1.27 mm	All	3.05 mm	0.12 in
Samtec Inc. SHF-110-01-L-D-TH-LC	Through Hole	2	20	Push-Pull	UL94 V-0	Liquid Crystal Polymer (LCP)	5.33 mm	0.21 in	Board to Cable/Wire	Male Pin	Phosphor Bronze	10 çin	0.25 çm	Board Lock Keying Slot	Black	Solder	-55 °C	125 °C	Shrouded - 4 Wall	3 A	Square	Header	Tin	Gold	0.05 in	1.27 mm	0.05 in	1.27 mm	All	3.05 mm	0.12 in	0.075 in	1.91 mm
Samtec Inc. SHF-110-01-L-D-SM	Surface Mount	2	20	Push-Pull	UL94 V-0	Liquid Crystal Polymer (LCP)	5.33 mm	0.21 in	Board to Cable/Wire	Male Pin	Phosphor Bronze	10 çin	0.25 çm	Keying Slot	Black	Solder	-55 °C	125 °C	Shrouded - 4 Wall	3 A	Square	Header	Tin	Gold	0.05 in	1.27 mm	0.05 in	1.27 mm	All	3.05 mm	0.12 in
Samtec Inc. SHF-110-01-S-D-SM	Surface Mount	2	20	Push-Pull	UL94 V-0	Liquid Crystal Polymer (LCP)	5.33 mm	0.21 in	Board to Cable/Wire	Male Pin	Phosphor Bronze			Keying Slot	Black	Solder	-55 °C	125 °C	Shrouded - 4 Wall	3 A	Square	Header	Tin	Gold	0.05 in	1.27 mm	0.05 in	1.27 mm	All	3.05 mm	0.12 in
Samtec Inc. SHF-110-01-F-D-TH-LC	Through Hole	2	20	Push-Pull	UL94 V-0	Liquid Crystal Polymer (LCP)	5.33 mm	0.21 in	Board to Cable/Wire	Male Pin	Phosphor Bronze	3 µin	0.076 µm	Board Lock Keying Slot	Black	Solder	-55 °C	125 °C	Shrouded - 4 Wall	3 A	Square	Header	Tin	Gold	0.05 in	1.27 mm	0.05 in	1.27 mm	All	3.05 mm	0.12 in	0.075 in	1.91 mm
Samtec Inc. SHF-110-01-L-D-TH-TR	Through Hole	2	20	Push-Pull	UL94 V-0	Liquid Crystal Polymer (LCP)	5.33 mm	0.21 in	Board to Cable/Wire	Male Pin	Phosphor Bronze	10 çin	0.25 çm	Keying Slot	Black	Solder	-55 °C	125 °C	Shrouded - 4 Wall	3 A	Square	Header	Tin	Gold	0.05 in	1.27 mm	0.05 in	1.27 mm	All	3.05 mm	0.12 in	0.075 in	1.91 mm
Samtec Inc. SHF-110-01-F-D-SM	Surface Mount	2	20	Push-Pull	UL94 V-0	Liquid Crystal Polymer (LCP)	5.33 mm	0.21 in	Board to Cable/Wire	Male Pin	Phosphor Bronze	3 µin	0.076 µm	Keying Slot	Black	Solder	-55 °C	125 °C	Shrouded - 4 Wall	3 A	Square	Header	Tin	Gold	0.05 in	1.27 mm	0.05 in	1.27 mm	All	3.05 mm	0.12 in
Samtec Inc. SHF-110-01-F-D-TH	Through Hole	2	20	Push-Pull	UL94 V-0	Liquid Crystal Polymer (LCP)	5.33 mm	0.21 in	Board to Cable/Wire	Male Pin	Phosphor Bronze	3 µin	0.076 µm	Keying Slot	Black	Solder	-55 °C	125 °C	Shrouded - 4 Wall	3 A	Square	Header	Tin	Gold	0.05 in	1.27 mm	0.05 in	1.27 mm	All	3.05 mm	0.12 in	0.075 in	1.91 mm
