353293 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HEADERS & WIRE HOUSINGS MINI CT MT REC ASSY 10P BLUE

Part	Contact Finish	Color	Features	Cable Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Type	Mounting Type	Wire Type	Number of Rows	Number of Positions	Connector Type	Pitch
TE Connectivity AMP Connectors 6-353293-0	Tin	Blue	Closed End	IDC	26 AWG	28 AWG	Female Socket	Free Hanging (In-Line)	Discrete	1	10	Receptacle	0.059 in

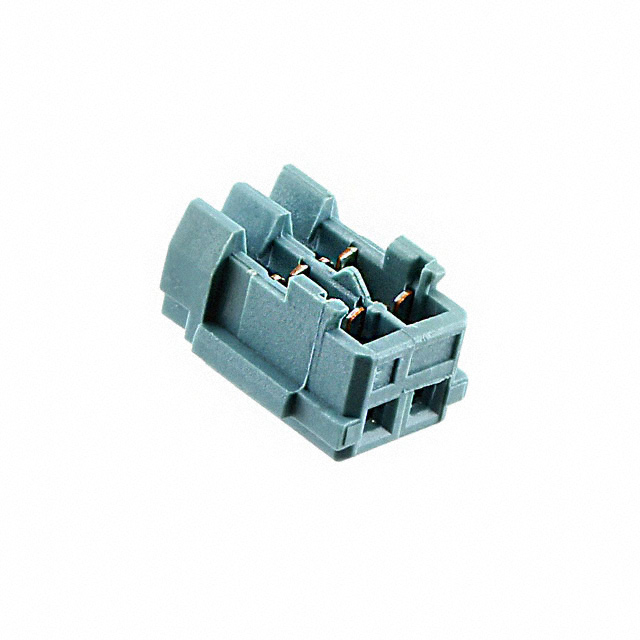

TE Connectivity AMP Connectors 5-353293-2	Tin	Blue	Closed End	IDC	26 AWG	28 AWG	Female Socket	Free Hanging (In-Line)	Discrete	1	2	Receptacle	0.059 in

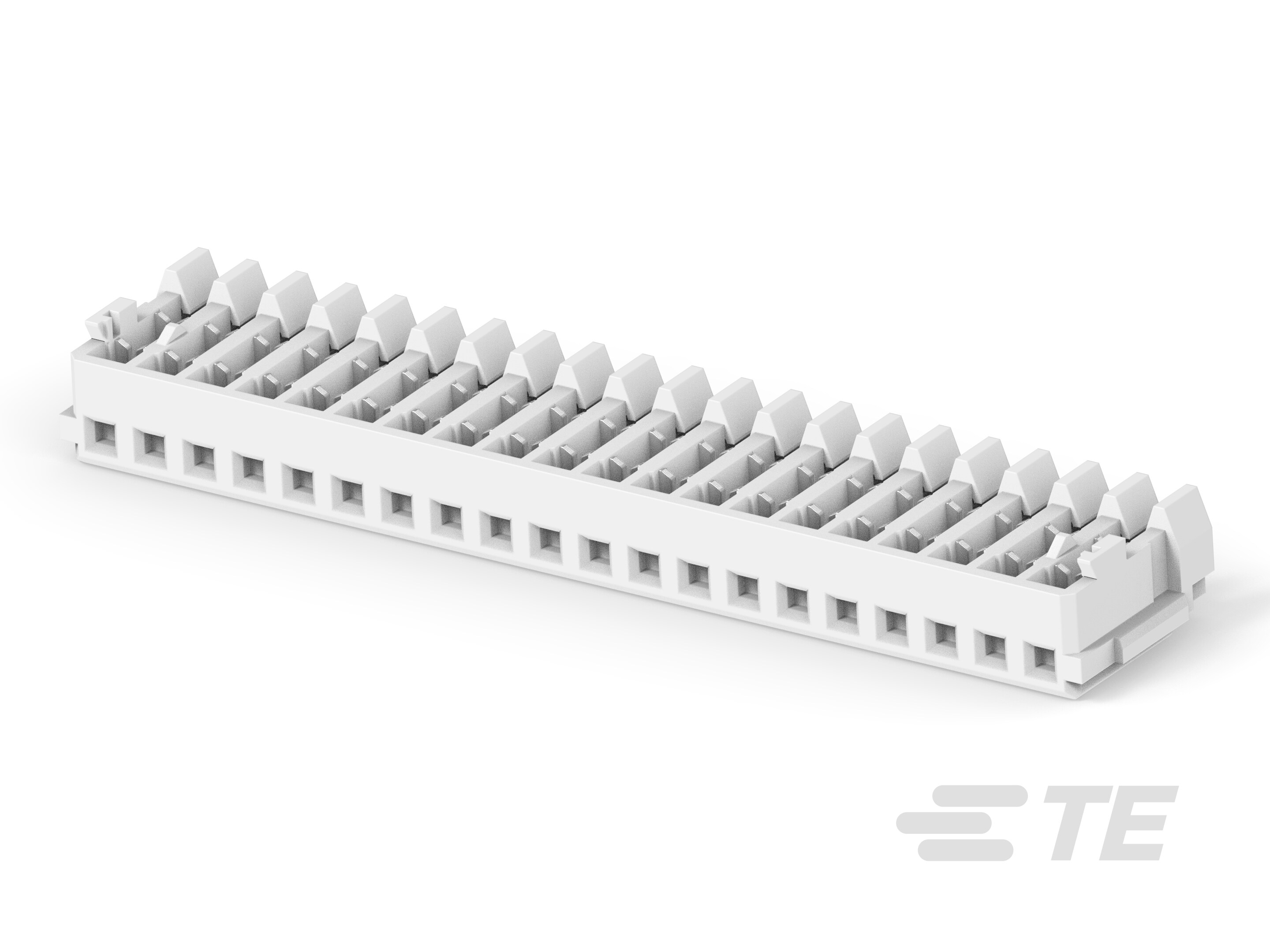

TE Connectivity AMP Connectors 2-353293-0	Tin	Gray	Closed End	IDC	26 AWG	28 AWG	Female Socket	Free Hanging (In-Line)	Discrete	1	20	Receptacle	0.059 in
TE Connectivity AMP Connectors 353293-8	Tin	Gray	Closed End	IDC	26 AWG	28 AWG	Female Socket	Free Hanging (In-Line)	Discrete	1	8	Receptacle	0.059 in

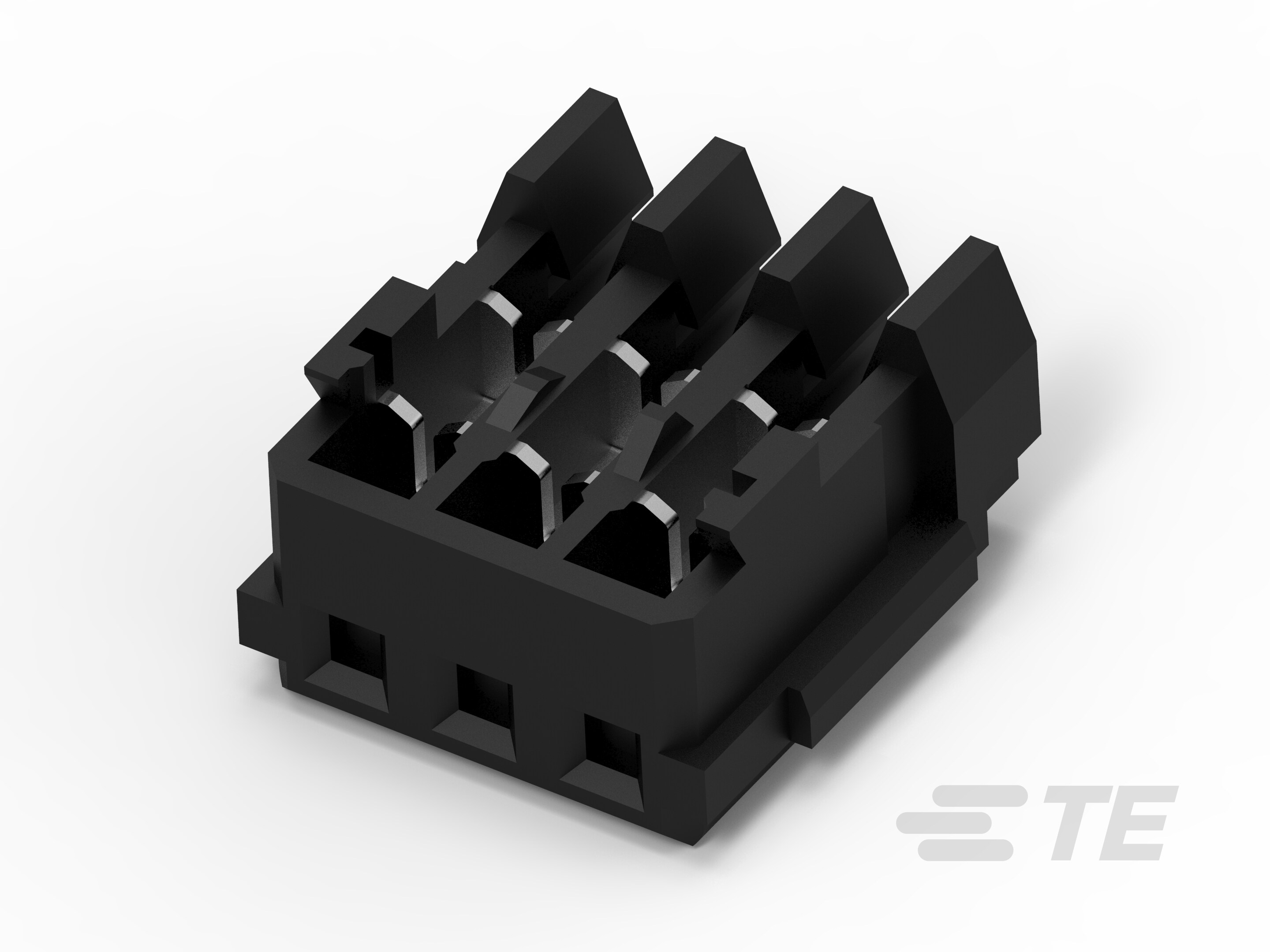

TE Connectivity AMP Connectors 2-353293-3		Black	Closed End	IDC	26 AWG	28 AWG	Female Socket	Free Hanging (In-Line)	Discrete	1		Receptacle	0.059 in
TE Connectivity AMP Connectors 353293-9	Tin	Gray	Closed End	IDC	26 AWG	28 AWG	Female Socket	Free Hanging (In-Line)	Discrete	1	9	Receptacle	0.059 in

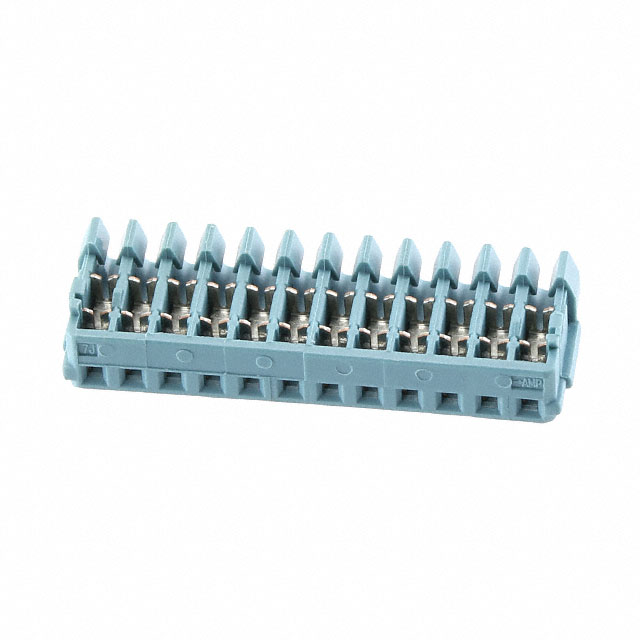

TE Connectivity AMP Connectors 6-353293-2	Tin	Blue	Closed End	IDC	26 AWG	28 AWG	Female Socket	Free Hanging (In-Line)	Discrete	1	12	Receptacle	0.059 in

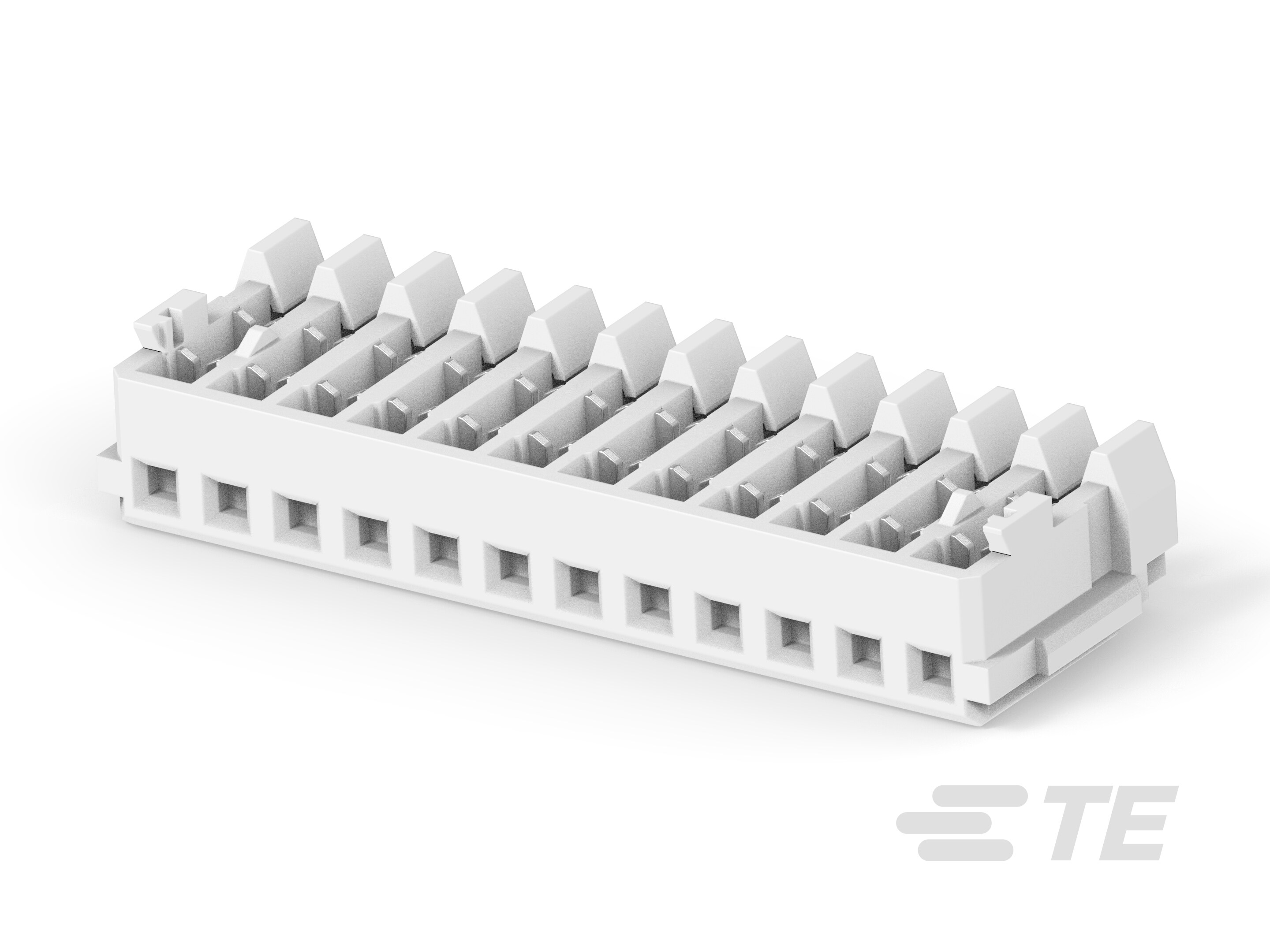

TE Connectivity AMP Connectors 1-353293-2	Tin	Gray	Closed End	IDC	26 AWG	28 AWG	Female Socket	Free Hanging (In-Line)	Discrete	1	12	Receptacle	0.059 in
TE Connectivity AMP Connectors 1-353293-3	Tin	Gray	Closed End	IDC	26 AWG	28 AWG	Female Socket	Free Hanging (In-Line)	Discrete	1	13	Receptacle	0.059 in
TE Connectivity AMP Connectors 6-353293-4	Tin	Blue	Closed End	IDC	26 AWG	28 AWG	Female Socket	Free Hanging (In-Line)	Discrete	1	14	Receptacle	0.059 in
