A1CXG Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE - AKC16G/AE16G/X

Part	Connector Type	Number of Rows	Pitch - Cable	Pitch - Cable	Number of Positions	Cable Termination	Pitch - Connector	Pitch - Connector	Features	Shielding	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Color

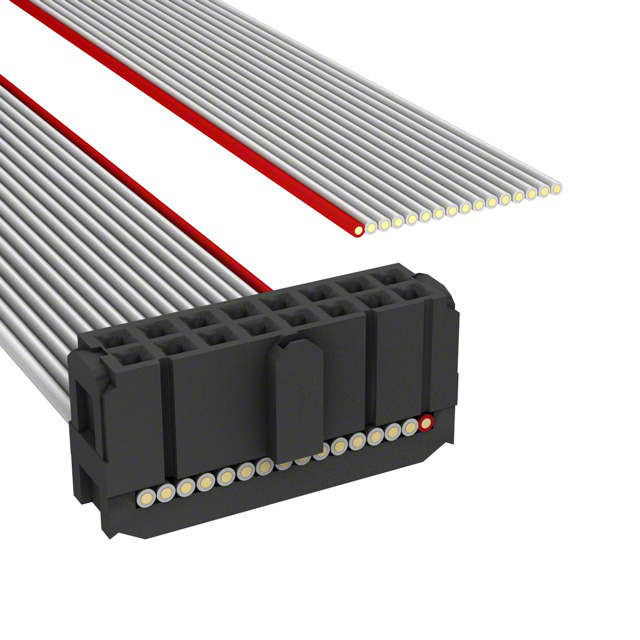

TE Connectivity Raychem Cable Protection A1CXG-1636G	Socket to Cable	2	0.05 "	1.27 mm	16	IDC	0.1 in	2.54 mm	Polarizing Key	Unshielded	3 ft	914.4 mm	15 µin	0.38 µm	Gold

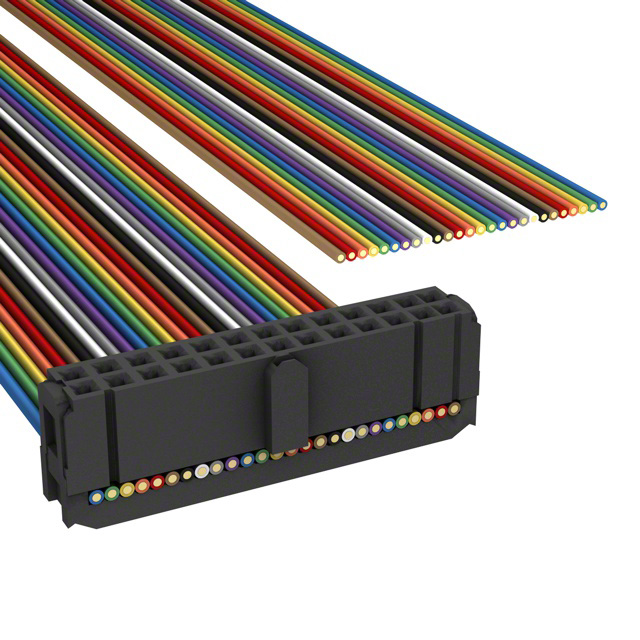

TE Connectivity Raychem Cable Protection A1CXG-2636M	Socket to Cable	2	0.05 "	1.27 mm		IDC	0.1 in	2.54 mm	Polarizing Key	Unshielded	3 ft	914.4 mm	15 µin	0.38 µm	Gold	26	Multiple Ribbon
TE Connectivity Raychem Cable Protection A1CXG-4036G	Socket to Cable	2	0.05 "	1.27 mm		IDC	0.1 in	2.54 mm	Polarizing Key	Unshielded	3 ft	914.4 mm	15 µin	0.38 µm	Gold	40
TE Connectivity Raychem Cable Protection A1CXG-6436G	Socket to Cable	2	0.05 "	1.27 mm		IDC	0.1 in	2.54 mm	Polarizing Key	Unshielded	3 ft	914.4 mm	15 µin	0.38 µm	Gold	64
TE Connectivity Raychem Cable Protection A1CXG-2036G	Socket to Cable	2	0.05 "	1.27 mm		IDC	0.1 in	2.54 mm	Polarizing Key	Unshielded	3 ft	914.4 mm	15 µin	0.38 µm	Gold	20
TE Connectivity Raychem Cable Protection A1CXG-3036G	Socket to Cable	2	0.05 "	1.27 mm		IDC	0.1 in	2.54 mm	Polarizing Key	Unshielded	3 ft	914.4 mm	15 µin	0.38 µm	Gold	30
TE Connectivity Raychem Cable Protection A1CXG-3036M	Socket to Cable	2	0.05 "	1.27 mm		IDC	0.1 in	2.54 mm	Polarizing Key	Unshielded	3 ft	914.4 mm	15 µin	0.38 µm	Gold	30	Multiple Ribbon
TE Connectivity Raychem Cable Protection A1CXG-4036M	Socket to Cable	2	0.05 "	1.27 mm		IDC	0.1 in	2.54 mm	Polarizing Key	Unshielded	3 ft	914.4 mm	15 µin	0.38 µm	Gold	40	Multiple Ribbon
TE Connectivity Raychem Cable Protection A1CXG-2636G	Socket to Cable	2	0.05 "	1.27 mm		IDC	0.1 in	2.54 mm	Polarizing Key	Unshielded	3 ft	914.4 mm	15 µin	0.38 µm	Gold	26
TE Connectivity Raychem Cable Protection A1CXG-1636M	Socket to Cable	2	0.05 "	1.27 mm	16	IDC	0.1 in	2.54 mm	Polarizing Key	Unshielded	3 ft	914.4 mm	15 µin	0.38 µm	Gold		Multiple Ribbon
